Combo memory
The die stacked combo memory module POP2 (1Gbit M3/ DDR SDRAM 512 Mbit) is assembled on the top of
RAP3GS2v4, and located at the bottom side of the main board. RAP3GS2v4 has pads on the top of it, where
POP2 is soldered.
RF description

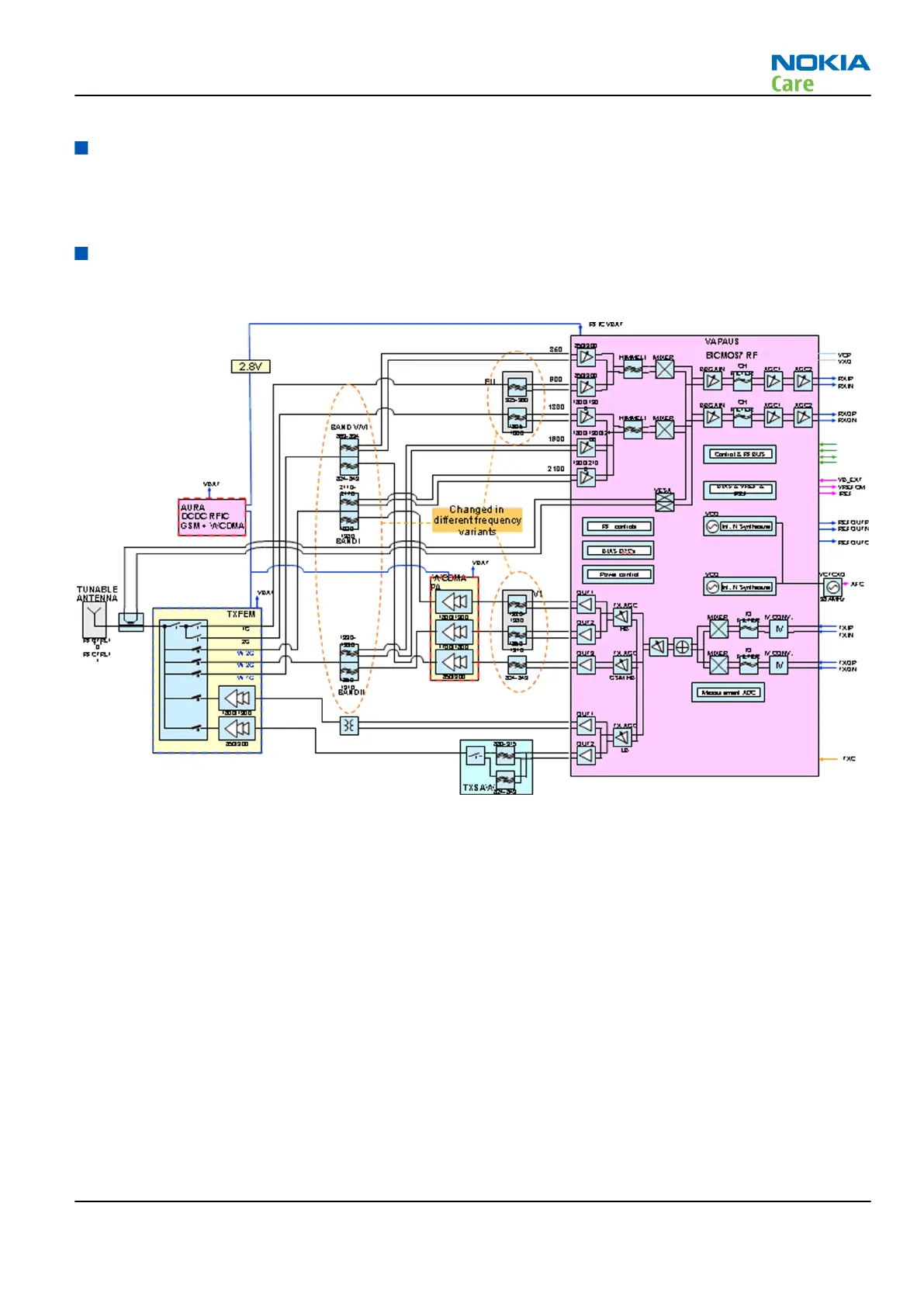

Block diagram
Figure 48 RF block diagram RM-598 using RF ASIC N7500
RM-598; RM-604
System Module
Issue 1 COMPANY CONFIDENTIAL Page 5 –23
Copyright © 2009 Nokia. All rights reserved.
