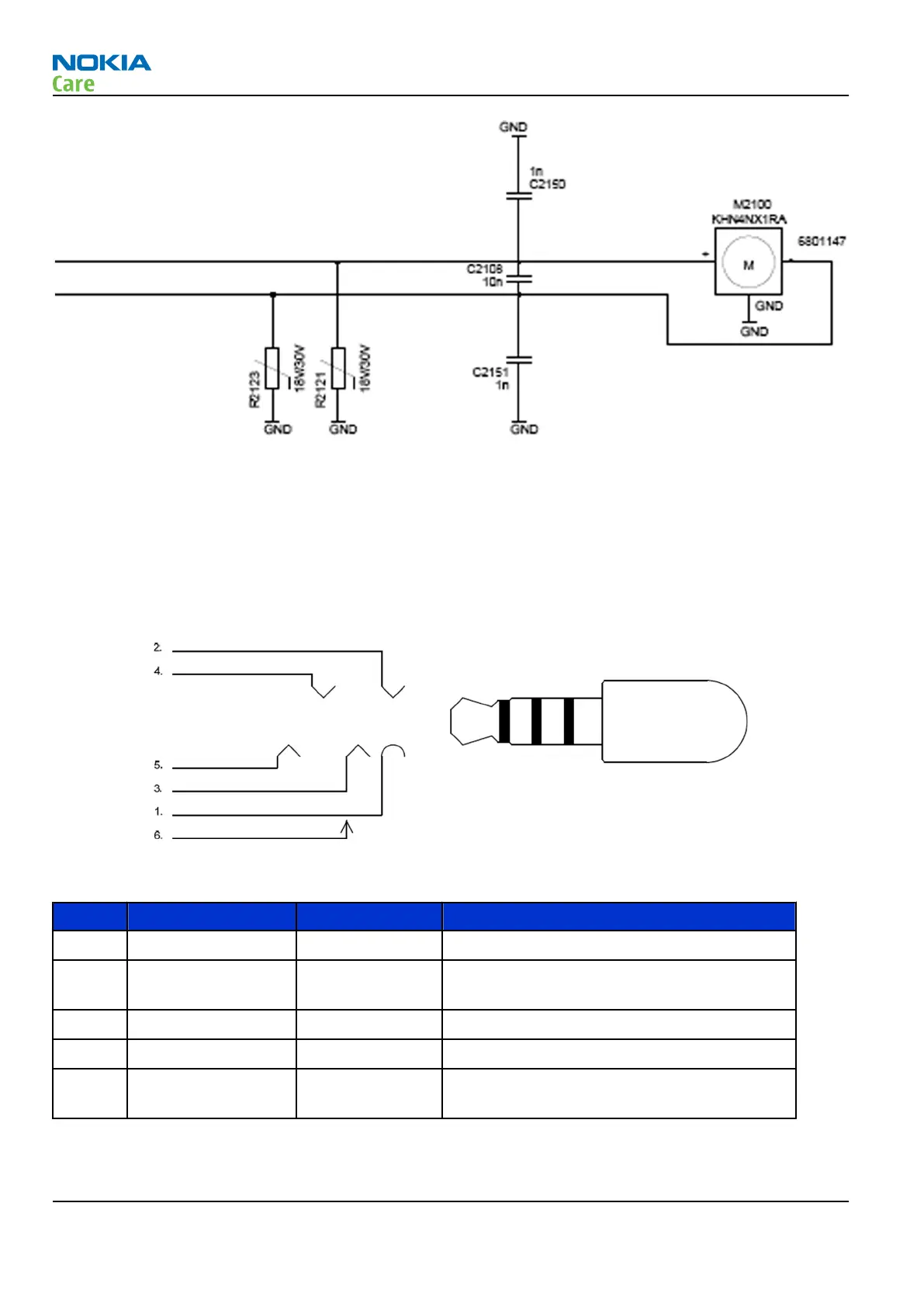

Figure 46 Vibra

AV connector

The 3.5mm AV connector consists of mono or stereo audio output, mono audio input and optional features

like control data over microphone line.

A connected male connector is detected on pin 6 (PLUG_DET).

Accessories are detected as basic headset (no ECI) or as intelligent ECI communication devices.

Note: Only use an approved cable for connecting to the AV connector ( e.g. headset HS-47).

Figure 47 AV connector pin layout

Table 14 AV connector pins

Pin Signal name Direction Description

1, 2 HS_ GND - Ground contacts

3 HS_MIC Input Multiplexed microphone audio and control

data/muxed: MIC2P and ACI, control: GenIO34

4 HS_EAR_R Output Audio output (XEAR_R)

5 HS_EAR_L Output Audio output (XEAR_L)

6 PLUG_DET Input Terminal internal connection, plug detection/

GenIO 33

RM-598; RM-604

System Module

Page 5 –22 COMPANY CONFIDENTIAL Issue 1
