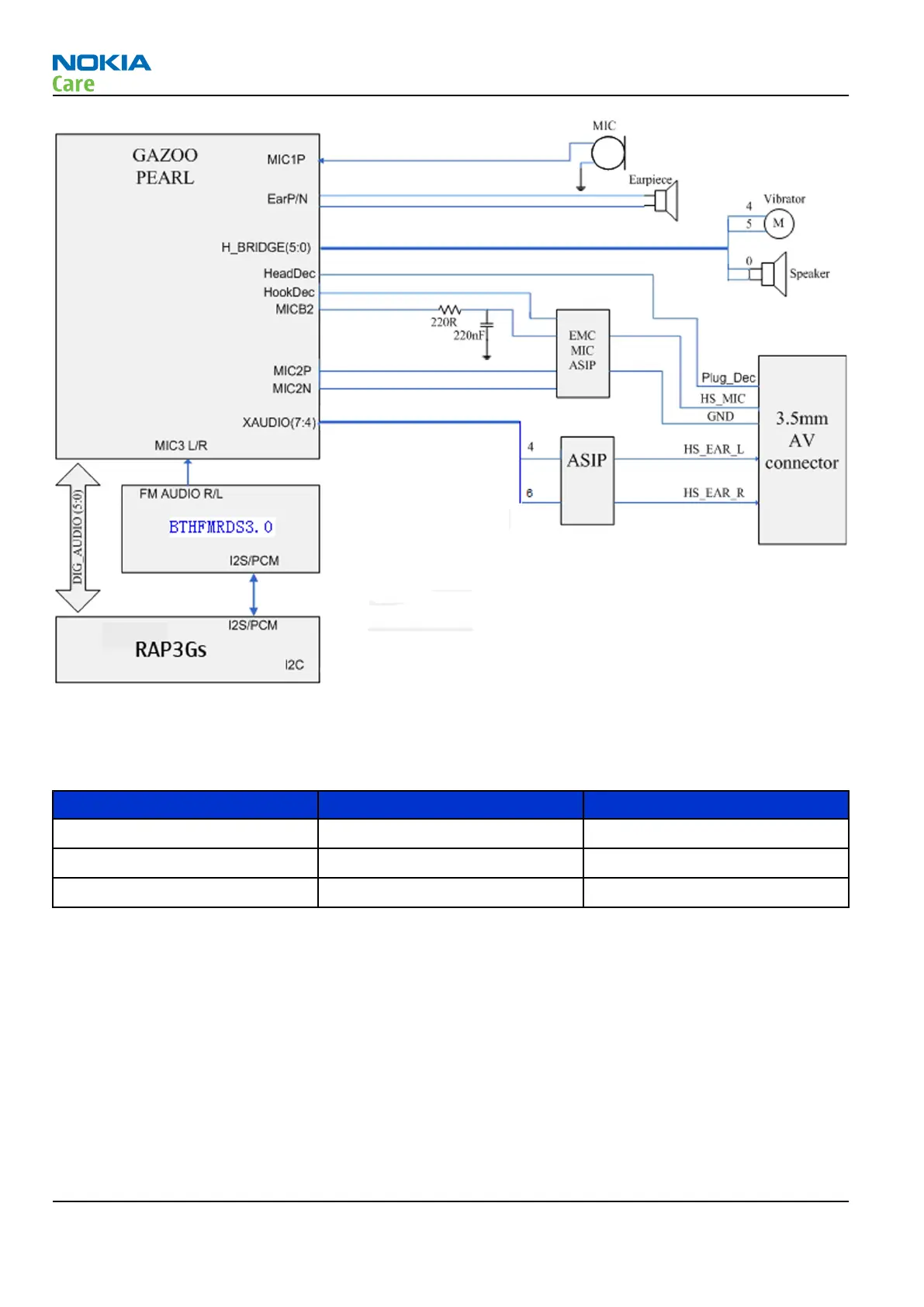

Figure 39 Audio block diagram
Internal audio
The internal audio components are used in these modes:
Hand portable (HP) mode
Internal hands free (IHF) mode
Microphone
X
X
Earpiece
X
Speaker
X
Internal microphone
The Clapton microphone is located in the antenna module. The MIC1P connects directly to the EM ASIC N2200
(Gazoo/Pearl).
RM-598; RM-604
System Module
Page 5 –18
COMPANY CONFIDENTIAL
Issue 1
Copyright © 2009 Nokia. All rights reserved.
151
