Nokia RM-598 Service Manual

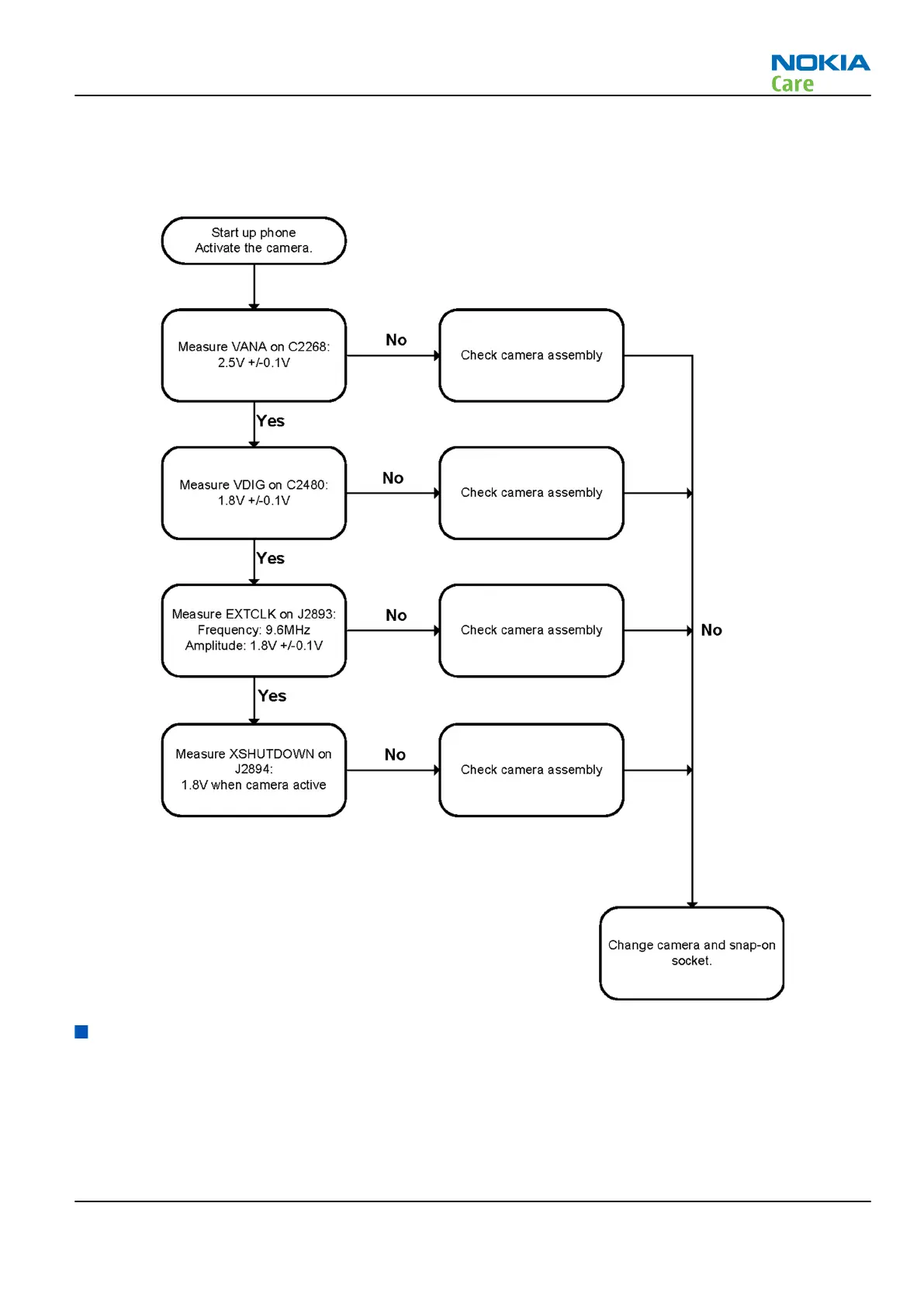

Camera hardware troubleshooting
Troubleshooting flow
Audio troubleshooting
Audio troubleshooting test instructions
Single-endedl external earpiece and differential internal earpiece outputs can be measured either with a
single-ended or a differential probe.
When measuring with a single-ended probe each output is measured against the ground.
RM-598; RM-604
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 –37
Copyright © 2009 Nokia. All rights reserved.
