Nolan N-Com B602 - Padding Repositioning

EN
10

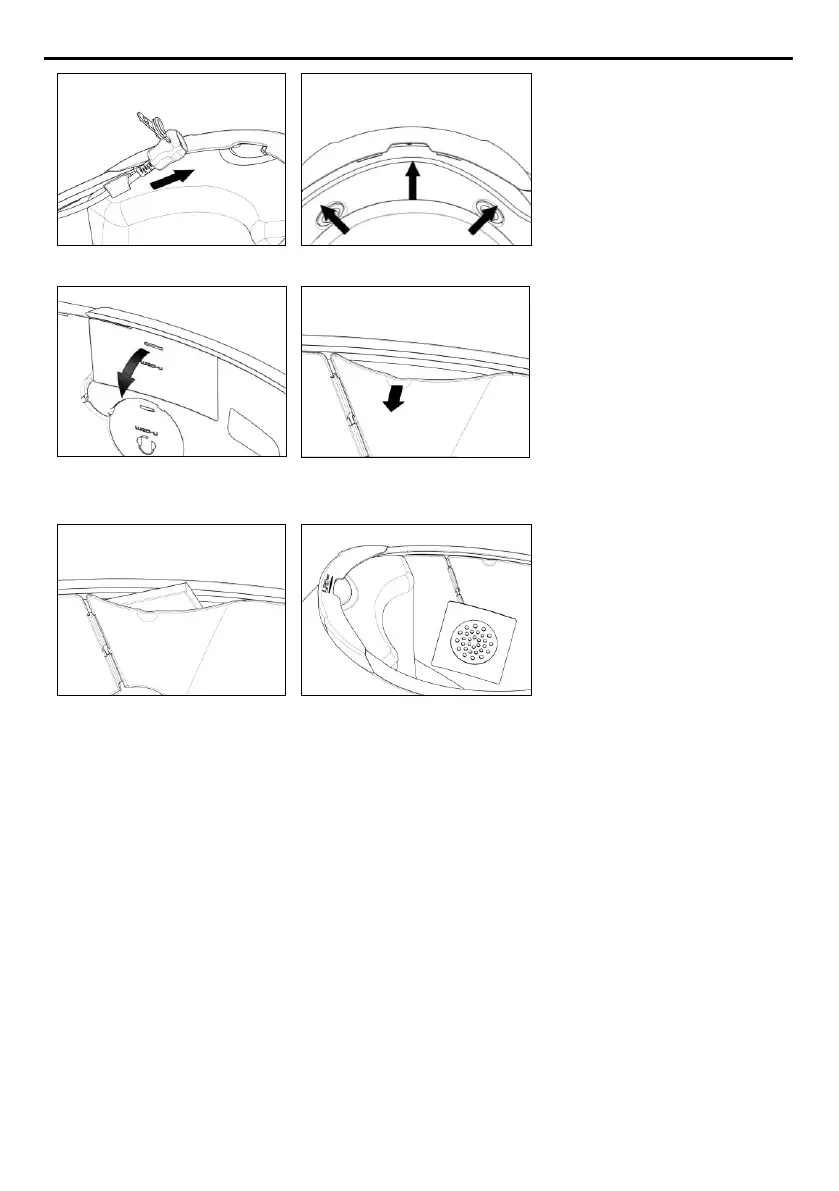

Fig. 18
Fig. 19
• Pass the charging cable
through the elastic band
found on the comfort padding
(Fig. 18).
• Position the wiring in the rear
part of the helmet (Fig. 19).
Fig. 20 – X-1005 HELMET
Fig. 21 – X-903 HELMET
• On the right side of the
helmet, bend the cheek pad
lining and insert the battery in
its housing (Fig. 20 - 21 - 22).
ONLY FOR X-1005 HELMETS:
Remove the filling material.
Keep it in case you want to
use the helmet without the N-
Com system installed in the
future.
Fig. 22
Fig. 23
• Position the right loudspeaker
in its housing, inserting the
cable in the special groove
(Fig. 23). If necessary, secure
the earphone using the
adhesive supplied as standard
equipment.
3.4. Repositioning the padding
Reposition the internal comfort padding by following the specific instructions provided in the helmet
user manual.
Warning: Always verify the proper length of your chinstrap and adjust it if necessary, referring to the
specific helmet instructions.
