Nolan N-Com B602 - Page 8

EN
8
N.B.: In the event that the keypad is not positioned correctly, peel it off right away with extreme care
and repeat the positioning.
N.B.: It takes up to 24 hours for the keypad to stick completely. During this time, do not expose the
helmet to atmospheric agents.

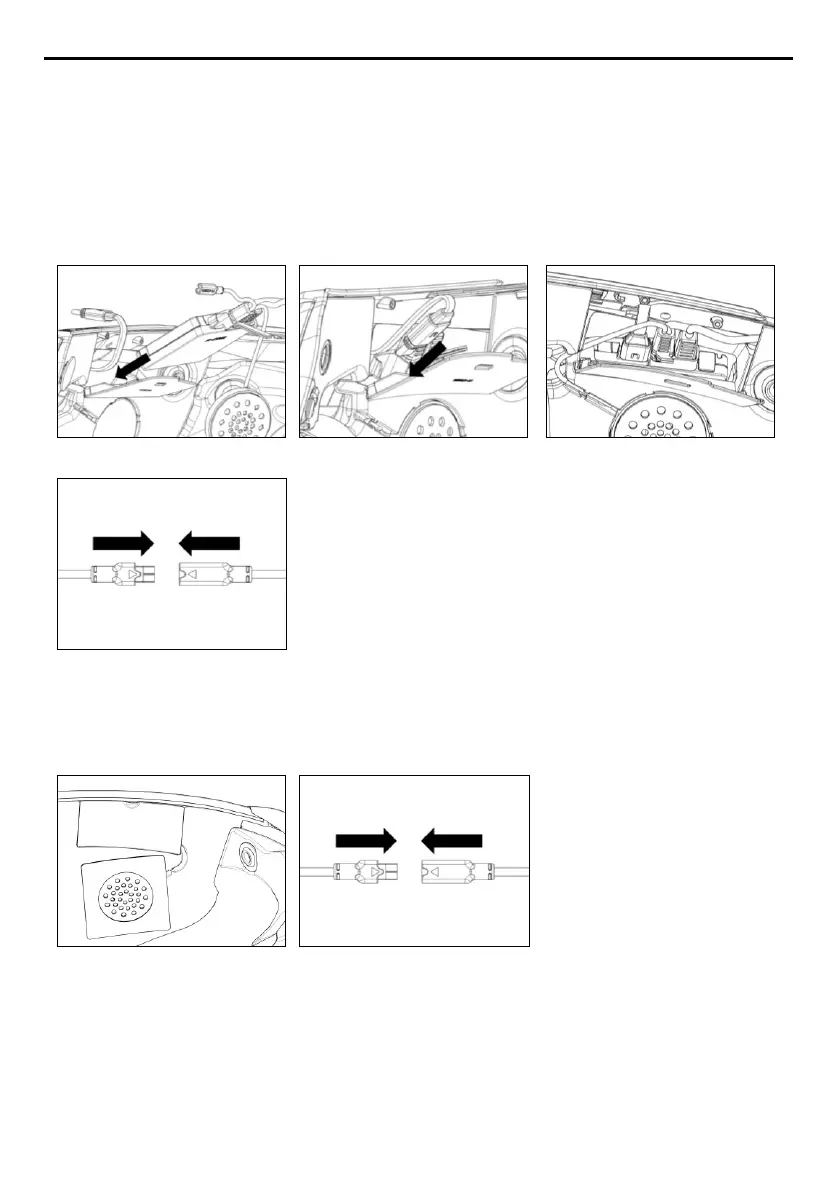

• Position the e-box in its seat (Fig. 6).
• Line up the keypad connector to the e-box (Fig. 7).
• Gently position the connector in its seat until it is all the way in (Fig. 8).
Fig. 6
Fig. 7
Fig. 8
Fig. 9
• Connect the battery to the cable in the
direction indicated by the arrows (Fig. 9).
• Check that the system is switched on correctly.
Press and hold the “n” key for about 2 seconds,
until the blue LED light on the keyboard turns
on and you hear the voice prompt. Proceed
with installation.
• Position the left loudspeaker in its seat, inserting the cable in the special groove. If necessary,
secure the earphone using the adhesive supplied as standard equipment (Fig. 10).
• Hook up the microphone to the connector coming out of the e-Box (Fig. 11).
Fig. 10
Fig. 11
