6. ConnectcablesC05tothe8‐waycouplerandroutealongtheboomtotheoutersensorbracket.
7. Attheoutersensorbrackets,attacha3‐waycoupler(E10)tothesprayerboom.ConnectcablesC05and
thesensorcabletothe3‐waycoupler.
8. ConnectcablesC06tothe3‐waycoupler(E10)androutealongtheboomtotheinnerwingsensors.
9. Attheinnersensorbrackets,attacha2‐waycouplerwithterminator(E20)tothesprayerboom.The2‐
waycouplerwithterminatoristhewhite2‐waycoupler.PlugthesensorandtheCANbuscableintothe
terminator.


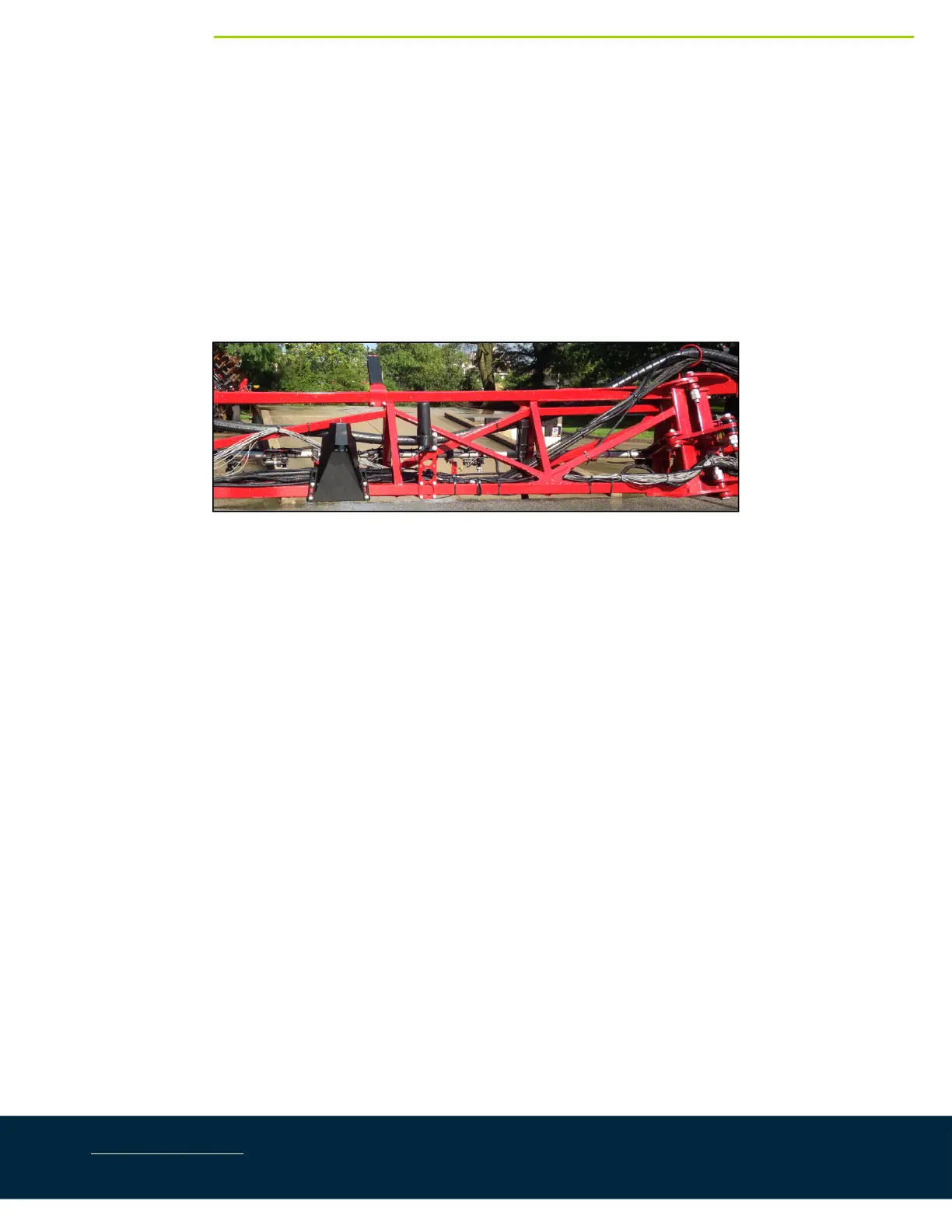

Figure19:InnerWingBracketMounting


