Se sofrer alguns problemas durante a instalação consulte o seu
representante NORAUTO�

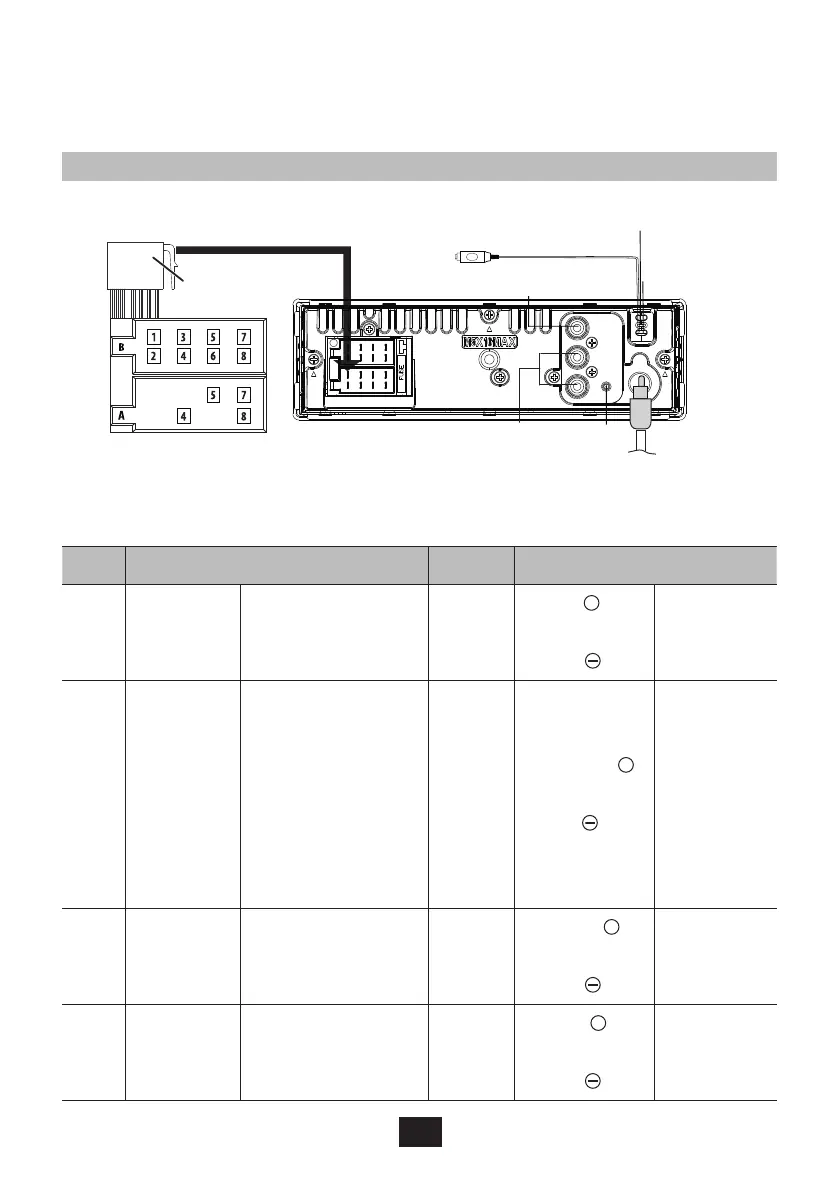

Ligação de cablagem
Conector ISO
Ficha mic externa (Preto)
OE remoto(Roxo)
Terra (Preto)
Saída RCA traseira
(esquerda) (direita)
DAB
Ficha antena (não
incluída)
SUB-W
Tabela de cablagem do conector ISO
Pino Cor e função Pino Cor e função
A4 Amarelo Bateria (+) B1/B2
Roxo
+
/
Roxo/
Preto
Altifalante
traseiro
direito
A5 Azul
Ligue o terminal
de controlo
do sistema do
AMP de energia
ou o terminal
de controlo do
relé da antena
automática (Máx�
150 MA 12 V CC)
B3/B4
Cinzento
+
/
Cinzento/
Preto
Altifalante
dianteiro
direito
A7 Vermelho Ignição (ACC) B5/B6
Branco
+
/
Branco/
Preto
Altifalante
dianteiro
esquerdo
A8 Preto Terra B7/B8
Verde
+
/
Verde/
Preto
Altifalante
traseiro
esquerdo
