Norcold N3150 - Reverse the Door Swing (Optional)

Installation and Owner’s Manual 22
- When using an upper side-wall exhaust vent:
- If the depth of the enclosure is 20 3/8 inches or more and is less than 22 3/8 inches [27], install a bent aluminum or galvanized
steel sheet bafe [26] to the rear of the enclosure (See Art02334 and Art02335).
- Make sure that the bend of the bafe is the full width of the inside of the enclosure.
- Make sure that the bend of the bafe is even with or below the bottom edge of the upper intake vent door frame.
- Make sure that the top edge of the bafe is between 1/4 inch [213] below the condenser and 1 1/2 inches above the
bottom of the condenser and that there is 1/4 inch or less clearance [15] between the rear of the condenser and the bafe.
- For the best cooling performance, the bafe should be 1/4 inch below the bottom of the condenser.

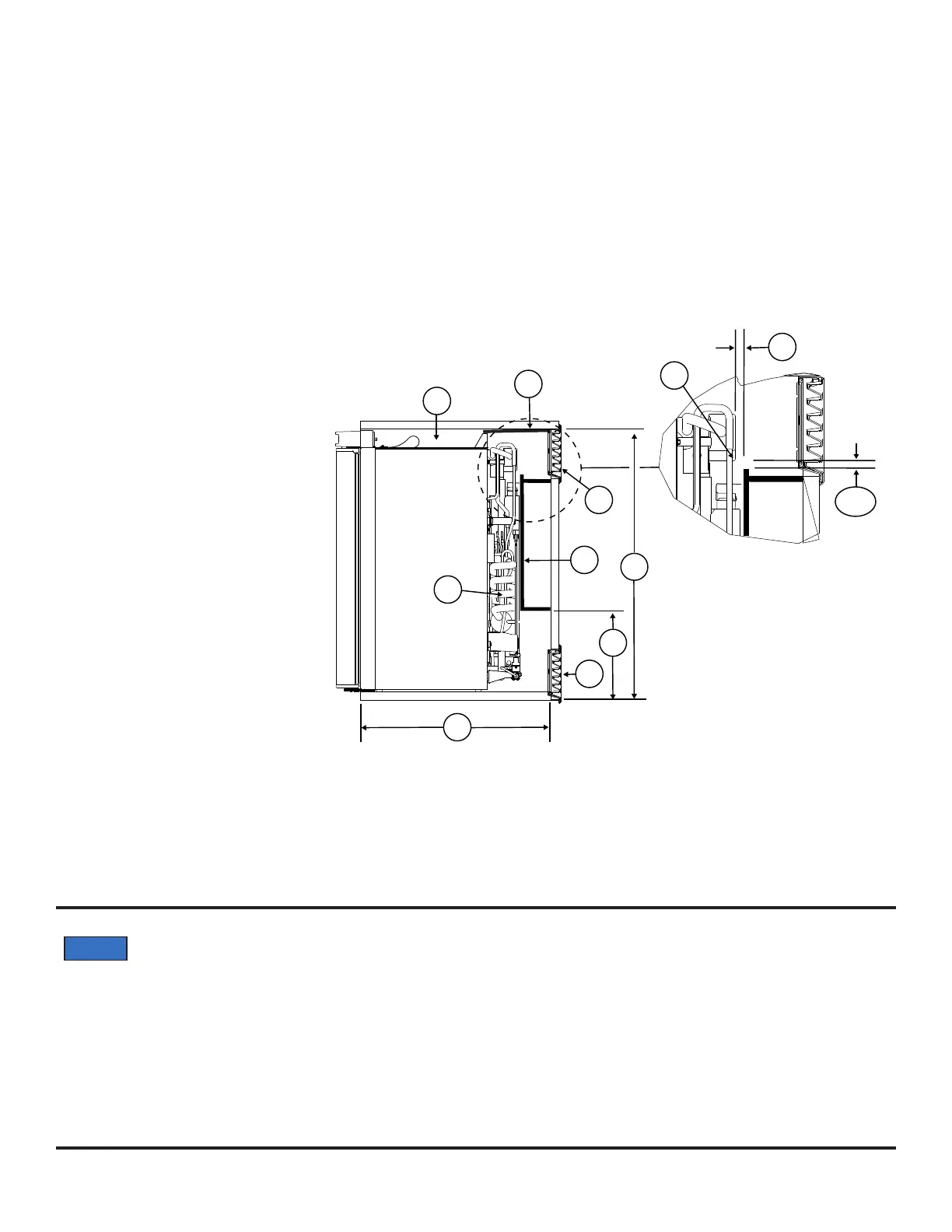

- If the depth of the enclosure is more than 22 3/8 inches [27], install a wood or an aluminum or galvanized steel sheet solid box
bafe [21] between the lower intake vent and the upper exhaust vent (See Art02336).
- Make sure that the solid
box bafe is the full width of
the inside of the enclosure.
- Make sure that the
horizontal bottom of the
solid box bafe is even with
or above the top edge of
the lower exhaust vent [9].
- Make sure that distance
from the enclosure oor to
the vertical bottom edge of
the solid box bafe [17] is
10 in. for N3104 and 12 in.
for N3150.
- Make sure that the back
of the solid box bafe is
perpendicular to the bottom
of the enclosure.
- Make sure that the
horizontal top of the solid
box bafe is even with or
below the bottom edge of
the upper exhaust vent
[24].
- Make sure that the vertical
top edge of the bafe is between 1/4 inch [213] below the condenser and 1 ½ inches above the bottom of the condenser.
- Make sure that there is 1/4 inch or less clearance [15] between the rear of the condenser and the bafe.
Reverse the Door Swing (optional)
N3000 series refrigerators are designed so that door swing can be reversed in the eld, using kits that can be
purchased separately. Door swing reversal should be done before installing the refrigerator in the vehicle.
NOTICE
Art02336
9
27
10
17
25
21
24
13
14
11
213
15
