NORDAC FLEX (SK 200E ... SK 235E) – Users Manual for Frequency Inverters
118 BU 0200 en-3118
Pos: 25 9 /Anlei tung en/El ektr onik/FU und Star ter/4 . Inbe trieb nahme/ SK 1xx E, SK 2 xxE, -FDS/ KTY8 4-130 Ans chl uss _An schl uss bei spi ele _02 _Ger ät [ SK 1 x0 E, SK 2 xxE ] @ 8 \mod_1441637124865_388.docx @ 240818 @ @ 1

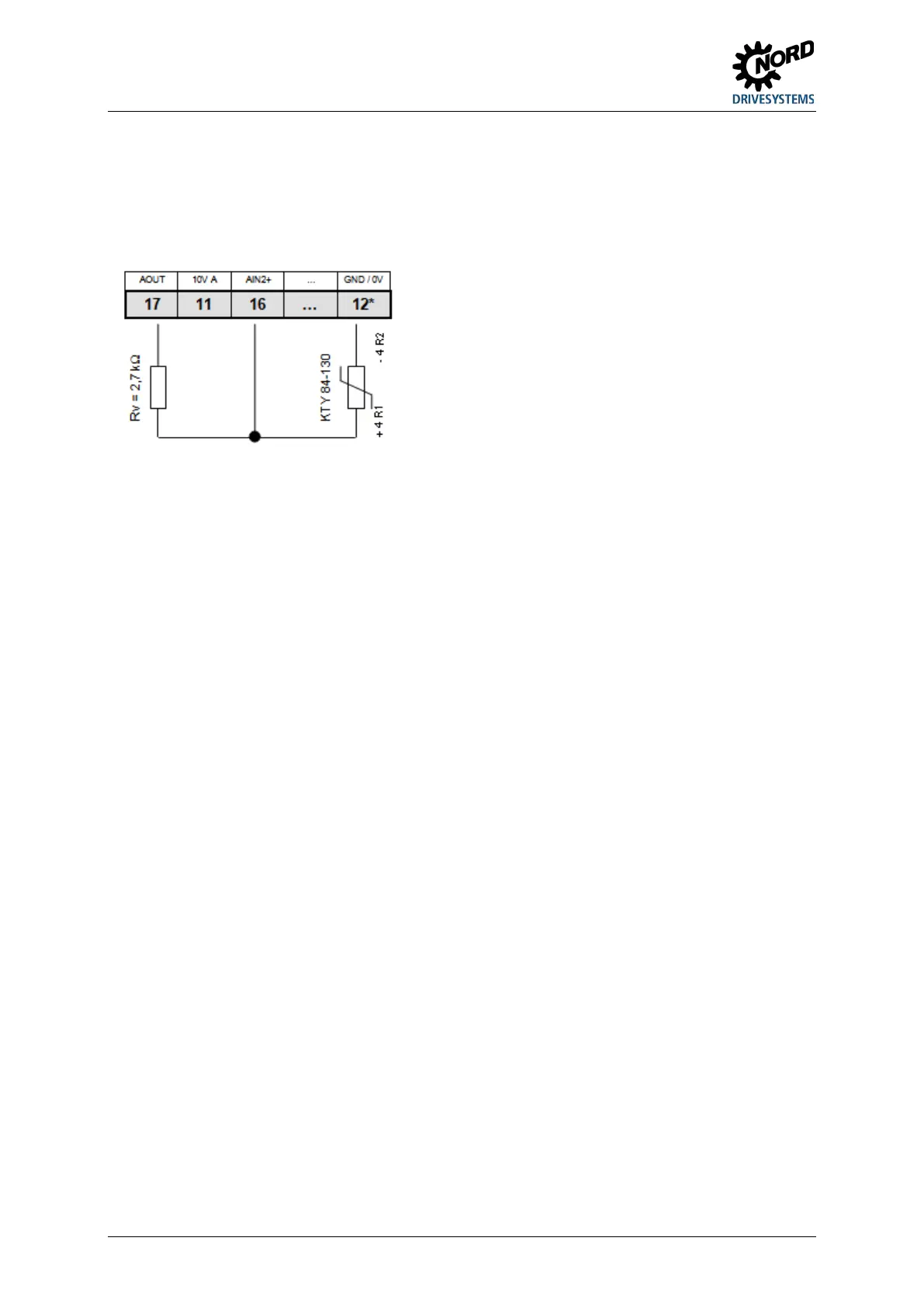

SK 2x0E
Connection of a KTY-84 to either of the two analogue inputs of the SK 2x0E is possible. In the
following examples, analogue input 2 of the frequency inverter is used.
SK 2x0E
*If necessary, also Terminal 40
Parameter settings (Analogue input 2)
The following parameters must be set for the function of the KTY84-130.
1.
The motor data P201-P207 must be set according to the rating plate.
2.
The motor stator resistance P208 is determined at 20°C with P220 = 1.
3.
Function analogue input 2, P400 [-02] = 30
(Motor temperature)
4.
The mode analogue input 2 P401 [-06] = 1
(negative temperatures are also measured)
5.
Adjustment of analogue input 2: P402 [-06] = 1.54 V and P403 [-06] = 2.64 V
(with RV= 2.7 kΩ)
6.
Adjust time constants: P404 [-02] = 400 ms (Filter time constant is maximum)
7.
Motor temperature control (display): P739 [-03]
Pos: 26 0 /Anlei tu nge n/El ektr oni k/FU un d St art er/4 . I nbe tri ebn ahme/ SK 1xx E, S K 2 xxE, -FD S/KTY 84-1 30 A nsc hlus s_ Ansc hlus sb eispi el e_0 3_G erä t (S K 2 x5E) [ S K 2 xxE] @ 8\ mod_1441636049691_388.docx @ 240786 @ @ 1
SK 2x5E
Direct connection of a KTY-84 to the SK 2x5E is not possible.
In order to use this function on the SK 2x5E the use of an I/O - extension module (SK xU4-IOE) is
necessary.
