2 Assembly and installation
BU 0200 en-3118 43
Pos: 84 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M o ntag e/W and mon tage - Ergänzung [SK 1xxE, SK 2xxE]/Wandmontage [SK 1xxE, SK 2xxE] @ 1\mod_1341496591999_388.docx @ 30083 @ 3 @ 1
2.1.3 Wall mounting
As an alternative to wall mounting, the device can also be installed close to the motor using an
optional wall-mounting kit.
Pos: 85 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M o ntag e/W and mon tage - Ergänzung [SK 1xxE, SK 2xxE]/Wandmontagekit ohne Lüfter @ 22\mod_1529335214841_388.docx @ 2427408 @ 4 @ 1
2.1.3.1 Wall mounting kit without fan
Pos: 86 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M o ntag e/W and mon tage - Ergänzung [SK 1xxE, SK 2xxE]/Wandmontagekit SK TIE4 WMK-... (...1-K , 2-K, -3) [SK 2 xxE] @ 2 2\mod_1529317559663_388.docx @ 2427262 @ 5 @ 1
Wall mounting kit SK TIE4-WMK-… (…1-K, …2-K, …3)
Simple wall mounting kits with the following versions are available for size 1 to 4 frequency inverters.
The wall mounting kits for the small sizes are made of plastic and are equally suitable for IP55 and
IP66. For Size 4, various stainless steel wall mounting kits are available for IP55 and IP66.
FI size
Frequency inverter type Housing dimensions Mounting dimensions
Total weight
approx. [kg]
g2 n p d1 d2 e1 e2
∅
Size 1
SK TIE4-WMK-1-K
130.5 236 156
205 180 95 64 5.5
3.1
Part. No. 275 274 004
Size 2
SK TIE4-WMK-1-K
137.5 266 176 4.2
Part. No. 275 274 004
Size 3
SK TIE4-WMK-2-K
154.5 330 218 235.5 210.5 105 74 5.5 7.0
Part. No. 275 274 015
Size 4
IP55
SK TIE4-WMK-3
168 470 305 295 255 150 100 8.5 19
Part. No. 275 274 003
IP66 SK TIE4-WMK-3-C
Part. No. 275 274 009
All dimensions in [mm]
Information
Derating
Due to the use of the wall mounting kit SK TIE4-WMK-1-K and SK TIE4-WMK-2-K the frequency inverter no
longer has optimum ventilation. Therefore, especially with 3-phase frequency inverters, the maximum continuous
power output can be considerably lower than is typical for wall mounting. For details, please refer to the technical
data (Section (please see chapter 7.2 "Electrical data" on page 239)).
In size 4 of the SK 2x0E a fan block is integrated as standard, so that no power derating can occur.

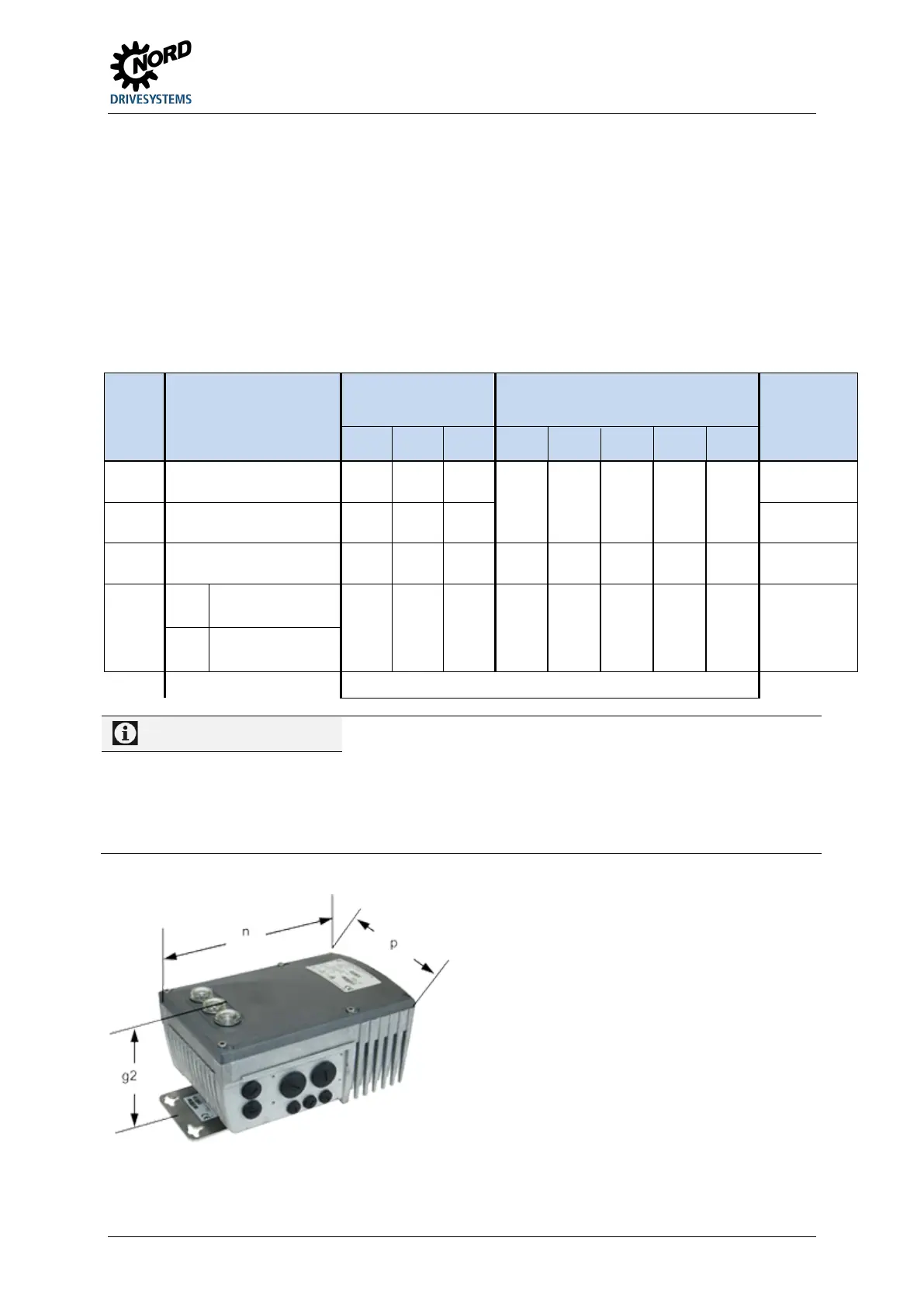

Figure 7: SK 2xxE with wall-mounting kit
