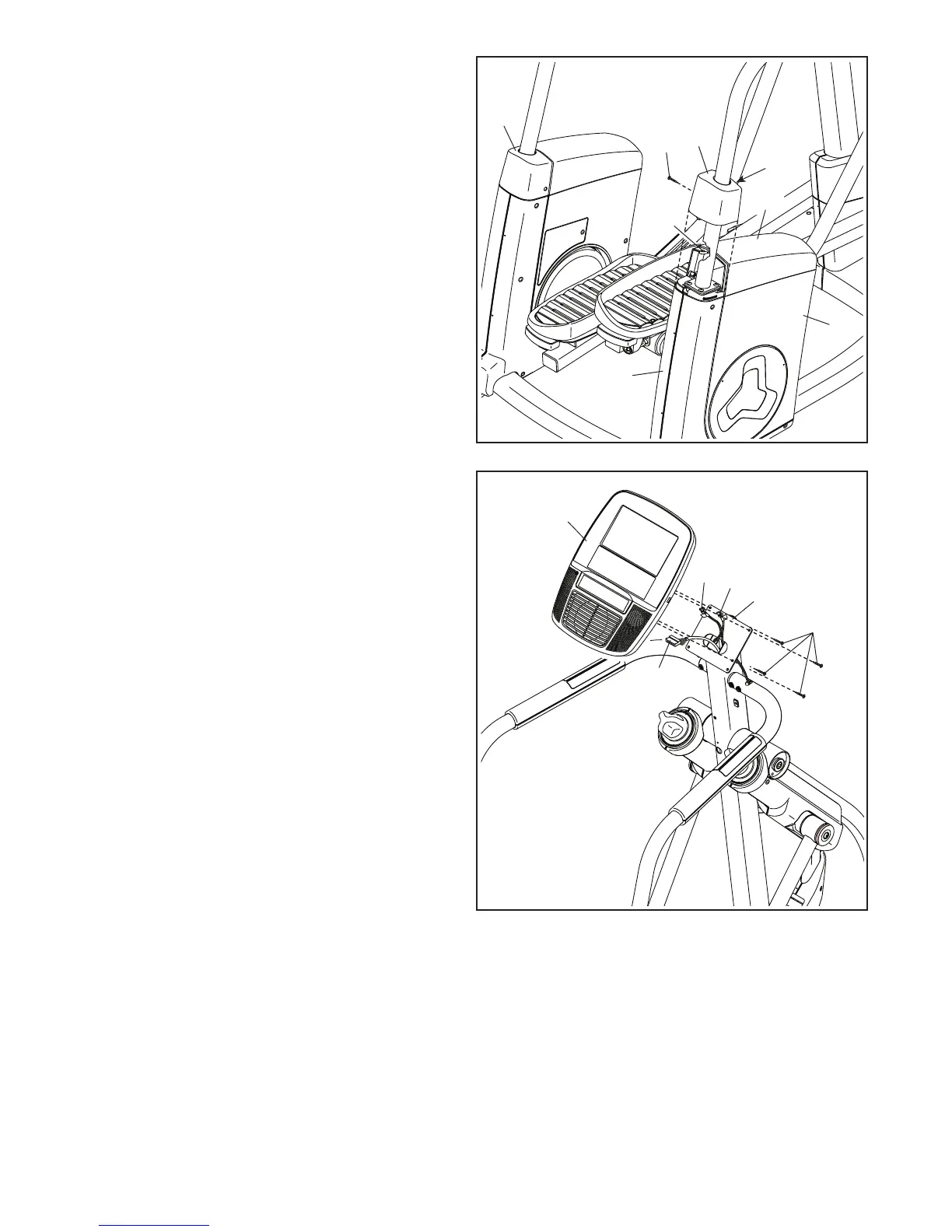

7. Align the plastic post inside the Right Handrail
Cover (7) with the indicated hole in the Right
Shield Cover (76).
Press the Right Handrail Cover (7) onto the
Right Shield Cover (76) and onto the Right Outer
and Inner Shields (17, 19).
Attach the Right Handrail Cover (7) with an
M4 x 16mm Screw (67).
Attach the Left Handrail Cover (6) in the same
way.
67
17
7
6
19
76
Hole
Post
8. Have a second person hold the Console (3) near
the Upright (2).
Plug the Upper Wire (81) into the large recepta-
cle on the back of the Console (3). Next, plug the
Right and Left Pulse Wires (80, 85) into the right
and left receptacles. The connectors on the
Wires should slide easily into the receptacles
and snap into place. If a connector does not
slide easily, turn it and try again. If you do not
insert the connectors properly, the Console
may become damaged.
Next, insert the excess wire into the Upright (2).
Tip: Avoid pinching the wires. Attach the
Console (3) to the Upright (2) with four M4 x
16mm Screws (67); start all the Screws, and
then tighten them.
3
2
67
80
85
Avoid pinching
the wires
81
