12

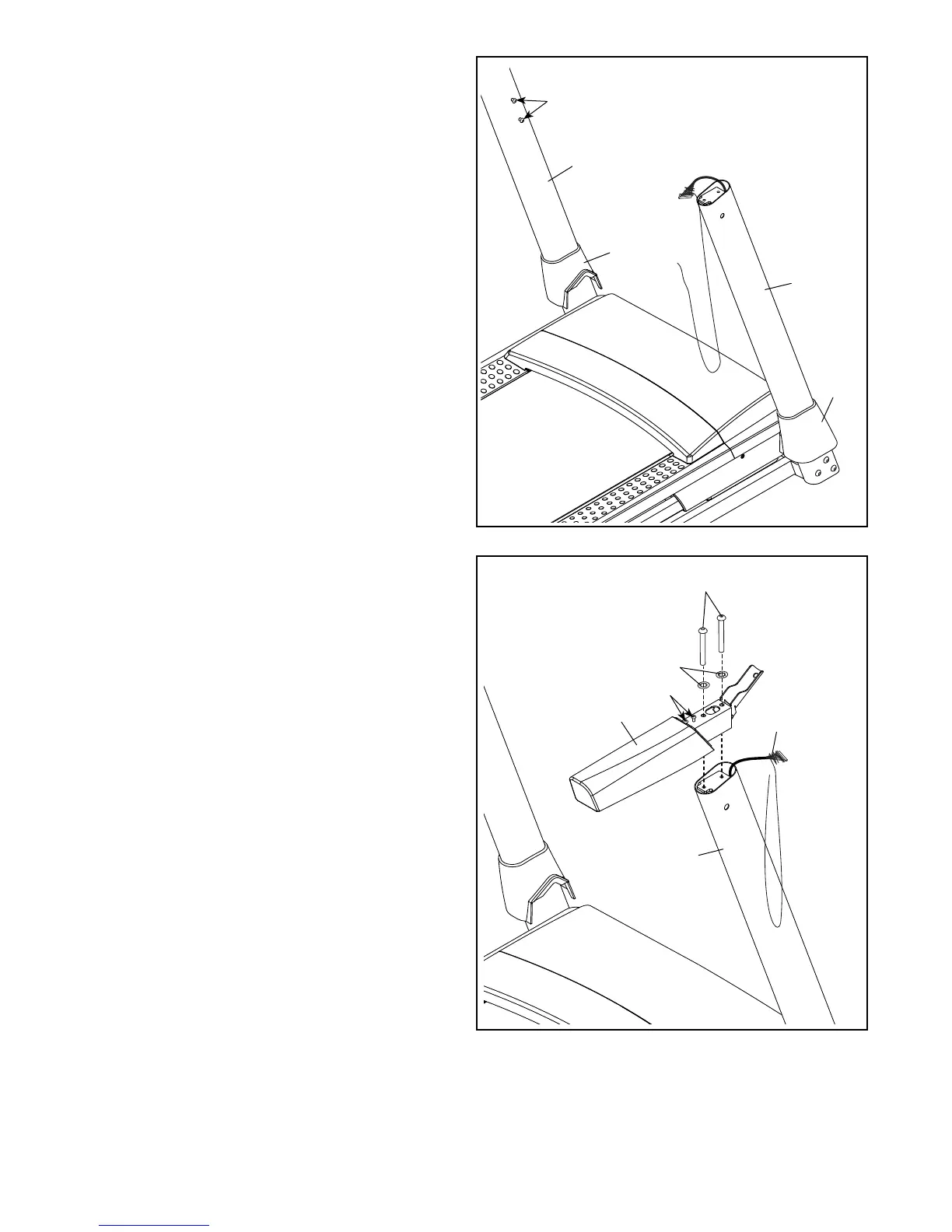

6. Remove the four indicated 5/16" x 3/4" Screws
(4) from the Uprights (89, 90) (only one side is
shown). The Screws will be used in a later
step.
Identify the Left and Right Base Covers (82, 83).
Slide the Left Base Cover onto the Left Upright
(89), and slide the Right Base Cover onto the
Right Upright (90). Do not press the Base
Covers into place yet.
82
90
83
6
7. Identify the right handrail assembly (B).
Attach the right handrail assembly (B) to the
Right Upright (90) with two 5/16" x 2 1/2" Screws
(28) and two 5/16" Star Washers (11). Make
sure not to pinch the Upright Wire (81). Do
not fully tighten the Screws yet.
Remove and discard the two indicated screws
(C) from the right handrail assembly (B).
28
11
B
90
81
7
C
89
4
