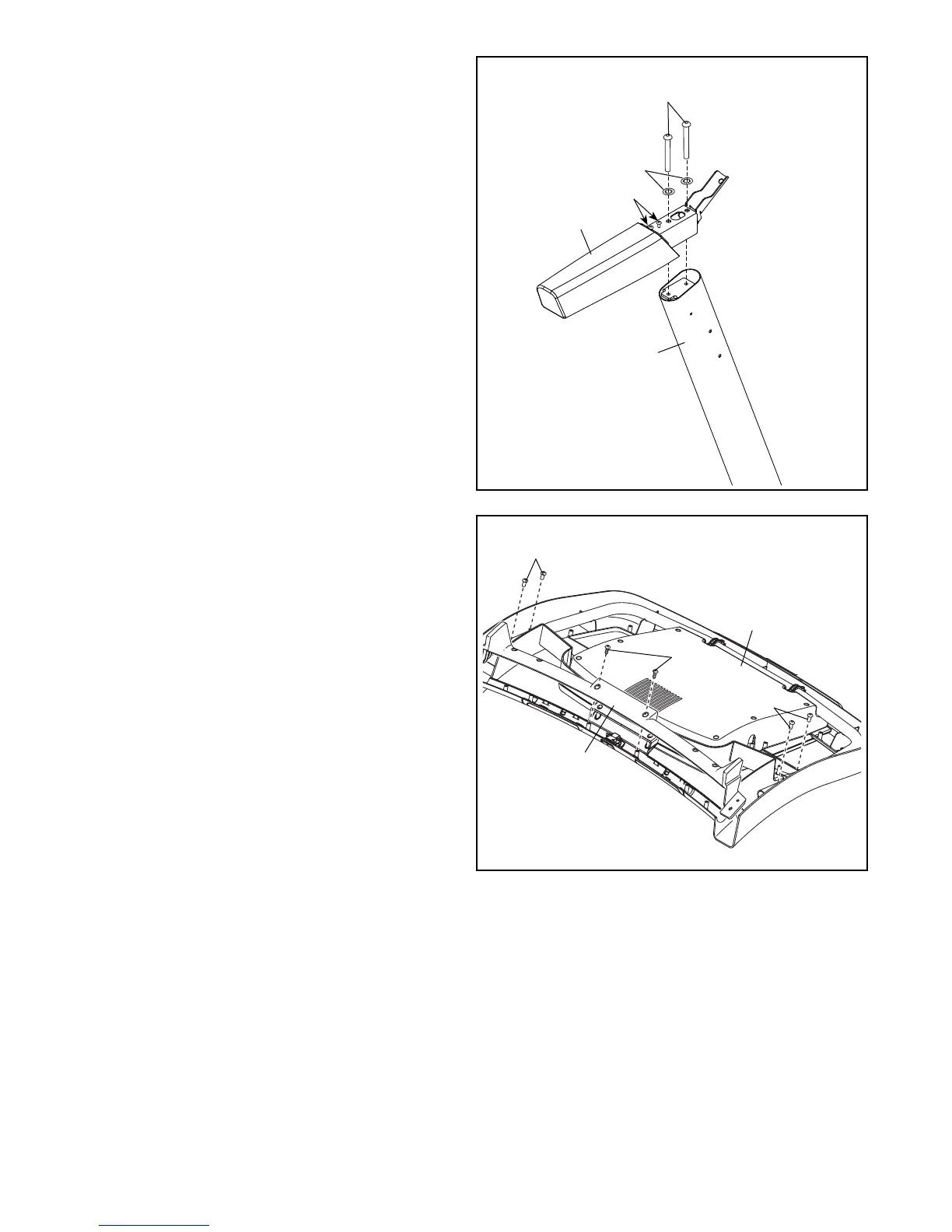

8. Attach the left handrail assembly (D) to the Left
Upright (89) with two 5/16" x 2 1/2" Screws (28)
and two 5/16" Star Washers (11). Do not fully
tighten the Screws yet.
Remove and discard the two indicated screws
(C).
8
89
D
C
28
11
64
93
E
9
9. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base.
Remove and discard the two indicated screws
(E). Then, remove the Pulse Crossbar (93).
Remove the four 5/16" x 3/4" Screws (4). The
Screws will be used in a later step.
4
4
To Next Page
