NordicTrack E 5.4 User Manual

6

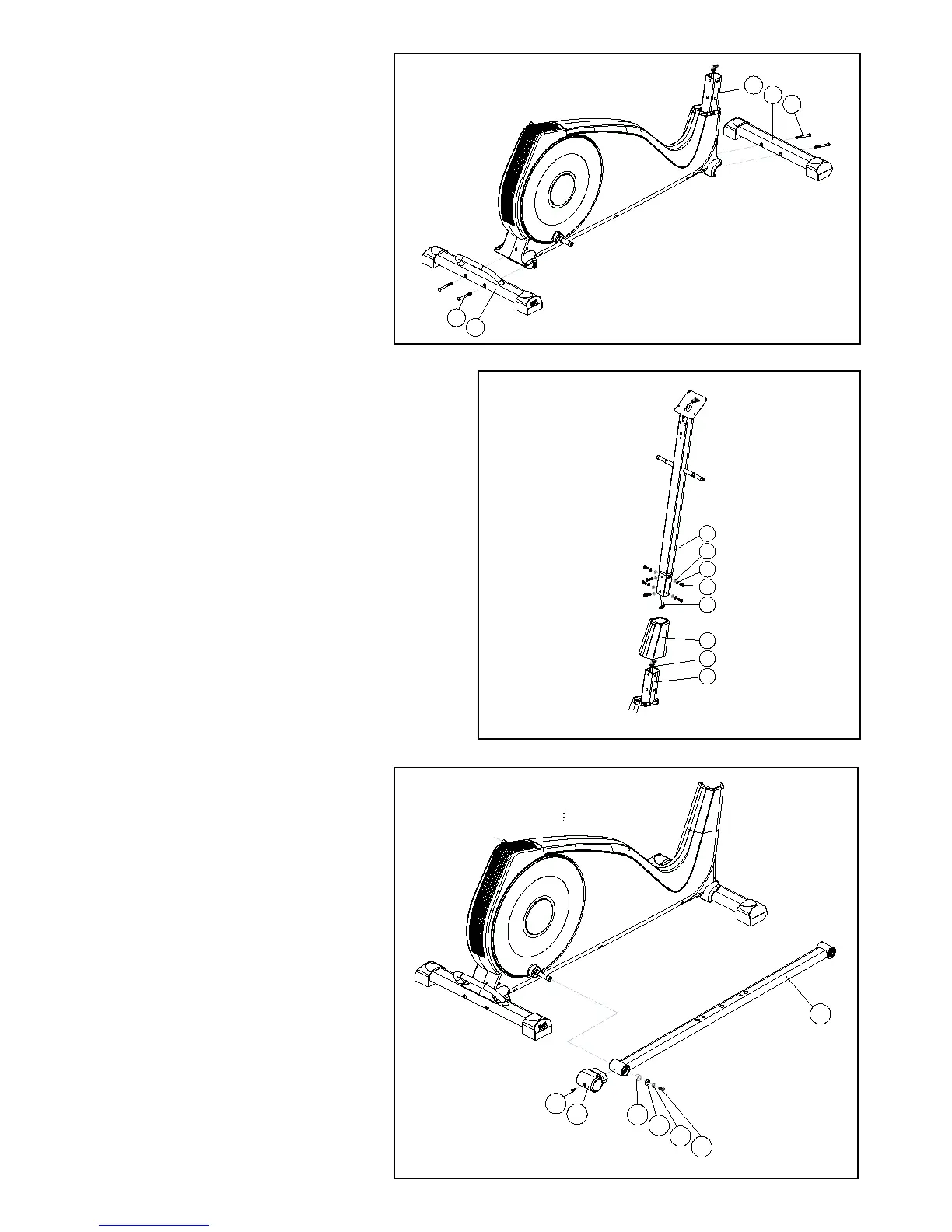

STEP 1
Fasten front stabilizer (37) with
2 Allen bolts (83) from the underside
of stabilizer. Fasten Rear stabilizer (82)
with 2 Allen bolts (83).
STEP 2
I. Carefully lift the Handlebar Post (18)
until it is vertical. Put the front plastic
cover (90) into the Handlebar post (18).
Connect the Upper Computer Cable (35)
and the Lower Computer Cable (36).
II. Remove the loosely tted Allen bolts (34),
spring washers (22) and curved washers (33)
from the Main Frame and lower the Handlebar
Post (18) into position. Loosely re-t the Allen
Bolt (34), Spring washer (22) andCurved Washers
(33) and align the Handlebar Post so it is straight
Then tighten the Allen bolts fully
STEP 3
Fasten footplate support bars (28R+L)
from the crank with coated Allen bolts
(23), spring washers (22) and at wash-
ers (21). Secure the plastic cover (56)
onto footplate support bar with screw
(55).
82
83
37
83
84
33
22
34
35
90
36
18
84
21
22
59
23
28R
55
56
