7

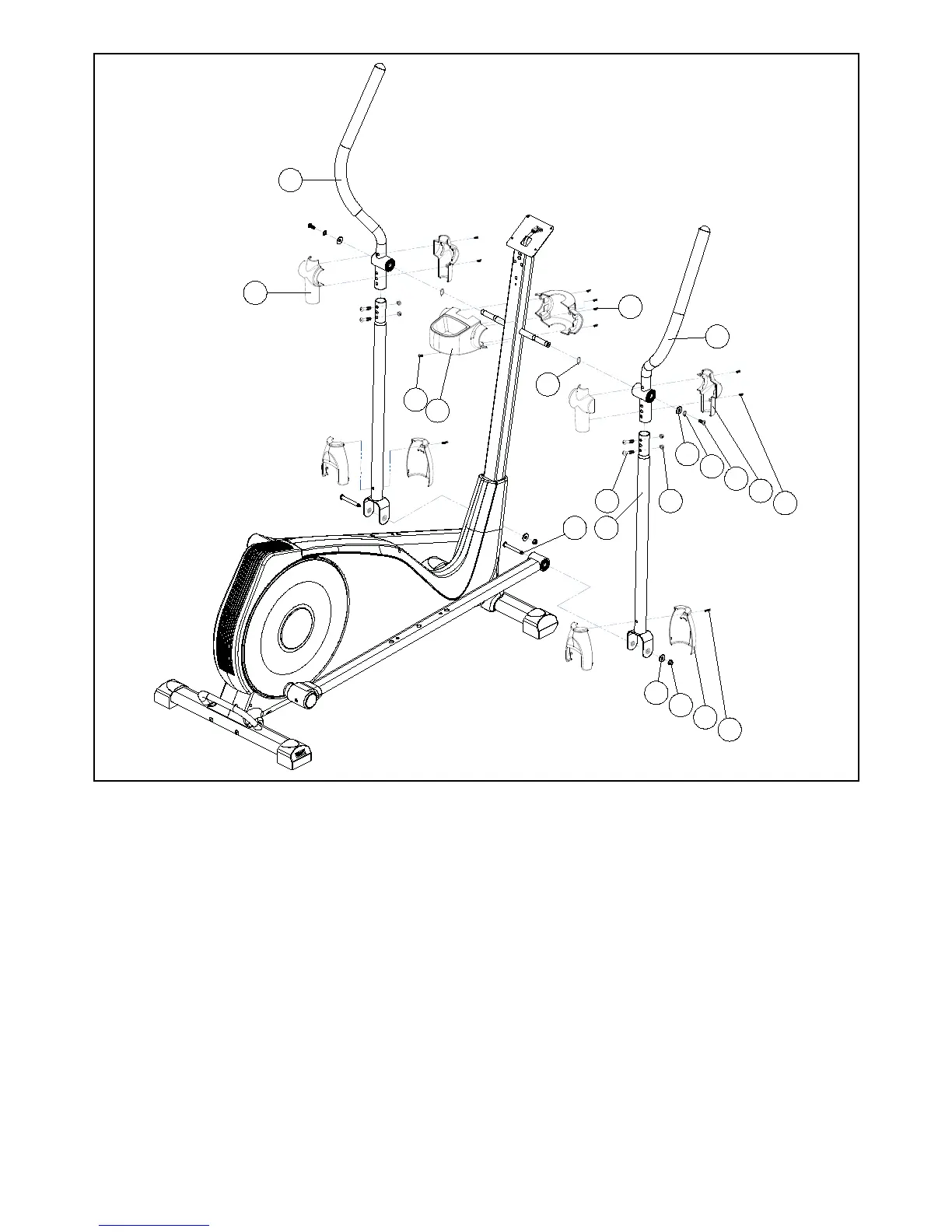

STEP 4
I. Slide the upper swing bar Left and Right (8) onto the Center Shaft and secure using curved washers
(19) 2 coated Allen Bolts (23), 2 wave washers (21), 2 spring pad (22).
II. Fit the lower swing bar Left and Right (15) by slotting them into the upper swing bar Left and Right
(8) and loosely t 4 Allen bolts (14) and 4 nut (16).
III. Fasten footplate support bars (28R+L) parallel (don’t incline) to the lower swing bars (15R+L) and
secure it with Allen bolts (26),washers (29) and nylon lock nuts (30). Then put the plastic cover (31) onto
footplate support bar left and right with screws (32)
IV. Fit the upper swing bar and lower swing bar and secure it 4 Allen bolts (14) and 4 nut (16)tighten
fully. Then put the plastic cover (7) onto swing bar left and right with screws (9),Secure the plastic cover
(17) with screws (9) and (11)
19
