11

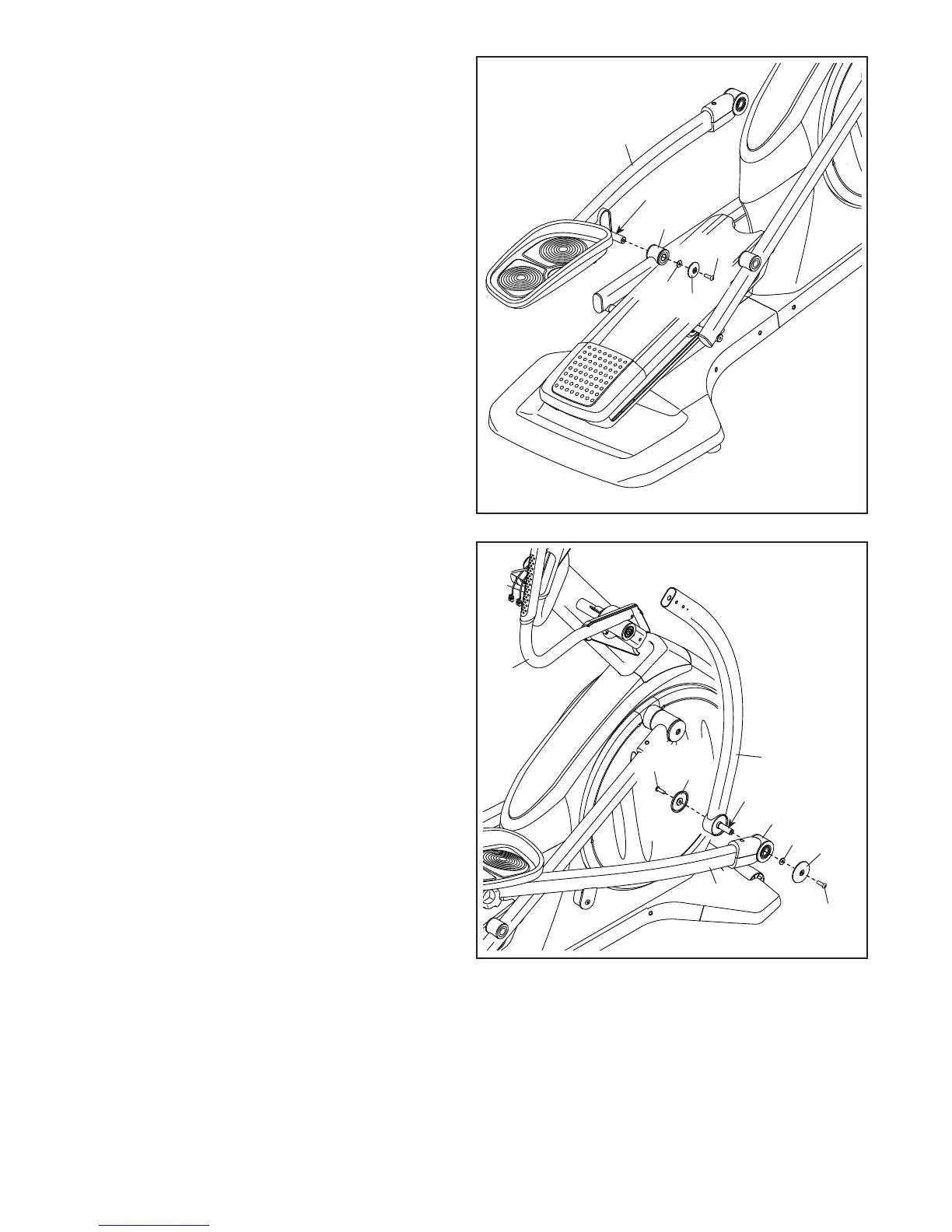

12. Orient the Left Pedal Arm (44) as shown.
Apply grease to the axle on the Left Pedal Arm
(44).
Attach the Left Pedal Arm (44) to the Left Roller
Arm (12) with an M8 x 16mm Screw (120), a
Roller Arm Cover (81), and an M8 x 25mm
Washer (98).
Repeat this step for the Right Pedal Arm (not
shown).
12
81
98
44
12
120
Grease
13. Tip: Do not insert the Right Upper Body Arm
(61) into the Right Upper Body Leg (36) until
step 14.
Orient the Right Upper Body Leg (36) as shown.
Apply grease to the axle on the Right Upper
Body Leg.
Slide the Pedal Arm Flex Bracket (136) on the
Right Pedal Arm (58) onto the Right Upper Body
Leg (36).
Attach the Pedal Arm Flex Bracket (136) to the
Right Upper Body Leg (36) with two M8 x 16mm
Screws (120), two Axle Covers (53), and an M8
x 25mm Washer (98). Do not fully tighten the
Screws yet.
Repeat this step on the other side of the
elliptical.
53
98
53
Grease
120
120
36
58
136
13
61
To Next Page
