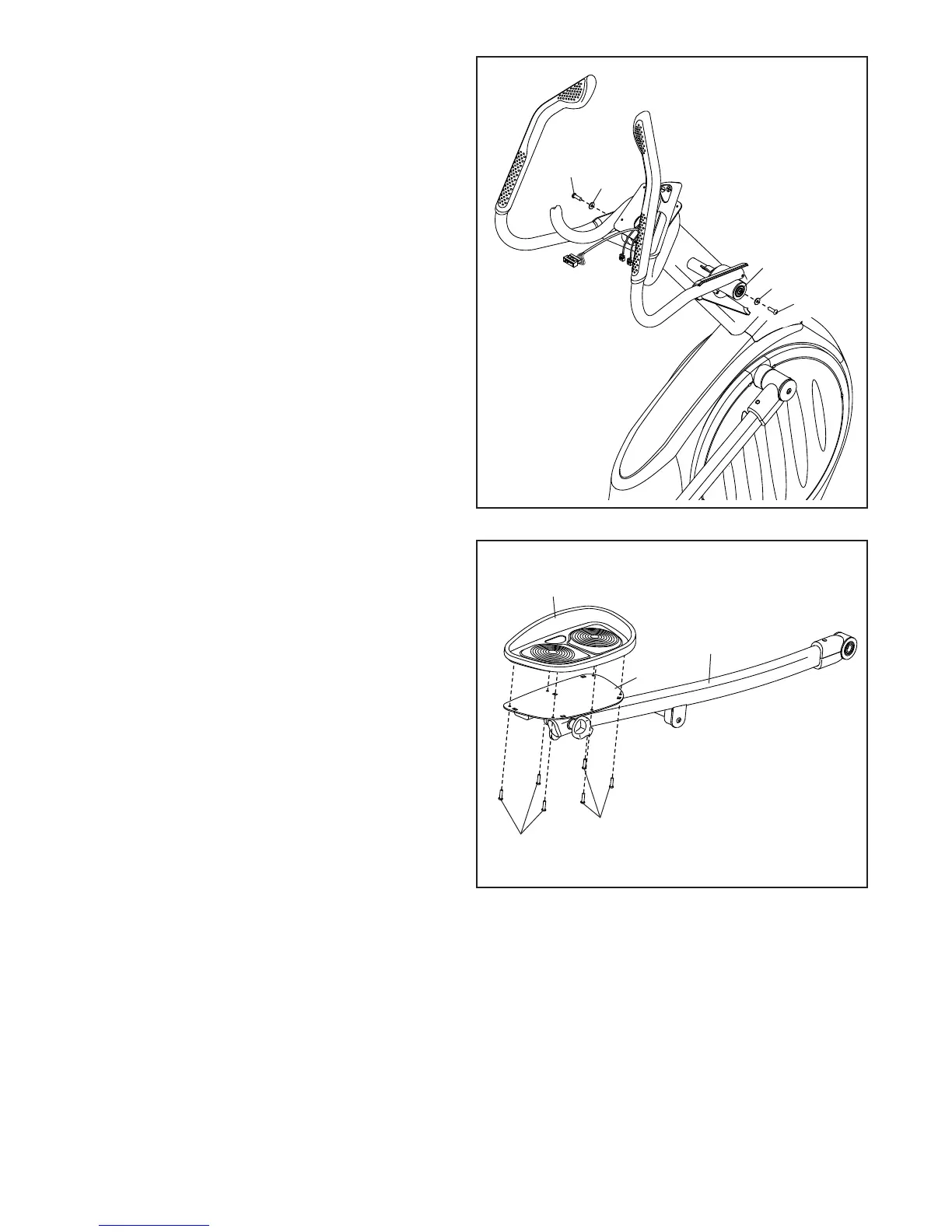

10. Tighten an M8 x 16mm Screw (120) and an M8
x 25mm Washer (98) into each end of the Pivot
Axle (35) at the same time.
10
120
120
98
98
35
11. Identify the Right Pedal (49) and the Right Pedal
Arm (58), which are marked with “Right” stickers,
and orient them as shown.
Attach the Right Pedal (49) to the Right Pedal
Bracket (139) on the Right Pedal Arm (58) with
six M6 x 10mm Screws (121).
Repeat this step for the Left Pedal (not
shown) and the Left Pedal Arm (not shown).
11
58
49
121
121
139
