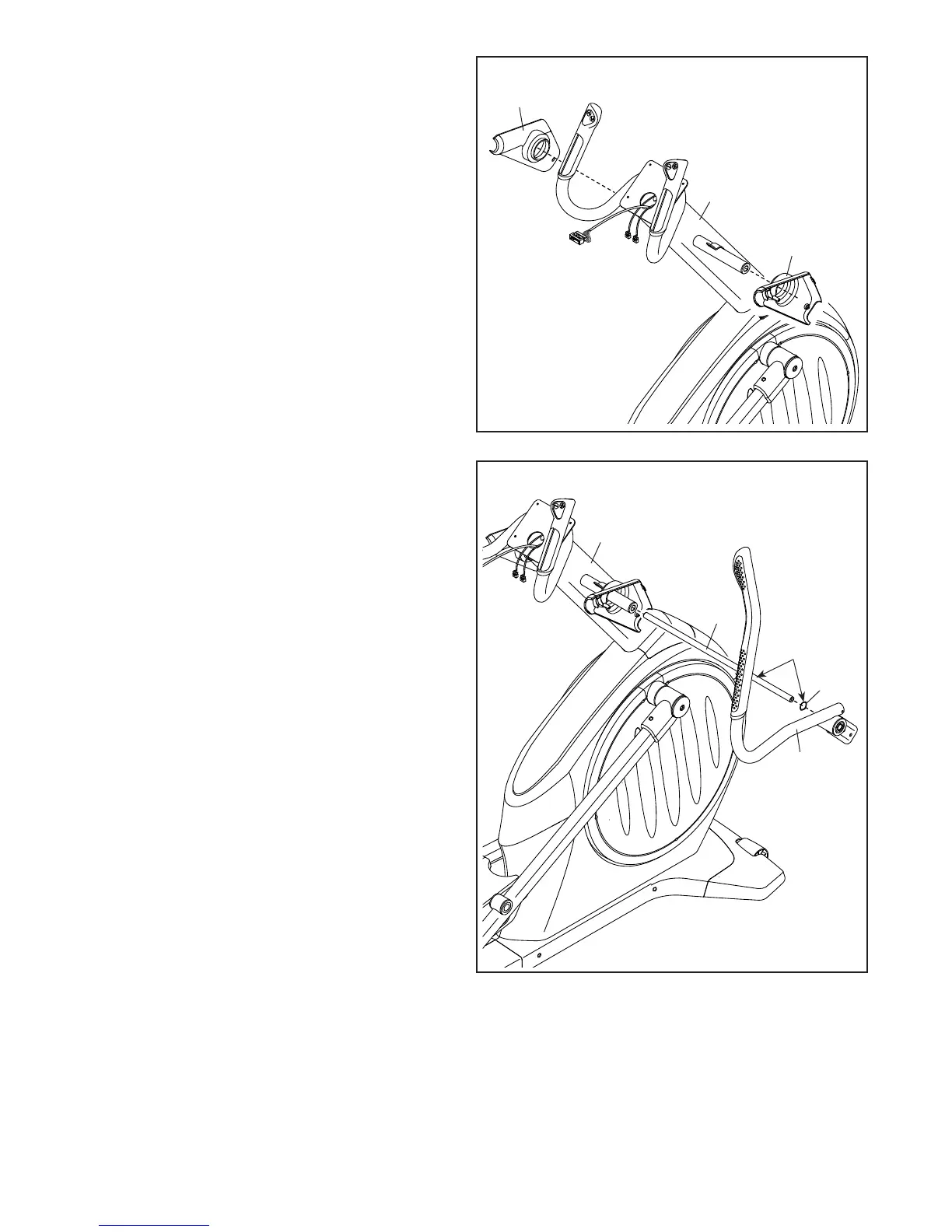

8. Identify the Left and Right Inner Covers (55, 68),
which are marked with “Left” and “Right” stick-
ers, and orient them as shown.
Slide the Left Inner Cover (55) onto the left side
of the Upright (4). Then, slide the Right Inner
Cover (68) onto the right side of the Upright.
9. Using a small plastic bag to keep your fingers
clean, apply some of the included grease to the
Pivot Axle (35) and to two Wave Washers (95)
(only one is shown).
Insert the Pivot Axle (35) through the Upright (4)
and then center it. Tip: It may be helpful to use
a rubber mallet.
Identify the Right Upper Body Arm (61), which
is marked with a “Right” sticker, and orient it as
shown.
Slide a Wave Washer (95) and the Right Upper
Body Arm (61) onto the right side of the Pivot
Axle (35).
Repeat these actions for the Left Upper Body
Arm (not shown).
61
95
35
4
Grease
9
To Next Page
