NordicTrack E4.1 Elliptical User Manual

8
4
Wire
Tie
2
42
37
5. Slide the Upright (2) onto the Frame (1). Tip:
Have a second person hold the Top Shield
Cover (37) out of the way.
Tip: Avoid pinching the Wire Harness (42).
Attach the Upright (2) with four M10 x 20mm
Screws (79) and four M10 Split Washers (78).
Slide the Top Shield Cover (37) downward and
press it into the Frame (1).
5
1
1
78
78
79
79
1
2
42
Wire Tie
Avoid pinching the
Wire Harness (42)

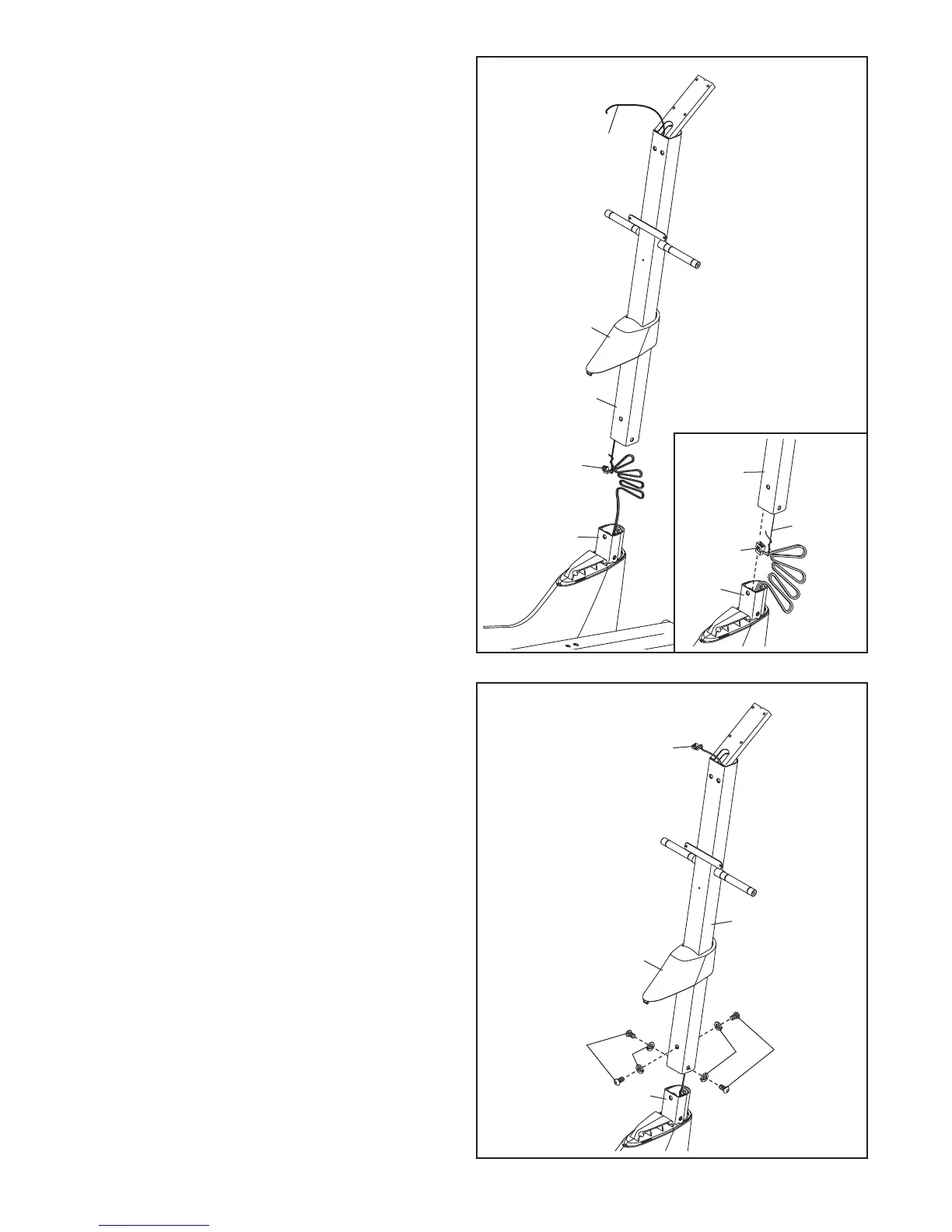

4. Orient the Upright (2) and the Top Shield Cover
(37) as shown. Slide the Top Shield Cover
upward onto the Upright.
Have a second person hold the Upright (2) near
the Frame (1).
See the inset drawing. Locate the wire tie in
the Upright (2). Tie the lower end of the wire tie
to the Wire Harness (42). Next, pull the upper
end of the wire tie upward out of the top of the
Upright. Then, untie and discard the wire tie.
Tip: To prevent the Wire Harness (42) from
falling into the Upright (2), secure the Wire
Harness with a rubber band or a piece of
tape.
2
42
37
