NordicTrack E4.1 Elliptical User Manual

11

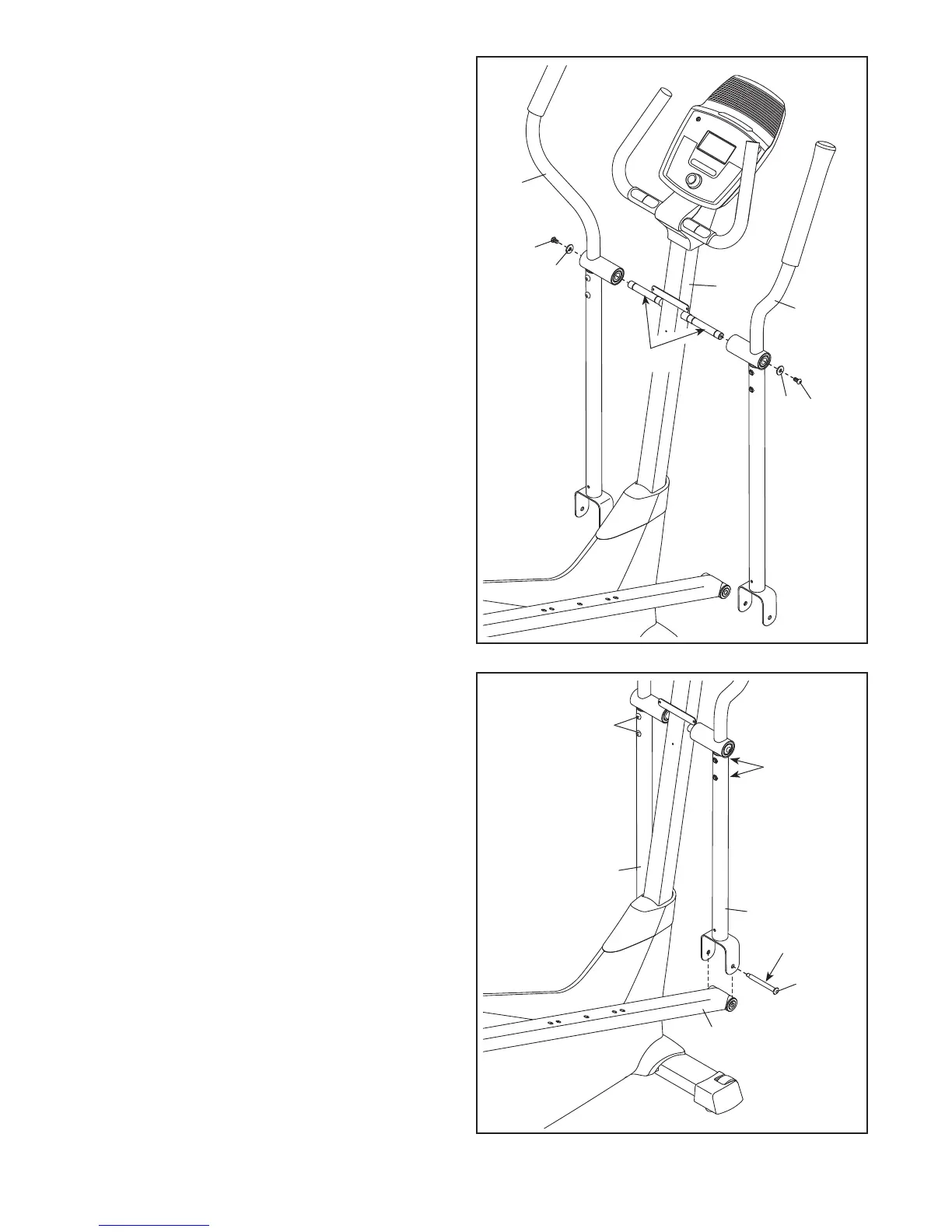

10. Apply a generous amount of the included grease
to the axles on the Upright (2).
Orient the Left and Right Upper Body Arms (8, 9)
as shown, and slide them onto the left and right
sides of the Upright (2).
Attach each Upper Body Arm (8, 9) with an
M8 x 20mm Screw (80) and an M8 Washer (33).
10
2
33
80
80
33
8
9
Grease
11. Apply a small amount of grease to a Shoulder
Bolt (31).
While a second person holds the front end of the
Right Pedal Arm (49) inside the bracket on the
right Upper Body Leg (6), insert the Shoulder
Bolt (31) through the right Upper Body Leg and
the Right Pedal Arm.
Tighten the Shoulder Bolt (31) into the welded
nut on the right Upper Body Leg (6).
Repeat this step to attach the Left Pedal Arm
(not shown) to the left Upper Body Leg (6).
Tighten the M8 x 45mm Bolts (76).
31
76
76
49
11
6
6
Grease
