12

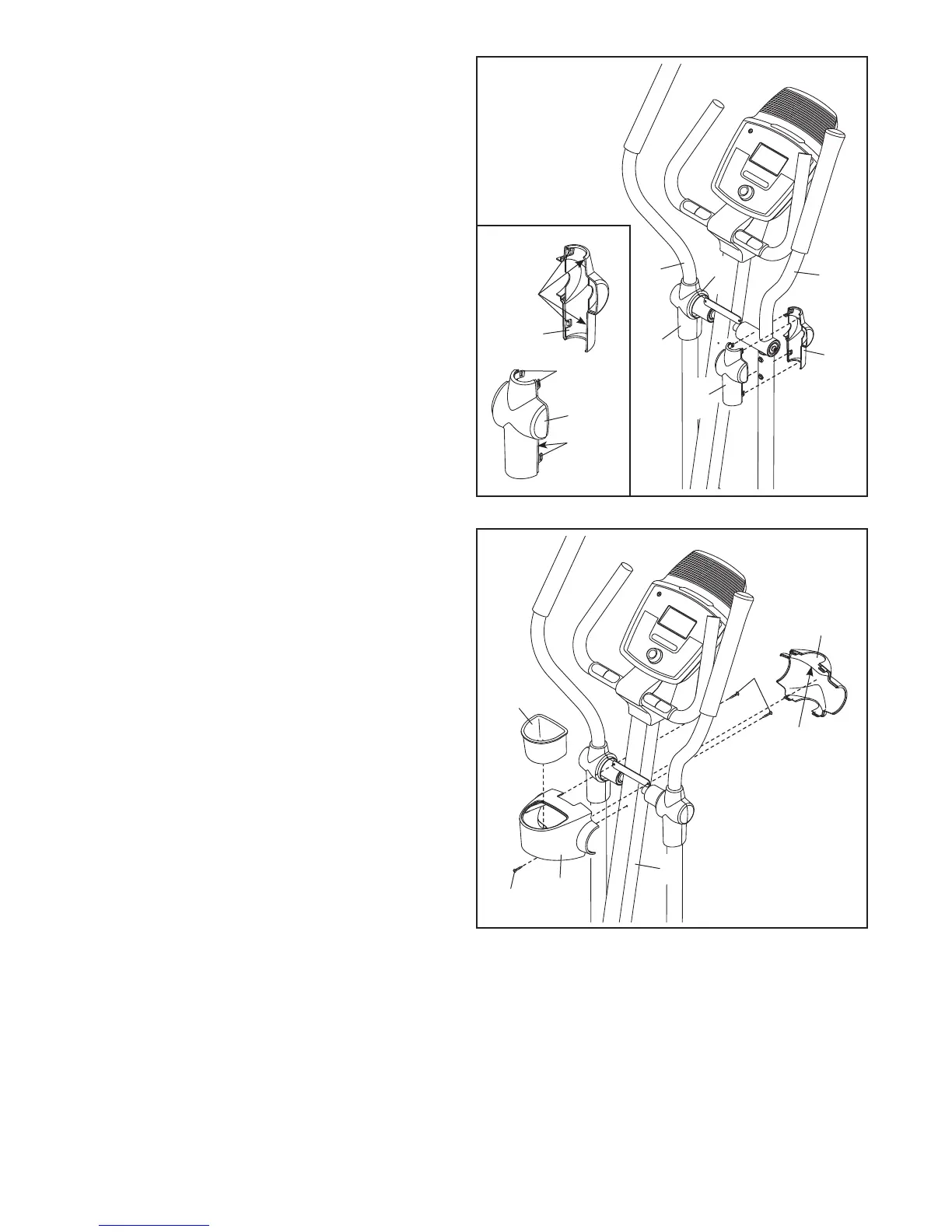

12. See the inset drawing. Identify a Pivot Cover A
(19), which has hooks, and a Pivot Cover B (22),
which has tabs.
Press a Pivot Cover A (19) and a Pivot Cover
B (22) together around the Right Upper Body
Arm (9).
Repeat this step for the other side of the
elliptical.
Tip: Make sure that the Pivot Covers (19, 22)
are positioned as shown.
13
13. Attach the Rear Upright Cover (3) to the Upright
(2) with three M4 x 16mm Screws (92).
Orient the Front Upright Cover (16) so that the
indicated arrow is pointing upward.
Press the Front Upright Cover (16) into the Rear
Upright Cover (3).
Press the Water Bottle Holder (5) into the Rear
Upright Cover (3).
92
5
92
16
Arrow
3
2
12
22
22
9
8
19
Tabs
Hooks
Hooks
19
22
19
