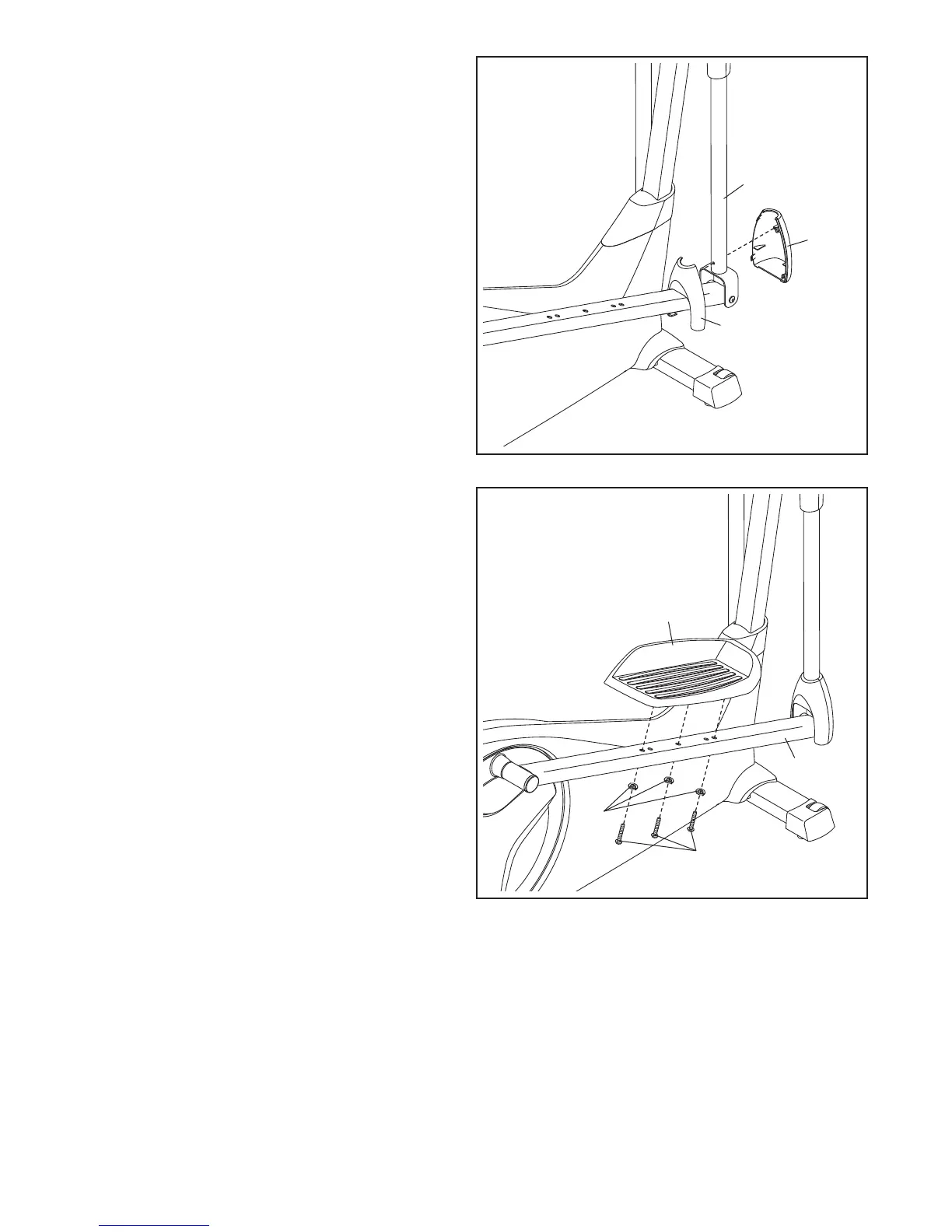

15. Identify the Right Pedal (13).
Attach the Right Pedal (13) to the Right Pedal
Arm (49) with three M10 x 48mm Screws (75)
and three M10 Split Washers (78). Make sure to
use the center hole and the two outer holes
to attach the Right Pedal.
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
14
20
21
14. Press a Front Leg Cover (20) and a Rear Leg
Cover (21) together around the right Upper Body
Leg (6).
Repeat this step for the other side of the
elliptical.
6
