12

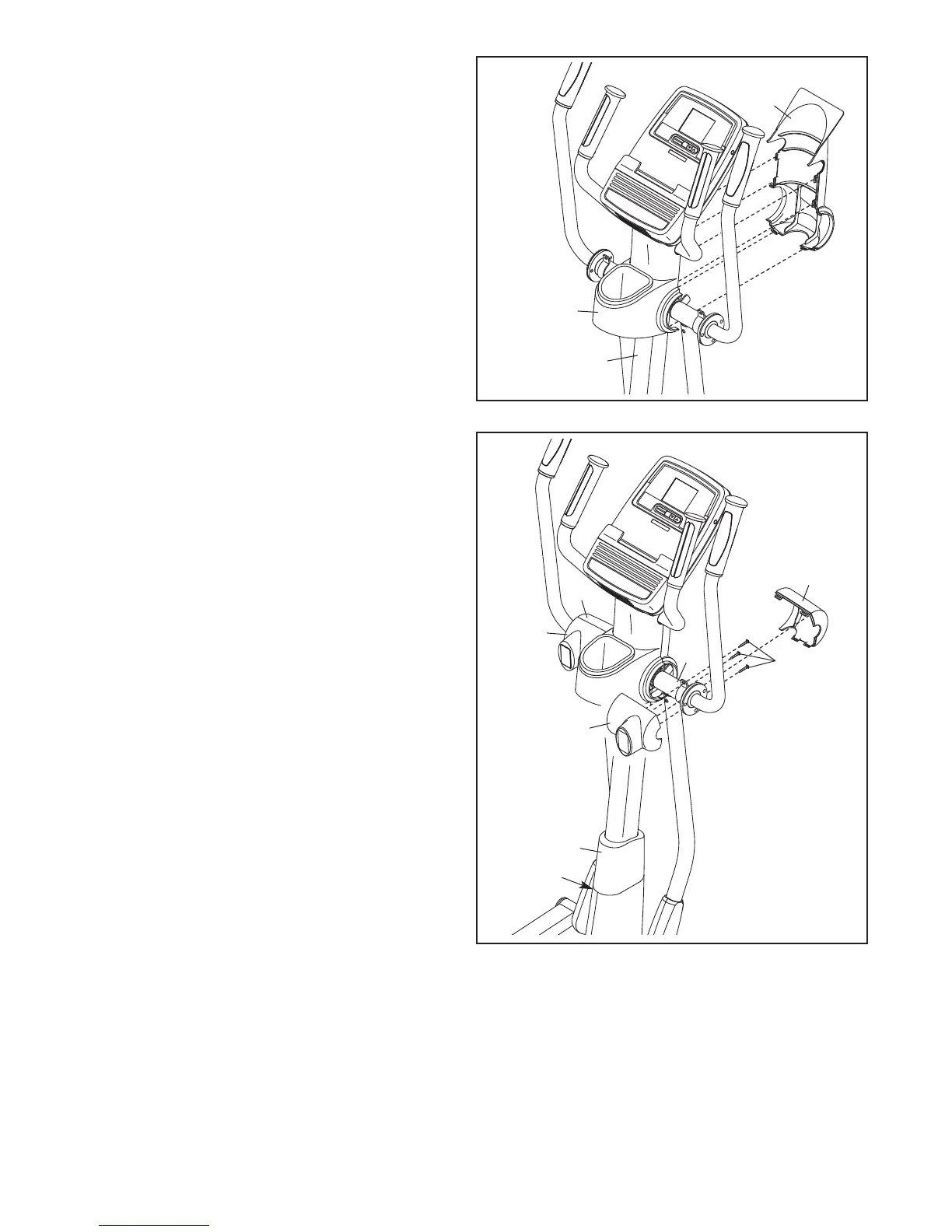

12. Attach the Front Upright Cover (25) around the
Upright (5) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (24).
13
14. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
12
13. Identify the Right Rear and Front Leg Covers
(29, 30), which are marked with “Right” stickers.
Attach the Right Rear Leg Cover (29) to the
Right Upper Body Leg (6) with three M4 x
16mm Round Head Screws (106).
Attach the Right Front Leg Cover (30) around
the Right Upper Body Leg (6) by pressing the
tabs on the Right Front Leg Cover into the Right
Rear Leg Cover (29).
Attach the Left Rear and Front Leg Covers
(31, 32) in the same way.
See step 3. Tighten the four M8 x 16mm Patch
Screws (102).
Then, slide the Top Cover (23) downward and
press it over the Frame (1).
30
29
31
32
6
106
24
5
2
5
23
1
