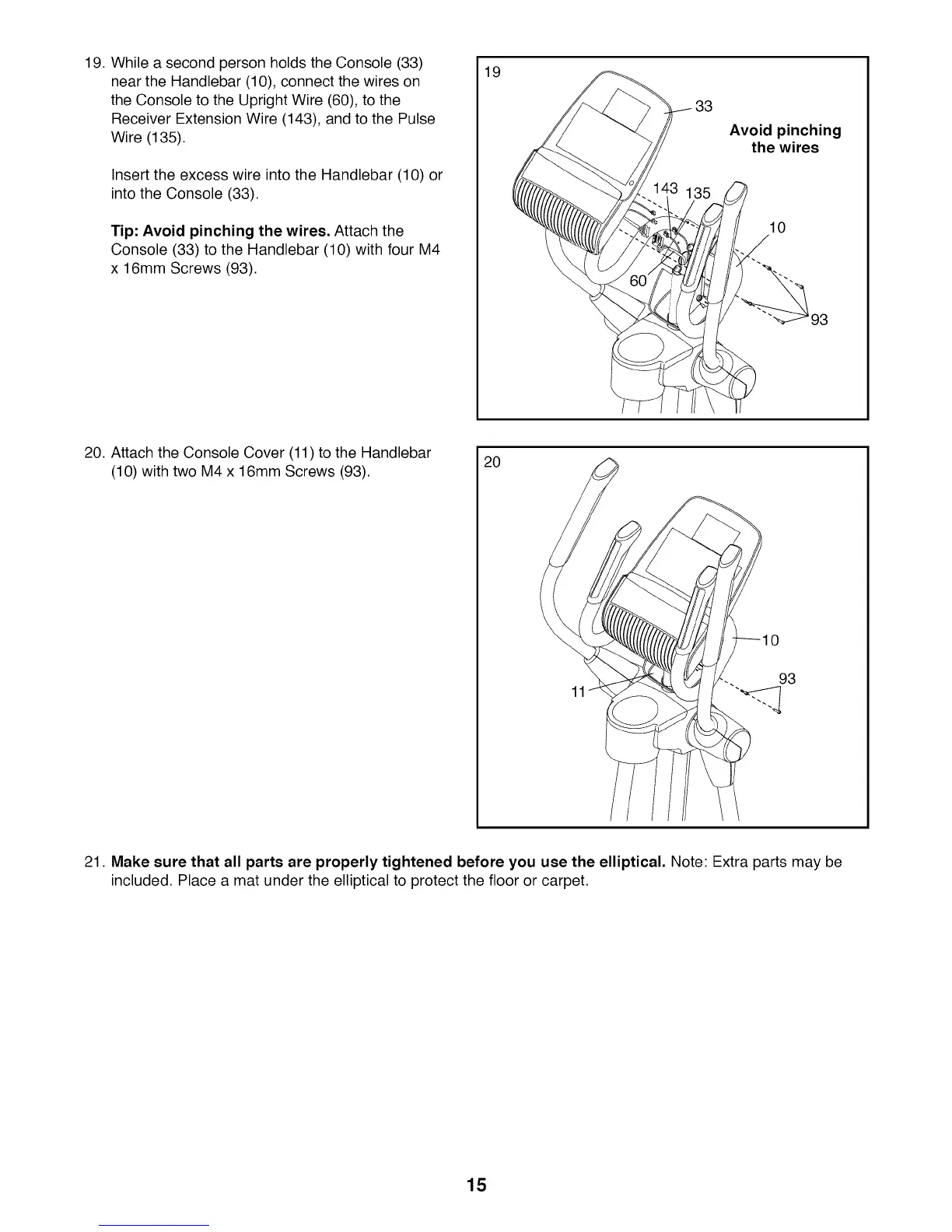

19. While a second person holds the Console (33)
near the Handlebar (10), connect the wires on
the Console to the Upright Wire (60), to the
Receiver Extension Wire (143), and to the Pulse
Wire (135).
Insert the excess wire into the Handlebar (10) or
into the Console (33).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Handlebar (10) with four M4
x 16mm Screws (93).
19
Avoid pinching
the wires
10
93
20. Attach the Console Cover (11) to the Handlebar
(10) with two M4 x 16mm Screws (93).
20
93
21. Make sure that all parts are properly tightened before you use the elliptical. Note: Extra parts may be
included. Place a mat under the elliptical to protect the floor or carpet.
15
