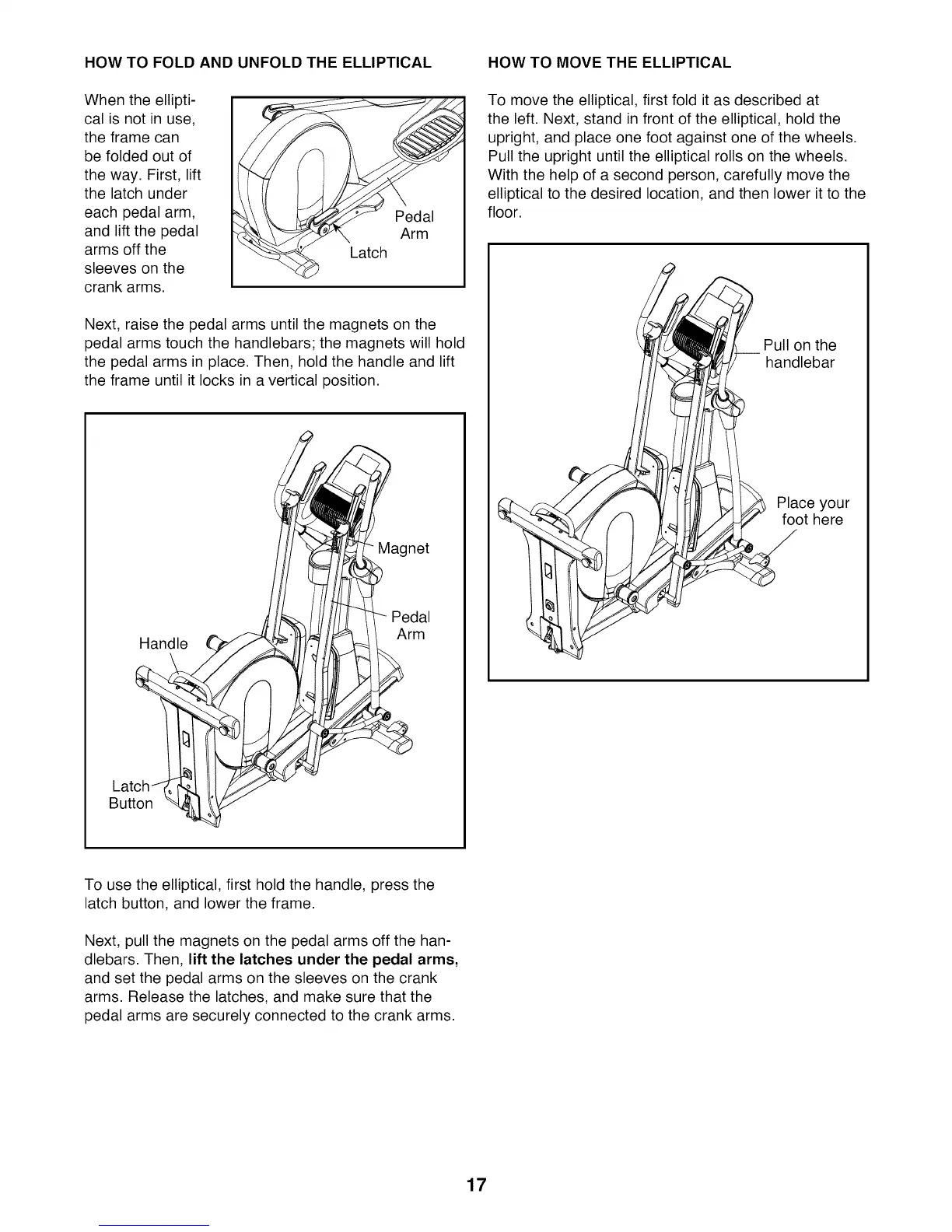

HOW TO FOLD AND UNFOLD THE ELLIPTICAL HOW TO MOVE THE ELLIPTICAL
When the ellipti-
cal is not in use,
the frame can
be folded out of
the way. First, lift
the latch under
each pedal arm,
and lift the pedal
arms off the
sleeves on the
crank arms.
Next, raise the pedal arms until the magnets on the
pedal arms touch the handlebars; the magnets will hold
the pedal arms in place. Then, hold the handle and lift
the frame until it locks in a vertical position.
Handle
Latch J 1
Button
agnet
IMH / - Pedal
To move the elliptical, first fold it as described at
the left. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the wheels.
With the help of a second person, carefully move the
elliptical to the desired location, and then lower it to the
floor.
_ Pul_ln_hae
__/_L _ Placeyour
_ foot here
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the magnets on the pedal arms off the han-
dlebars. Then, lift the latches under the pedal arms,
and set the pedal arms on the sleeves on the crank
arms. Release the latches, and make sure that the
pedal arms are securely connected to the crank arms.
17
