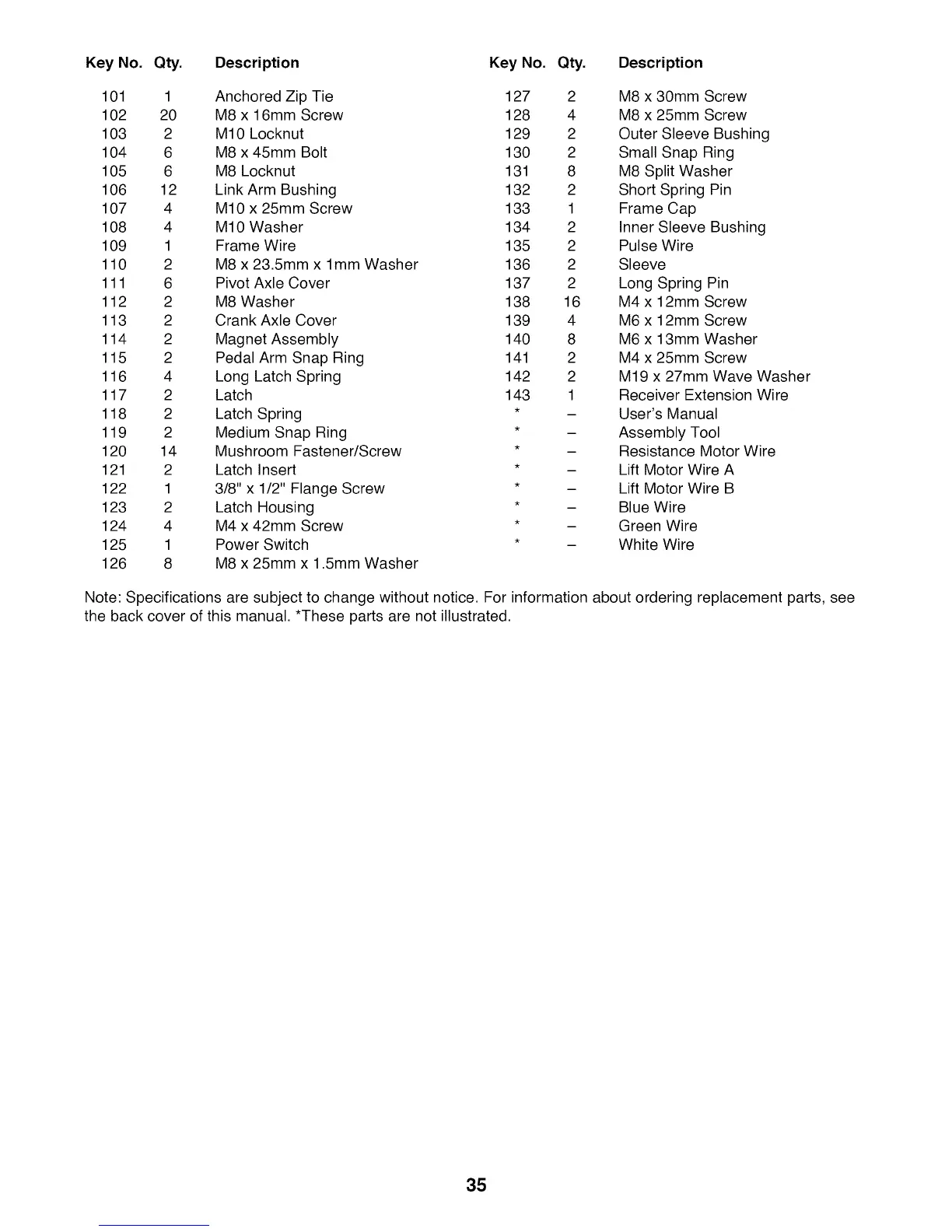

Key No. Qty. Description Key No. Qty. Description
101 1 Anchored Zip Tie 127 2 M8 x 30mm Screw
102 20 M8 x 16mm Screw 128 4 M8 x 25mm Screw
103 2 M10 Locknut 129 2 Outer Sleeve Bushing
104 6 M8 x 45mm Bolt 130 2 Small Snap Ring
105 6 M8 Locknut 131 8 M8 Split Washer
106 12 Link Arm Bushing 132 2 Short Spring Pin
107 4 M10 x 25mm Screw 133 1 Frame Cap
108 4 M10 Washer 134 2 Inner Sleeve Bushing
109 1 Frame Wire 135 2 Pulse Wire
110 2 M8 x 23.5mm x 1mm Washer 136 2 Sleeve
111 6 Pivot Axle Cover 137 2 Long Spring Pin
112 2 M8 Washer 138 16 M4 x 12mm Screw
113 2 Crank Axle Cover 139 4 M6 x 12mm Screw
114 2 Magnet Assembly 140 8 M6 x 13mm Washer
115 2 Pedal Arm Snap Ring 141 2 M4 x 25mm Screw
116 4 Long Latch Spring 142 2 M19 x 27mm Wave Washer
117 2 Latch 143 1 Receiver Extension Wire
118 2 Latch Spring * - User's Manual
119 2 Medium Snap Ring * - Assembly Tool
120 14 Mushroom Fastener/Screw * - Resistance Motor Wire
121 2 Latch Insert * - Lift Motor Wire A
122 1 3/8" x 1/2" Flange Screw * - Lift Motor Wire B
123 2 Latch Housing * - Blue Wire
124 4 M4 x 42mm Screw * - Green Wire
125 1 Power Switch * - White Wire
126 8 M8 x 25mm x 1.5mm Washer
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
