11
11

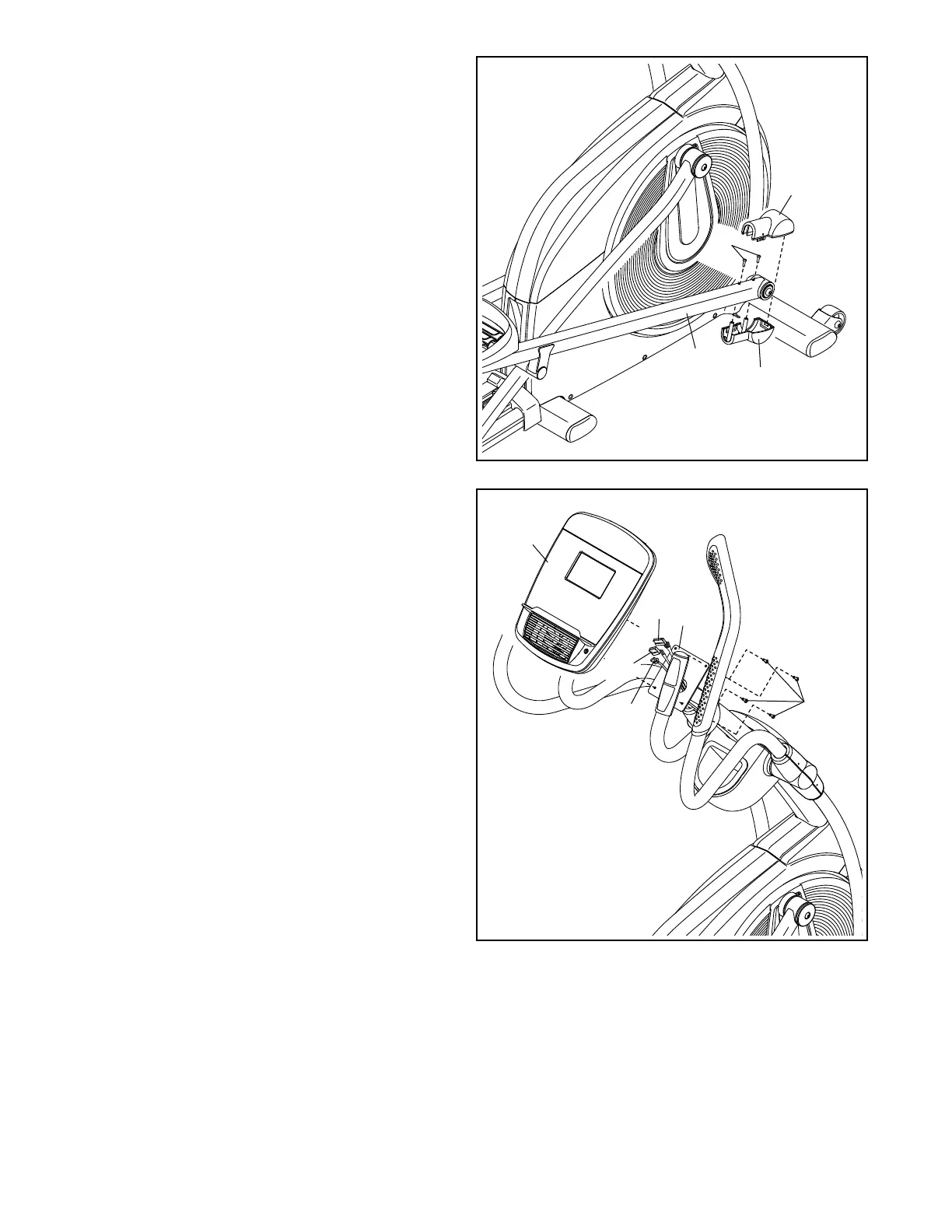

11. Identify the Right Pedal Arm Cover A (41) and
the Right Pedal Arm Cover B (42) and orient
them as shown.
Attach the Right Pedal Arm Cover B (42) to
the Right Pedal Arm (37) with two M4 x 16mm
Screws (97).
Then, press the Right Pedal Arm Cover A (41)
onto the Right Pedal Arm Cover B (42).
Repeat this step on the other side of the
elliptical.
41
97
37
42
4
8
12
12. While a second person holds the Console (8)
near the Upright (4), plug the Upper Wire (116),
the Pulse Wire (117), and the Receiver Wire
(112) into the matching receptacles on the back
of the Console.
The connectors on the Upper Wire (116), the
Pulse Wire (117), and the Receiver Wire (112)
should slide easily into the receptacles and
snap into place. If a connector does not slide
easily into a receptacle, turn the connector and
try again. If you do not connect the connectors
properly, the console may become damaged.
Tip: Avoid pinching the wires. Attach the
Console (8) to the Upright (4) with four M4 x
16mm Screws (97).
Avoid pinching
the wires
116
97
112
117
