NordicTrack e9.5 User Manual

10
25
26
110
108
Hexagonal
Holes

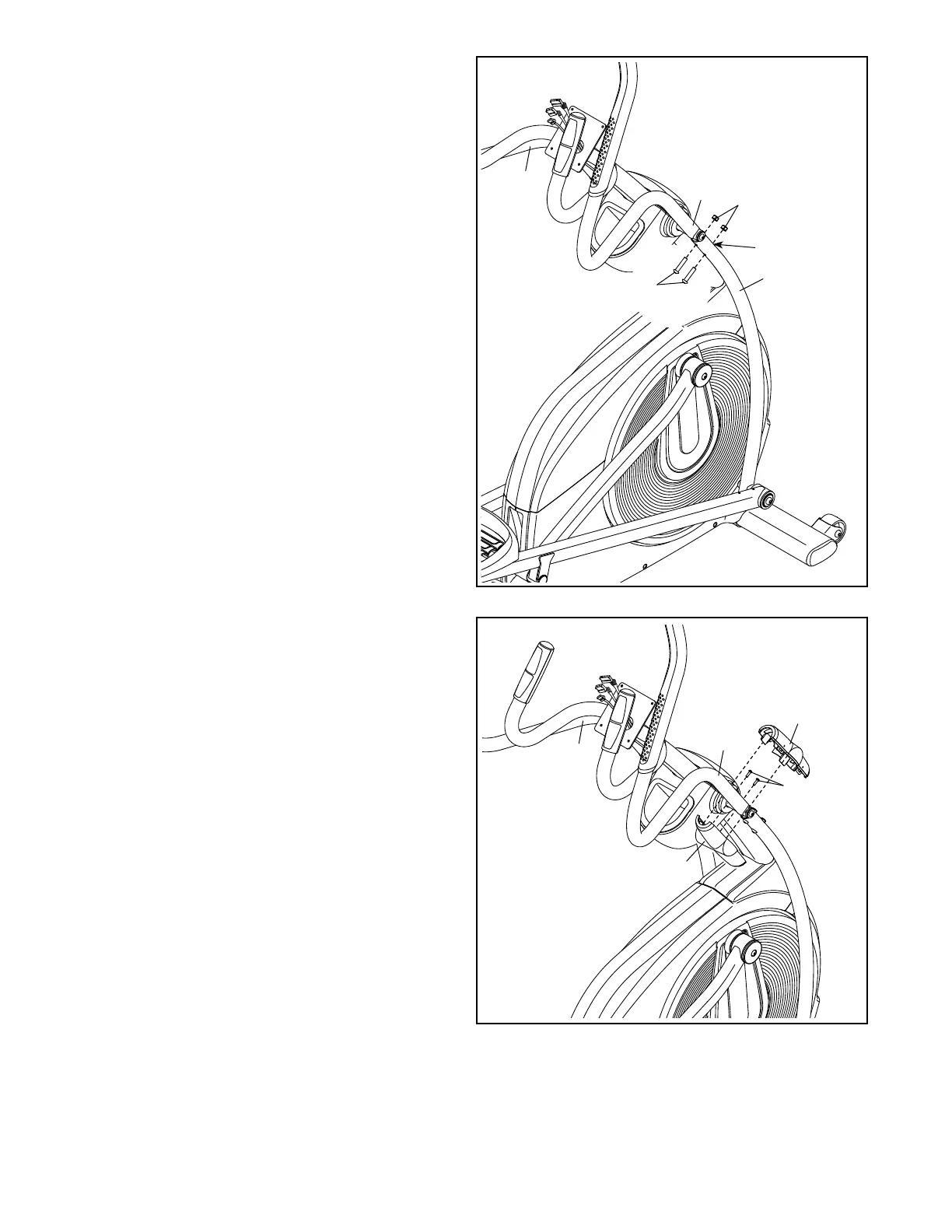

9. Insert the Right Upper Body Arm (25) into the
Right Upper Body Leg (26).
Attach the Right Upper Body Arm (25) with two
M8 x 38mm Bolts (108) and two M8 Locknuts
(110). Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step to attach the Left Upper
Body Arm (27) to the Left Upper Body Leg
(not shown).
10. Identify an Upper Body Cover A (31) and an
Upper Body Cover B (32) and orient them as
shown.
Attach the Upper Body Cover B (32) to the
Right Upper Body Arm (25) with two M4 x 16mm
Screws (97).
Then, press the Upper Body Cover A (31) onto
the Upper Body Cover B (32).
Repeat this step on the other side of the
elliptical.
31
32
97
25
10
27
27
9
