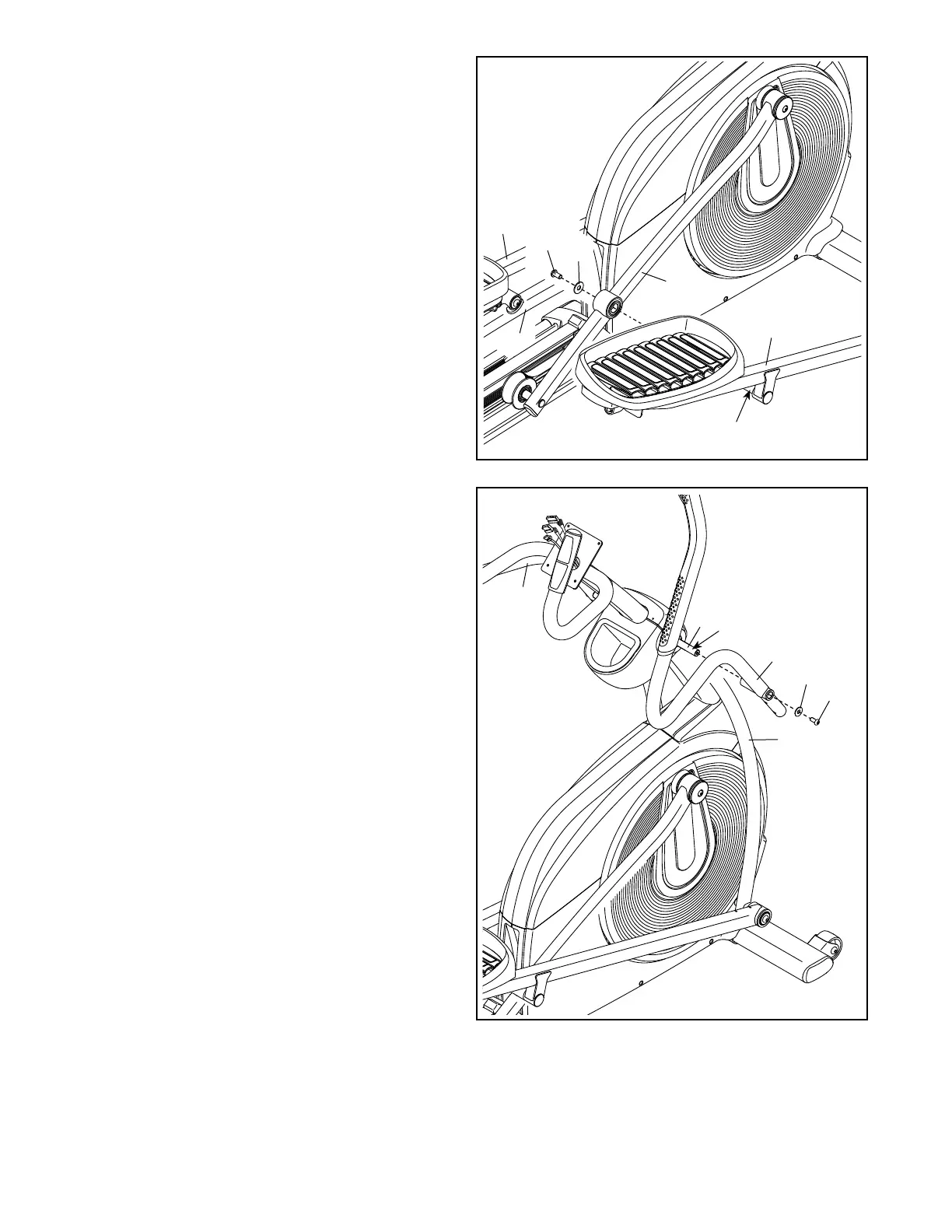

8. Identify the Right Upper Body Arm (25) and ori-
ent it as shown. Do not insert the Right Upper
Body Arm into the Right Upper Body Leg (26)
yet.
Apply some of the included grease to the axle on
the right side of the Upright (4).
Slide the Right Upper Body Arm (25) onto the
right side of the Upright (4). Attach the Right
Upper Body Arm with an M8 x 18mm Screw
(109) and an M8 Washer (103).
Repeat this step to attach the Left Upper
Body Arm (27) to the Upright (4).
25
27
4
103
109
Grease
26
8
39
38
107
111
40
7. Apply some of the included grease to the axle on
the Right Pedal Arm (37).
Insert the axle on the Right Pedal Arm (37) into
the Right Roller Arm (39).
Then, tighten an M10 x 20mm Screw (107) with
an M10 Washer (111) into the end of the Right
Pedal Arm (37).
Repeat this step to attach the Left Pedal Arm
(38) to the Left Roller Arm (40).
37
Grease
To Next Page
