8
5

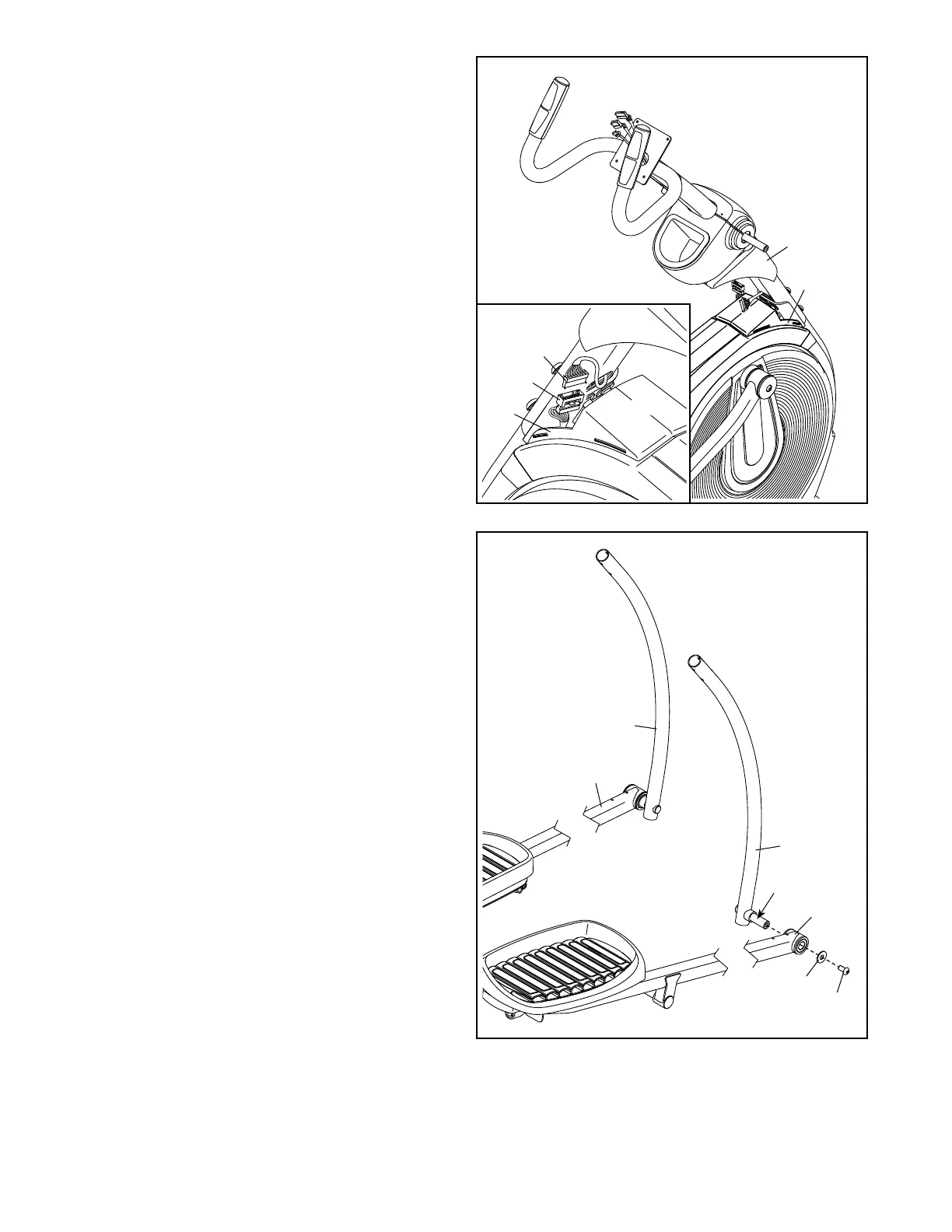

5. See the inset drawing. Connect the Upper Wire
(116) to the Lower Wire (115). Press the connec-
tors downward into the Shield Cover (30).
Then, press the Upright Cover (23) onto the
Shield Cover (30).
6
6. Identify the Right Upper Body Leg (26) and the
Right Pedal Arm (37) and orient them as shown.
Using a plastic bag to keep your fingers clean,
apply some of the included grease to the axle on
the Right Upper Body Leg (26).
Slide the Right Pedal Arm (37) onto the Right
Upper Body Leg (26). Attach the Right Pedal
Arm with an M10 x 20mm Screw (107) and an
M10 Washer (111).
Repeat this step to attach the Left Pedal Arm
(38) to the Left Upper Body Leg (28).
26
28
38
37
107
111
Grease
23
30
116
115
30
