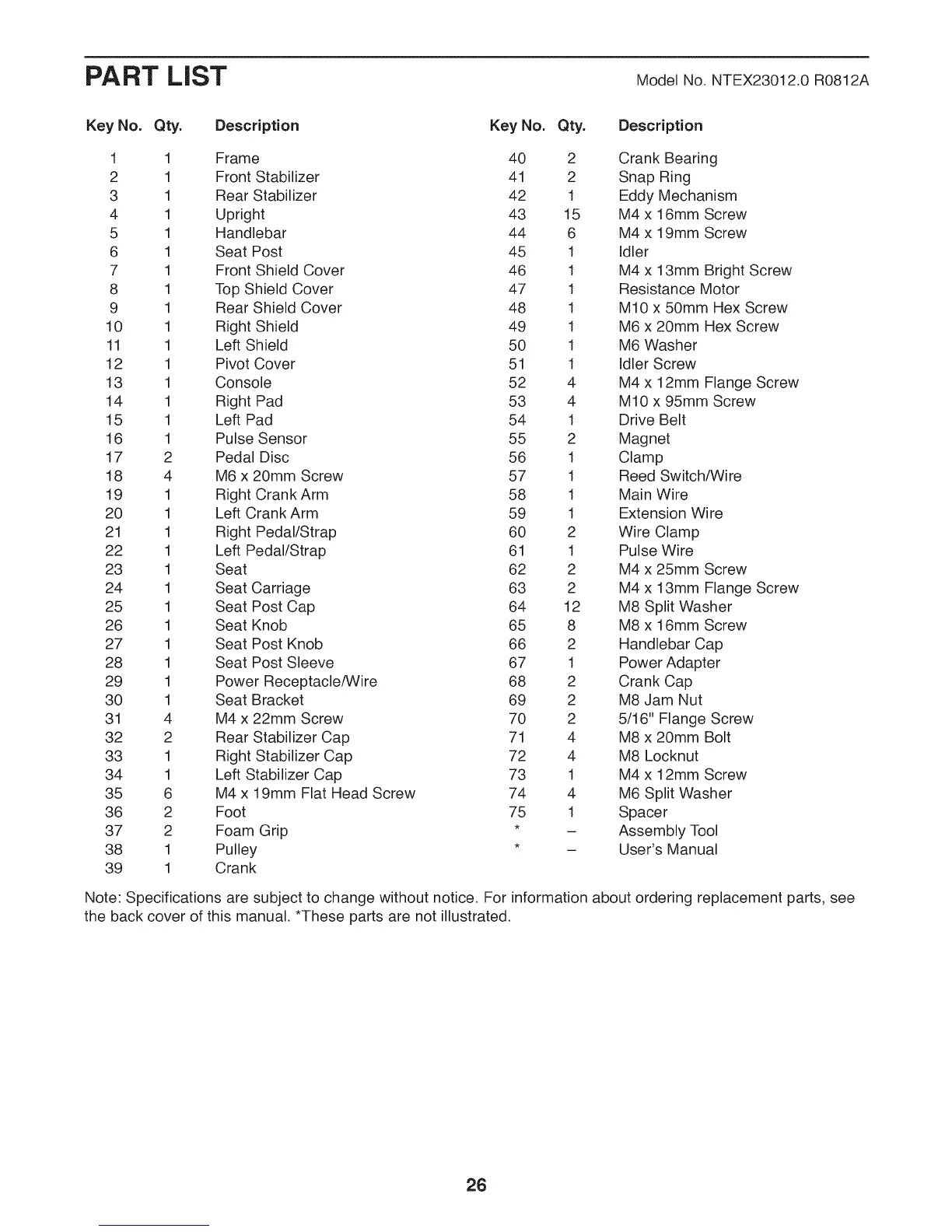

PART LIST Model No. NTEX23012.0 R0812A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 40 2 Crank Bearing
2 1 Front Stabilizer 41 2 Snap Ring
3 1 Rear Stabilizer 42 1 Eddy Mechanism
4 1 Upright 43 15 M4 x 16mm Screw
5 1 Handlebar 44 6 M4 x 19mm Screw
6 1 Seat Post 45 1 Idler
7 1 Front Shield Cover 46 1 M4 x 13mm Bright Screw
8 1 Top Shield Cover 47 1 Resistance Motor
9 1 Rear Shield Cover 48 1 M10 x 50mm Hex Screw
10 1 Right Shield 49 1 M6 x 20mm Hex Screw
11 1 Left Shield 50 1 M6 Washer
12 1 Pivot Cover 51 1 Idler Screw
13 1 Console 52 4 M4 x 12mm Flange Screw
14 1 Right Pad 53 4 M10 x 95mm Screw
15 1 Left Pad 54 1 Drive Belt
16 1 Pulse Sensor 55 2 Magnet
17 2 Pedal Disc 56 1 Clamp
18 4 M6 x 20mm Screw 57 1 Reed Switch/Wire
19 1 Right Crank Arm 58 1 Main Wire
20 1 Left Crank Arm 59 1 Extension Wire
21 1 Right Pedal/Strap 60 2 Wire Clamp
22 1 Left Pedal/Strap 61 1 Pulse Wire
23 1 Seat 62 2 M4 x 25mm Screw
24 1 Seat Carriage 63 2 M4 x 13mm Flange Screw
25 1 Seat Post Cap 64 12 M8 Split Washer
26 1 Seat Knob 65 8 M8 x 16mm Screw
27 1 Seat Post Knob 66 2 Handlebar Cap
28 1 Seat Post Sleeve 67 1 Power Adapter
29 1 Power Receptacle/Wire 68 2 Crank Cap
30 1 Seat Bracket 69 2 M8 Jam Nut
31 4 M4 x 22mm Screw 70 2 5/16" Flange Screw
32 2 Rear Stabilizer Cap 71 4 M8 x 20mm Bolt
33 1 Right Stabilizer Cap 72 4 M8 Locknut
34 1 Left Stabilizer Cap 73 1 M4 x 12mm Screw
35 6 M4 x 19mm Flat Head Screw 74 4 M6 Split Washer
36 2 Foot 75 1 Spacer
37 2 Foam Grip * - Assembly Tool
38 1 Pulley * - User's Manual
39 1 Crank
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
