14. Plug the Power Adapter (30) into the receptacle
on the frame of the exercise bike.
Note: To plug the Power Adapter (30) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 14.
15. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat under the exercise bike to protect the floor or carpet.
14

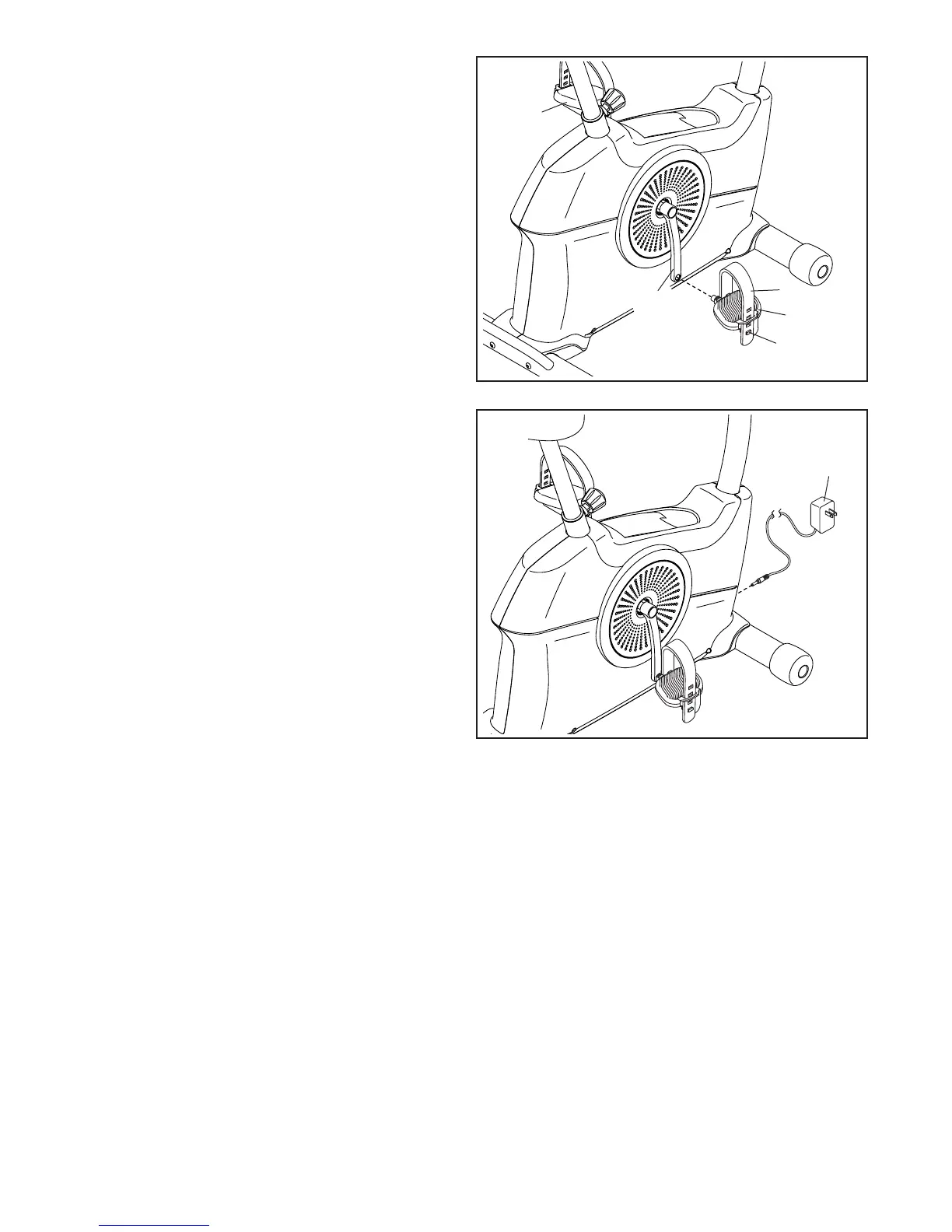

13. Identify the Right Pedal (60).
Using an adjustable wrench, firmly tighten the
Right Pedal (60) clockwise into the Right Crank
Arm (59).
Firmly tighten the Left Pedal (32) coun-
terclockwise into the Left Crank Arm (not
shown). IMPORTANT: You must turn the Left
Pedal counterclockwise to attach it.
Adjust the strap on the Right Pedal (60) to the
desired position, and press the ends of the strap
(H) onto the tabs (I) on the Right Pedal. Adjust
the strap on the Left Pedal (not shown) in the
same way.
I
H
59
To Next Page
