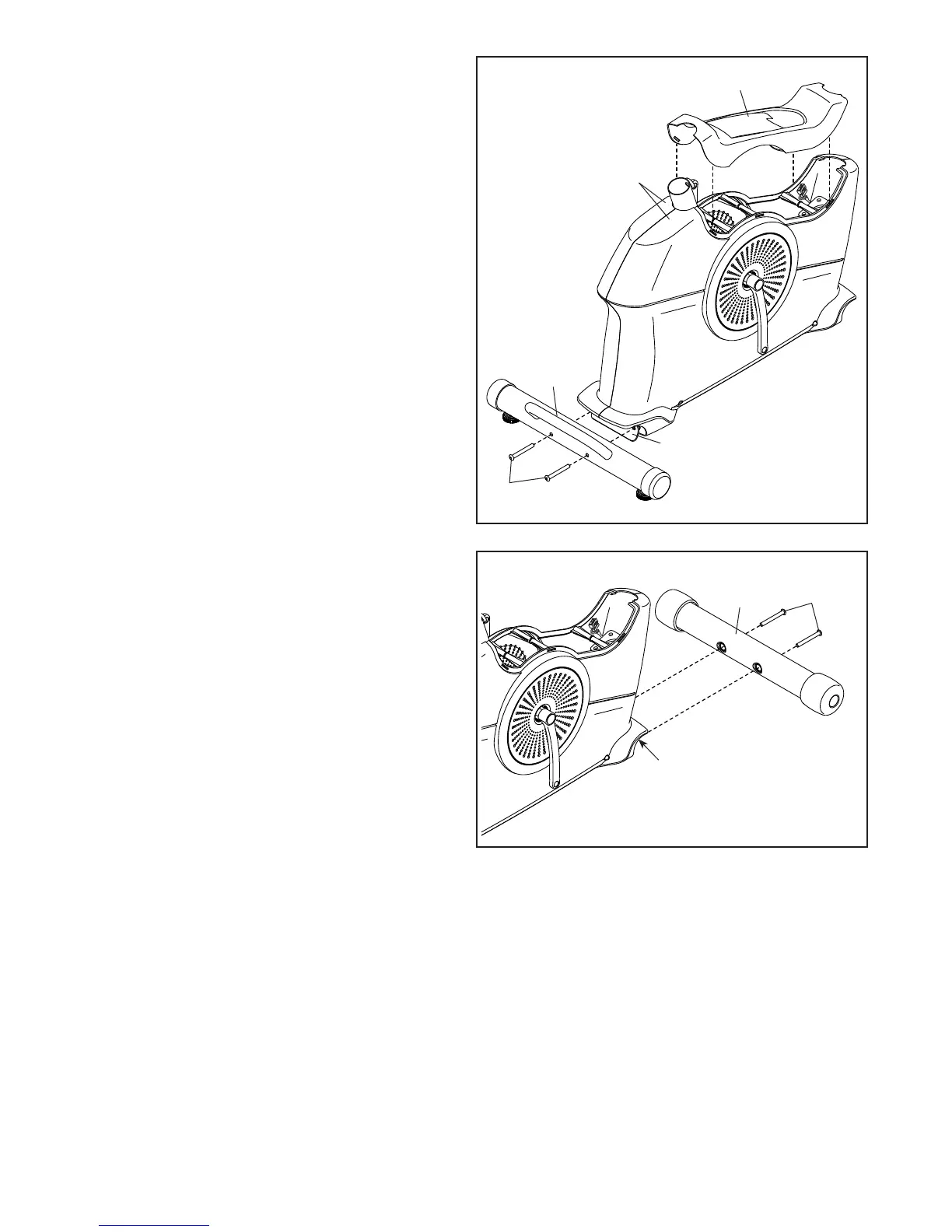

2. Using a standard screwdriver, remove the Shield
Cover (26) from the Left and Right Shields
(37, 58).
If there are shipping tubes (not shown) attached
to the rear of the Frame (1), remove and discard
the shipping screws and the shipping tubes.
Next, set a sturdy piece of packing material
under the rear of the Frame (50). Have a sec-
ond person hold the Frame to prevent it from
tipping while you complete this step.
Identify the Rear Stabilizer (44), which has a
handle.
Attach the Rear Stabilizer (44) to the Frame (50)
with two M8 x 70mm Screws (46).
Then, remove the packing material from under
the rear of the Frame (50).
2
44
26
37, 58
46
50
3. If there are shipping tubes (not shown) attached
to the front of the Frame (1), remove and discard
the shipping screws and the shipping tubes.
Next, set a sturdy piece of packing material
under the front of the Frame (50).
Attach the Front Stabilizer (63) to the Frame (50)
with two M8 x 70mm Screws (46).
Then, remove the packing material from under
the front of the Frame (50).
3
63
46
50
