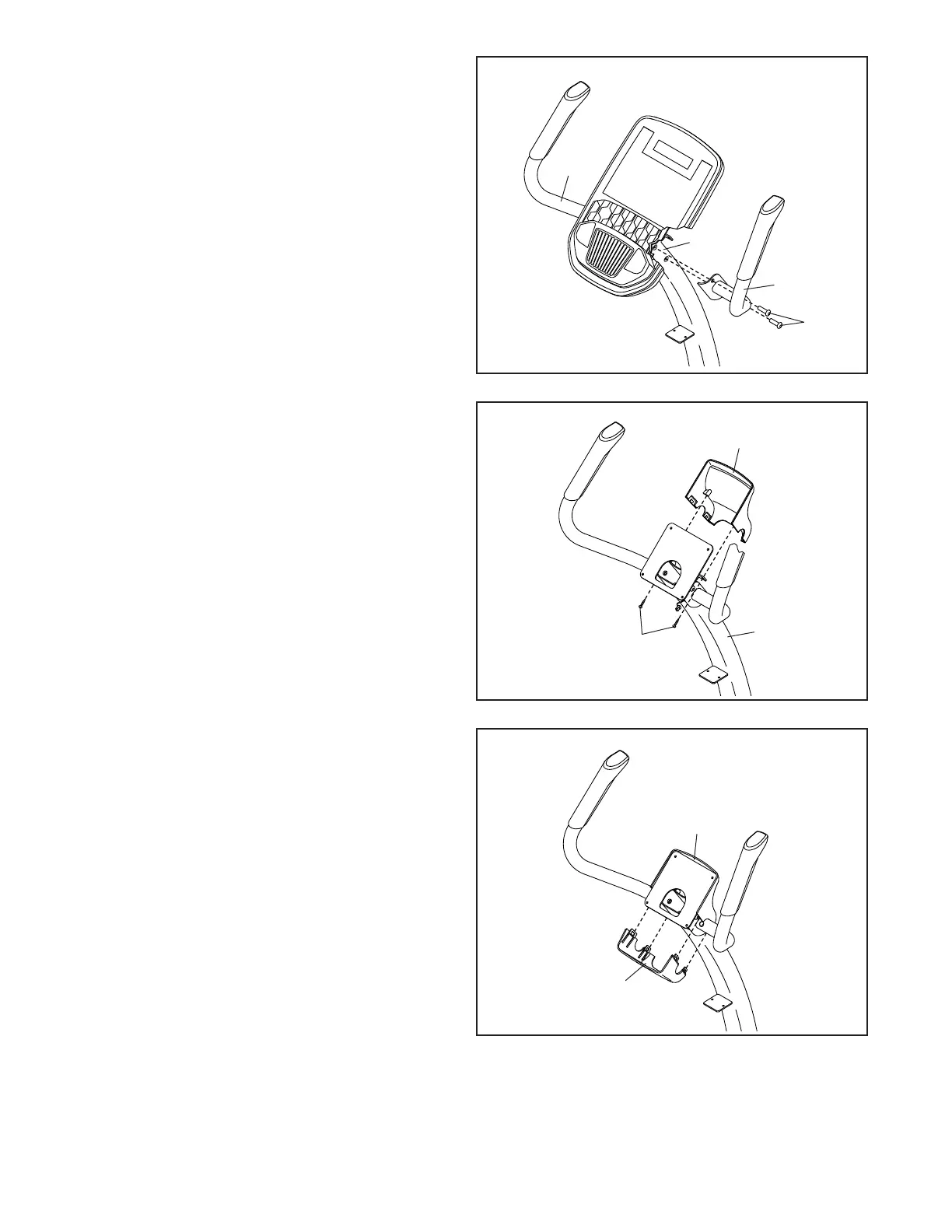

12. Have a second person hold the Right Handlebar
(5) near the Upright (4).
Attach the Right Handlebar (5) to the Upright (4)
with two M8 x 16mm Screws (63); start both
Screws, and then tighten them.
Repeat this step with the Left Handlebar (14).
12
63
14
5
4
13
12
4
34
13. Note: For clarity, the console is not shown in
this step.
Attach the Front Console Cover (12) to
the Upright (4) with two M4 x 18mm Truss
Screws (34).
14. Note: For clarity, the console is not shown in
this step.
Press the Rear Console Cover (15) onto the
Front Console Cover (12).
14
15
12
