9. Do not pinch the wires during this step.

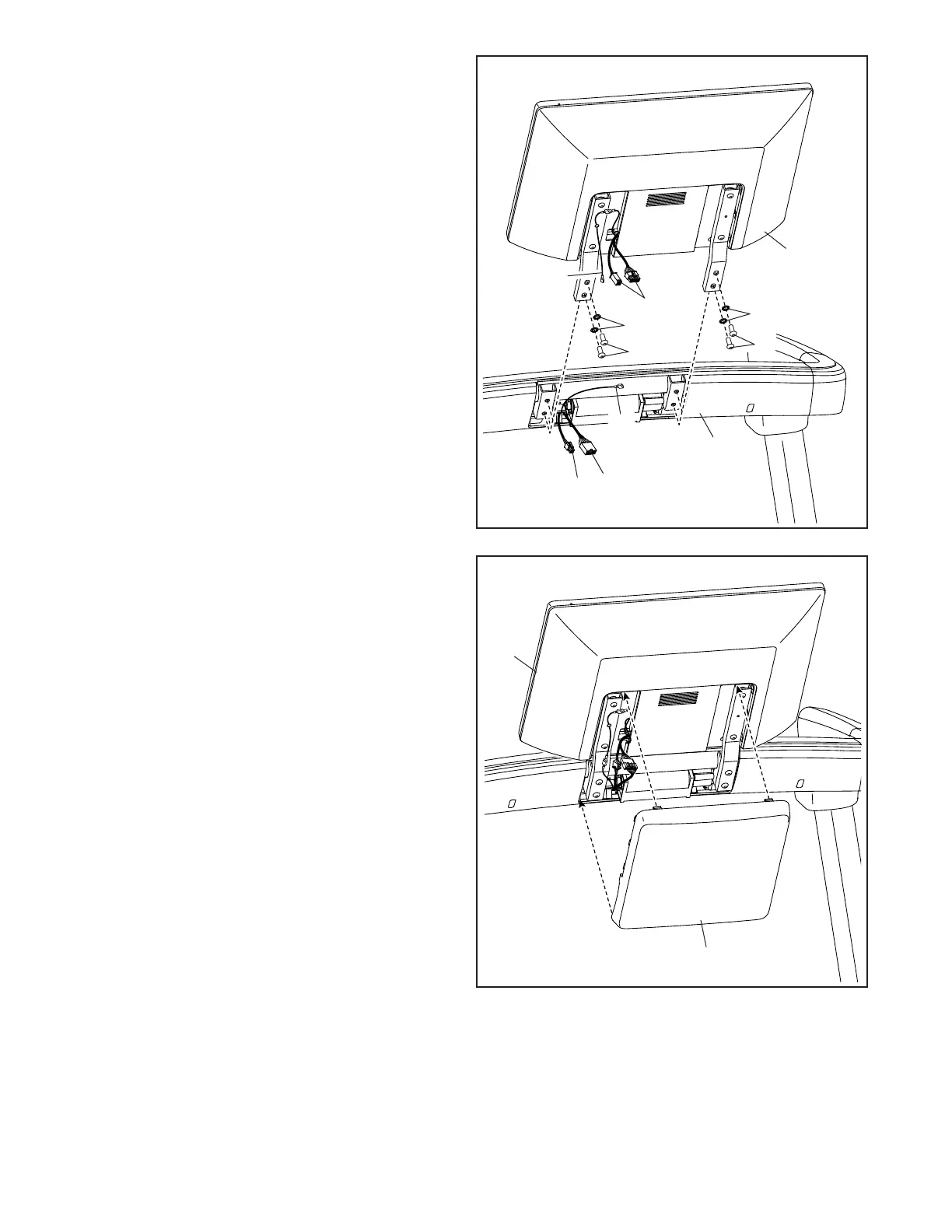

Press the Console Cover (96) onto the back of
the console assembly (L) until all four corners
snap into place; it may be helpful to lightly hit the
corners of the Console Cover with the palm of
your hand.
8
8. Do not pinch the wires (I, J, K, 83, 98) during
this step. Attach the console assembly (L) to
the handrail assembly (G) with four 5/16" x 1"
Screws (4) and four 5/16" Star Washers (7);
start all four Screws, and then tighten them.
Next, connect the Handrail Wire (83) and the
primary console wire (I) to the matching console
wires (J). IMPORTANT: Slide the wire connec-
tors together until they snap into place with
an audible click.
Then, connect the two Ground Wires (98, K).
83
4
7
7
I
K
G
L
J
98
4
