13. Firmly tighten the two 3/8" x 2 1/4" Screws (2)
and the two 3/8" x 1 1/4" Screws (1) in the Right
Upright (85).
Repeat this step on the left side of the
treadmill.
13
85
1
1
2

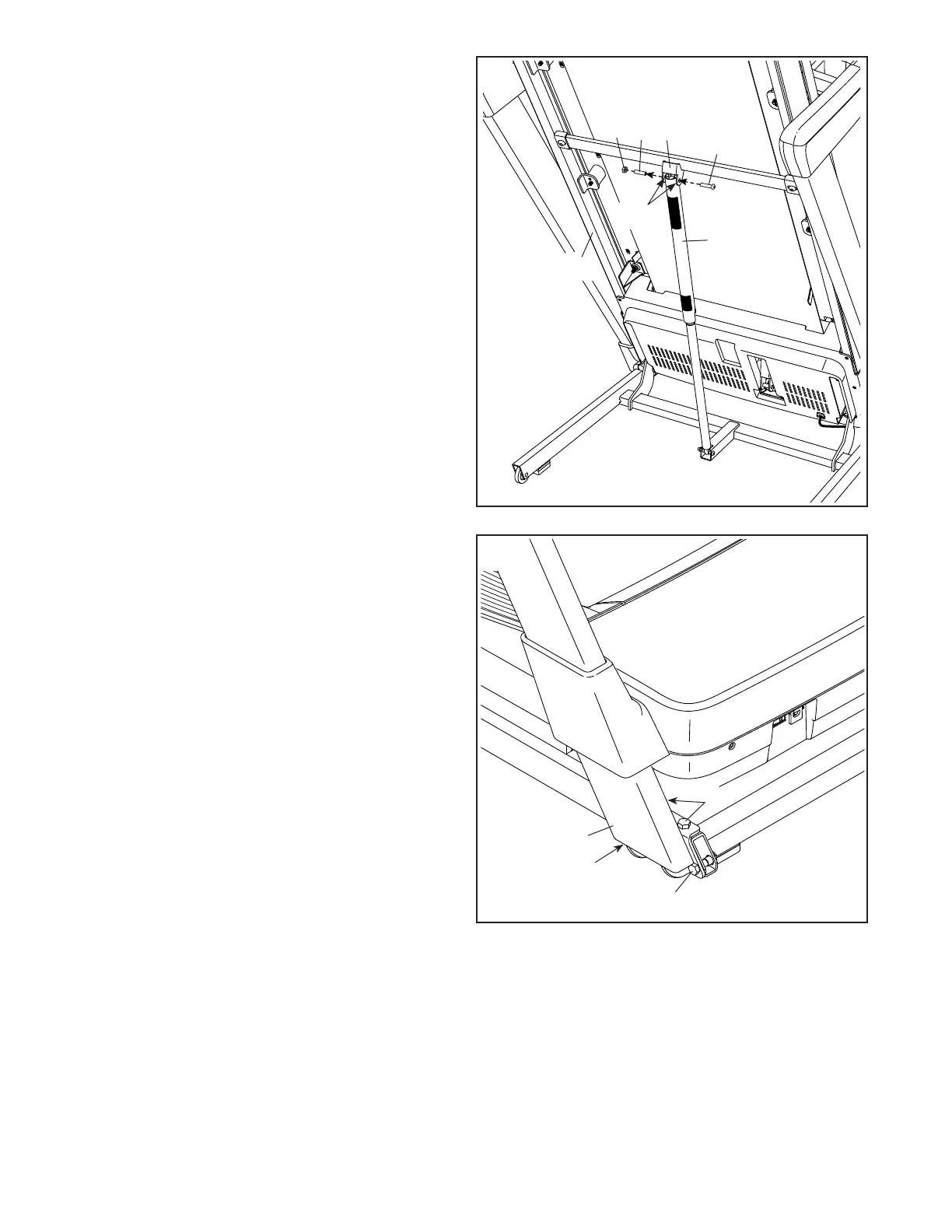

12. Remove the 5/16" Nut (34) and the 5/16" x
2 1/4" Bolt (23) from the bracket on the Latch
Crossbar (53).
Next, align the upper end of the Storage Latch
(56) with the bracket on the Latch Crossbar (53),
and insert the 5/16" x 2 1/4" Bolt (23) through the
bracket and the Storage Latch. This will push a
spacer (P) out of the Storage Latch; discard
the spacer. Note: If one of the 5/16" Bushings
(50) comes out, reinsert it.
Next, tighten the 5/16" Nut (34) onto the
5/16" x 2 1/4" Bolt (23). Do not overtighten the
Nut; the Storage Latch (56) must be able to
pivot.
Then, lower the Frame (57) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 25).
53
23
34
P
56
12
57
50
