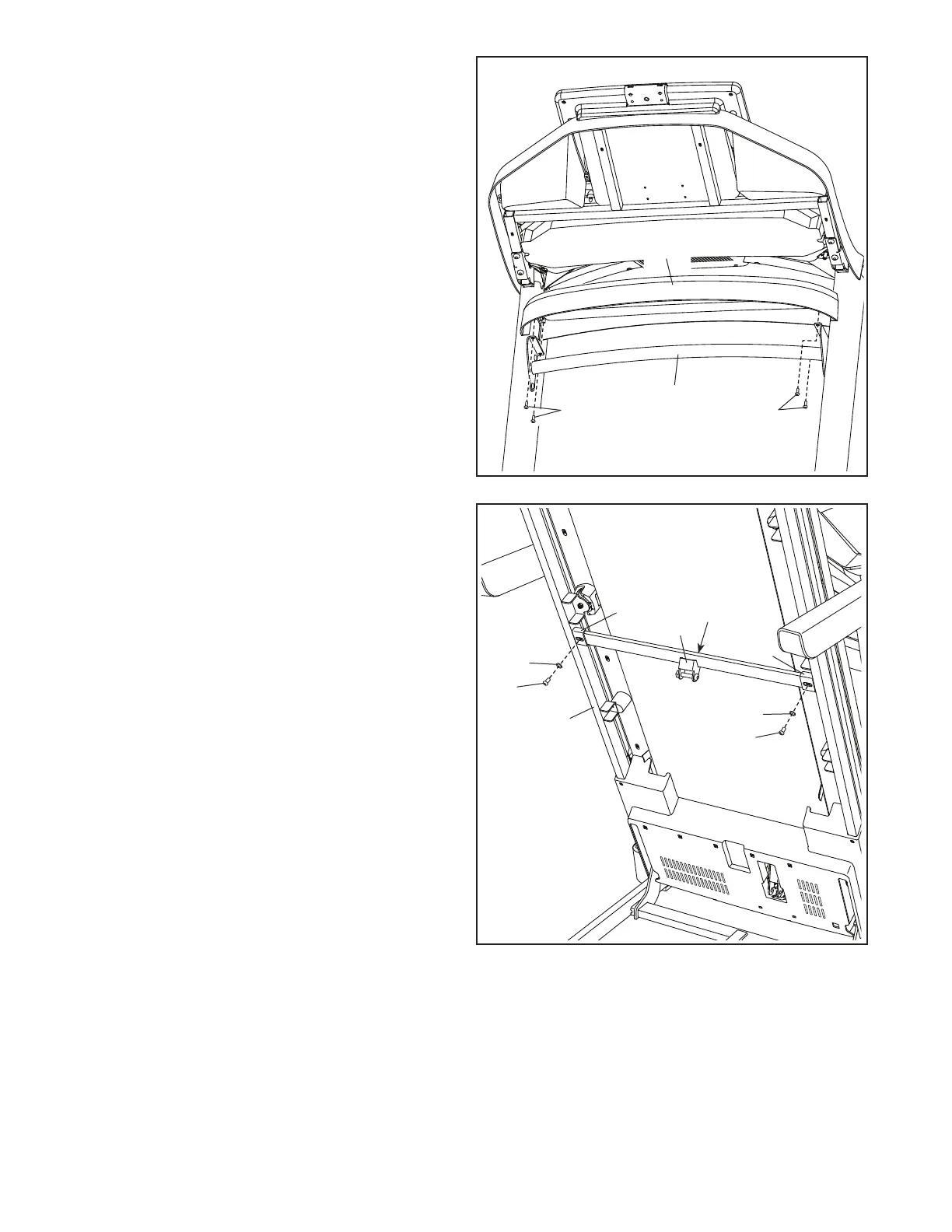

14. Attach the Tray (88) to the Upright Crossbar
(89) with four #8 x 1/2" Screws (2); start all four
Screws, and then tighten them. Do not over-
tighten the Screws.
14
2
89
2
88
15
15. Note: If the treadmill is assembled on a
smooth surface, it may roll forward in this
step.
Remove the two 5/16" x 3/4" Screws (9) from the
Latch Crossbar (55).
Raise the Frame (59) to the upright position.
Have a second person hold the Frame until
step 17 is completed.
Orient the Latch Crossbar (55) as shown. Make
sure that the “This side toward belt” sticker
(K) is facing the treadmill. Attach the Latch
Crossbar to the brackets (L) on the Frame (59)
with the two 5/16" x 3/4" Screws (9) that you just
removed and two 5/16" Star Washers (12).
59
55
K
L
L
9
9
12
12
