14

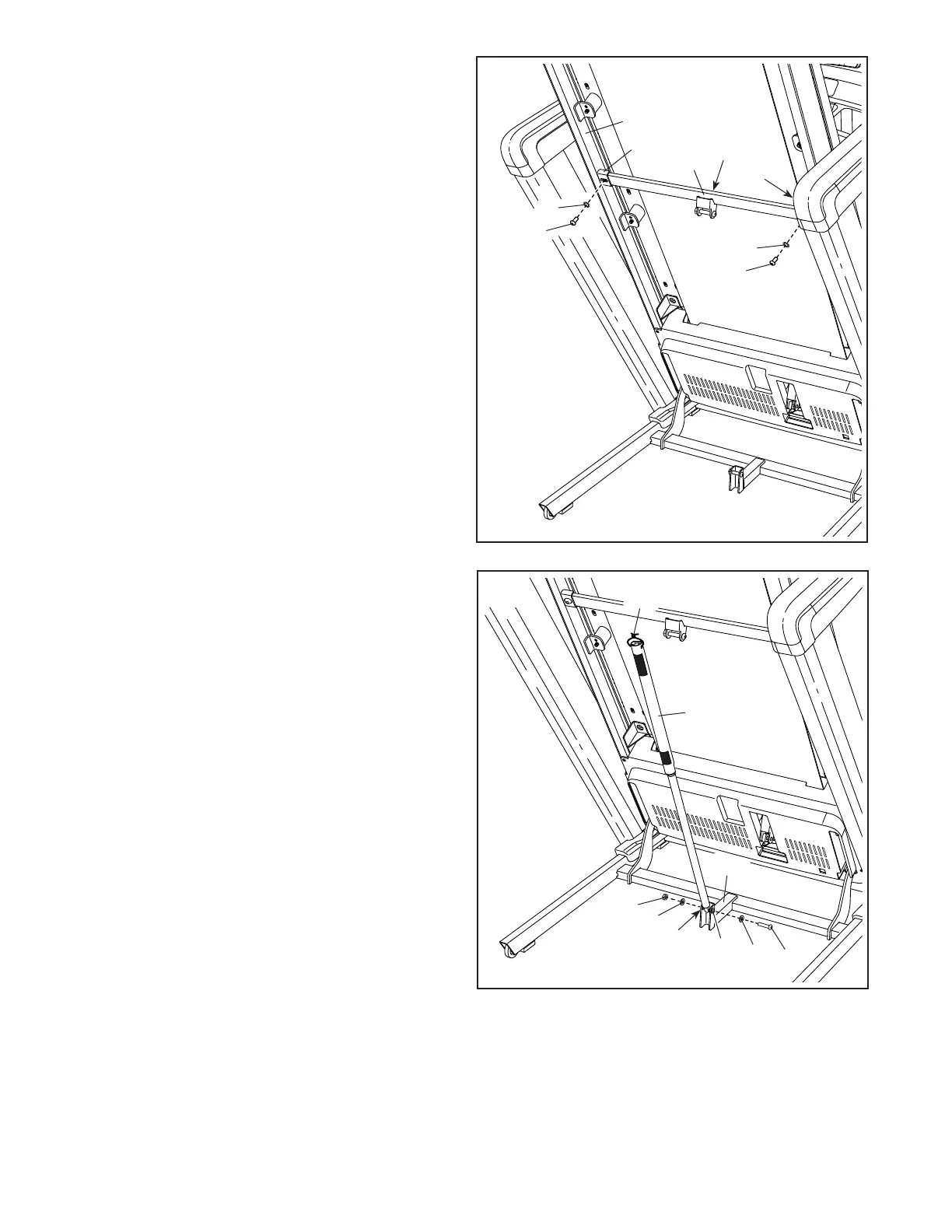

12. Raise the Frame (66) to the position shown.
IMPORTANT: Have a second person hold the
Frame until step 14 is completed.
Remove the two 5/16" x 3/4" Screws (9) from the
Latch Crossbar (62). Note: The Latch Crossbar
is not preattached to the treadmill.
Next, orient the Latch Crossbar (62) as shown.
Make sure that the “This side toward belt”
sticker (L) is facing the treadmill. Attach the
Latch Crossbar to the brackets (M) on the Frame
(66) with the two 5/16" x 3/4" Screws (9) that you
just removed and two 5/16" Star Washers (5).
66
62
L
12
M
M
5
9
13. Remove the 5/16" Nut (12), the two 3/8" Thrust
Washers (37), and the 5/16" x 1 3/4" Bolt (10)
from the bracket on the Upright Base (101).
Note: If one of the 5/16" Bushings (130)
comes out, reinsert it.
Next, orient the Storage Latch (65) as shown.
Attach the lower end of the Storage Latch (65)
to the bracket on the Upright Base (101) with
the 5/16" x 1 3/4" Bolt (10), the two 3/8" Thrust
Washers (37), and the 5/16" Nut (12).
Then, raise the Storage Latch (65) to a vertical
position, and remove the tie (N).
65
13
N
5
9
10
37
37
12
130
101
130
To Next Page
