13
10

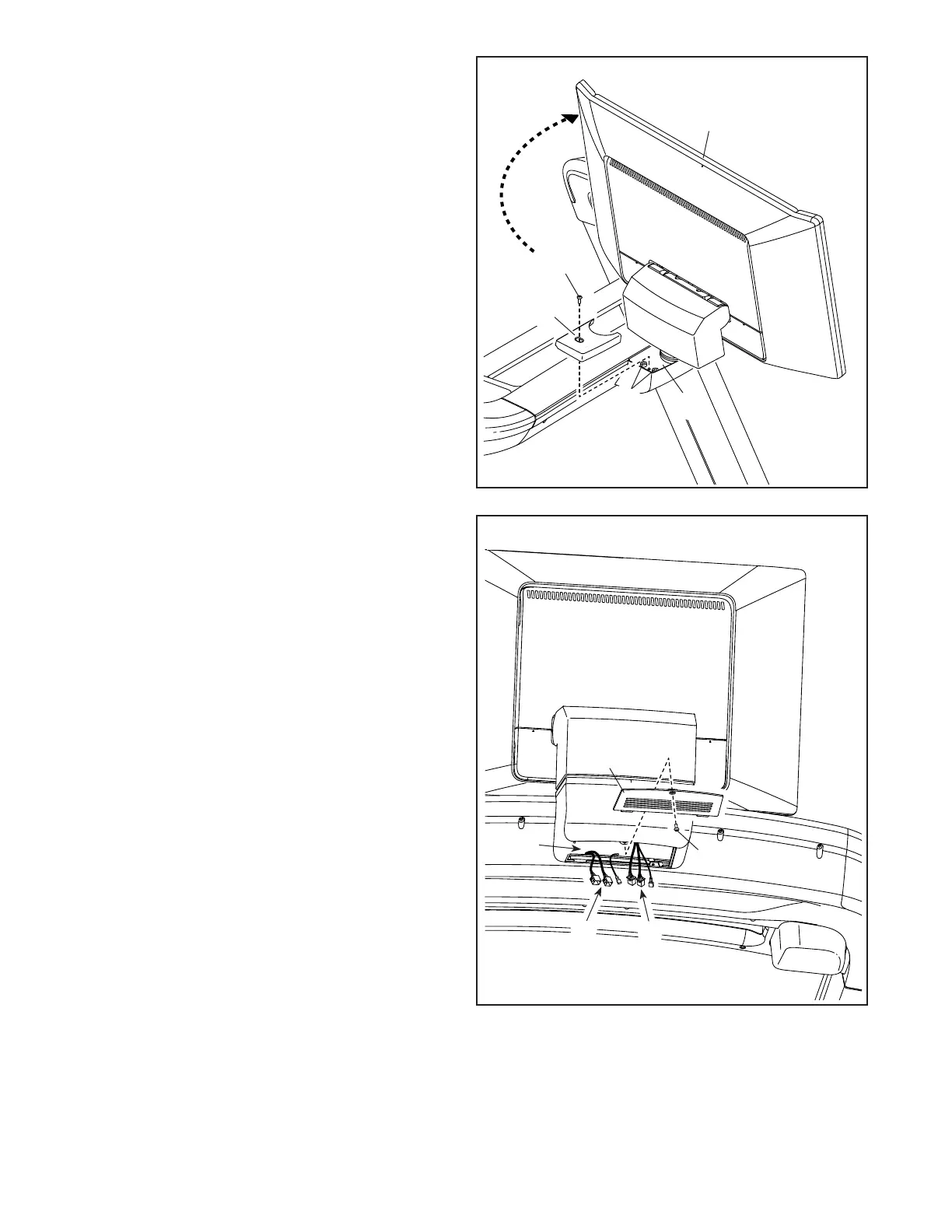

10. Rotate the console assembly (F) back to
its original position. Firmly tighten the two
M6 x 25mm Screws (6) that you attached in
step 8.
Next, identify the Right Pivot Cover (116). Attach
the Right Pivot Cover to the Console Pivot
Bracket (117) with an M4 x 20mm Screw (4); do
not overtighten the Screw.
4
117
116
F
11
118
11. Do not pinch the wires (J, K) during this step.
Connect the indicated wires (J, K). For your
treadmill to function properly, make sure to
connect the wires as described in step 2.
Next, position the wires (J, K) inside of the open-
ing in the handrail assembly (E). Then, insert
the front edge of the Access Panel (118) into the
opening in the handrail assembly, and attach the
Access Panel with a #8 x 5/8" Screw (132): do
not overtighten the Screw.
J
K
E
132
6
To Next Page
