12
8
F
E

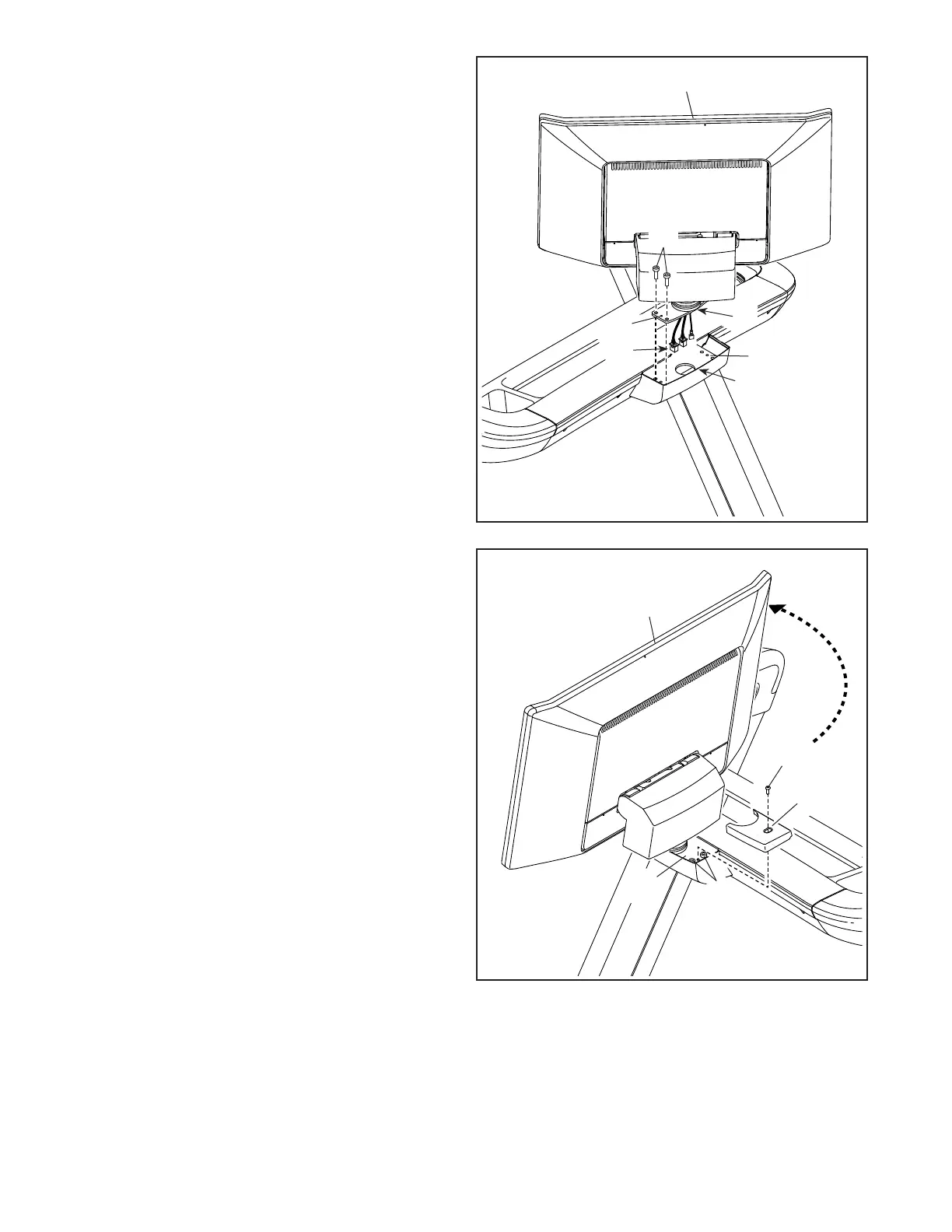

8. Do not pinch the wires (G) during this
step. Have a second person hold the console
assembly (F) near the handrail assembly (E).
Make sure that the console assembly is
properly oriented so that the curved edge (H)
of the Console Pivot Bracket (117) faces the
front (I) of the handrail assembly.
Insert the wires (G) into the round hole in the
handrail assembly (E) as you set the console
assembly (F) on the handrail assembly.
Attach the console assembly (F) with two
M6 x 25mm Screws (6); do not fully tighten the
Screws yet.
I
6
9
9. Rotate the console assembly (F) so that it
faces the opposite direction. Tighten two
M6 x 25mm Screws (6) into the Console Pivot
Bracket (117); start both Screws, and then
firmly tighten them.
Next, identify the Left Pivot Cover (115). Attach
the Left Pivot Cover to the Console Pivot Bracket
(117) with an M4 x 20mm Screw (4); do not
overtighten the Screw.
4
117
115
F
6
117
G
H
To Next Page
