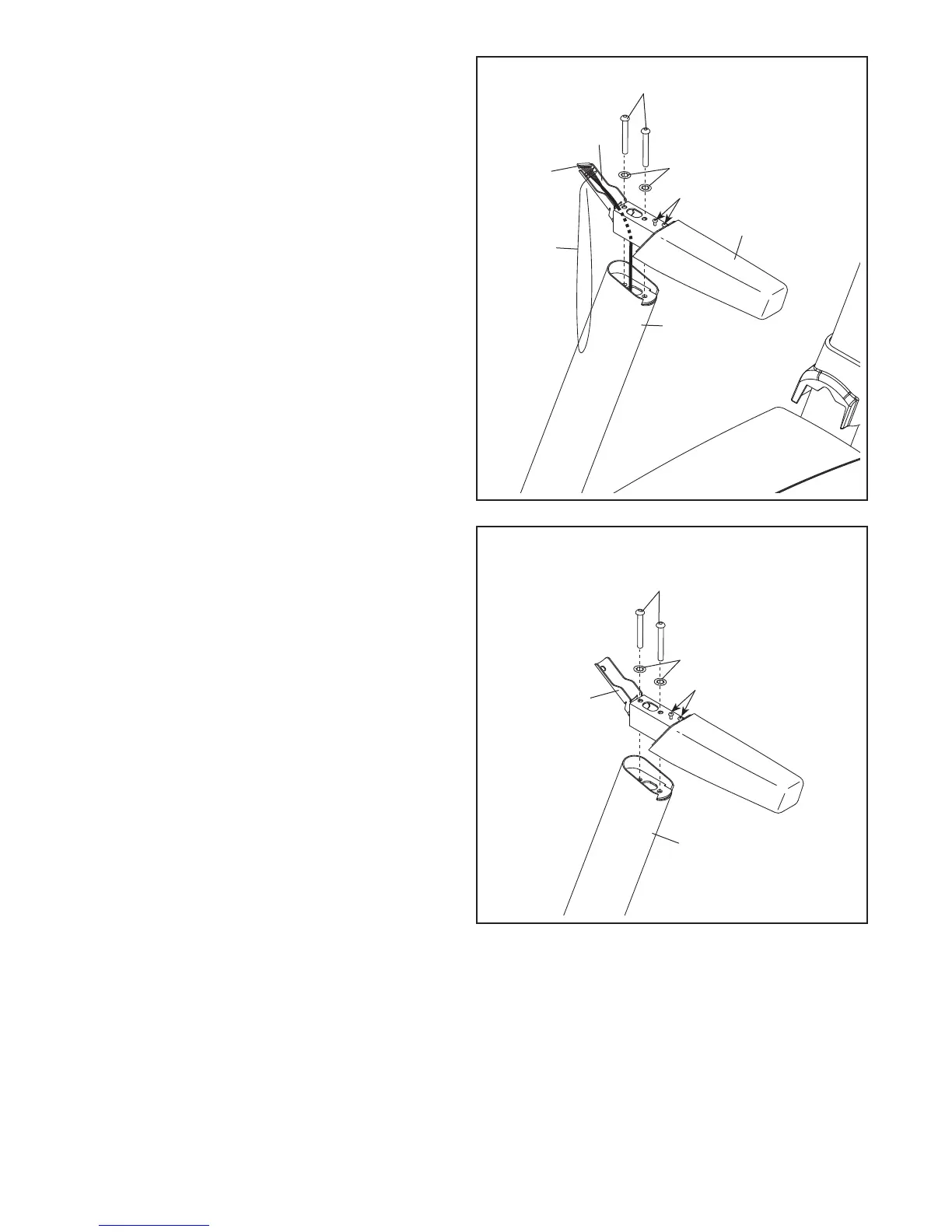

8. Identify the left handrail assembly (A). If there is
a wire in the left handrail assembly, remove and
discard it.
Hold the left handrail assembly (A) near the Left
Upright (84). Insert the wire tie on the Upright
Wire (91) into the bottom and out of the end of
the left Handrail (79) as shown. Then, pull the
Upright Wire through the Left Handrail.
Attach the left Handrail (79) to the Left Upright
(84) with two 5/16" x 2 3/4" Screws (12) and two
5/16" Star Washers (8). Make sure not to pinch
the Upright Wire (91). Start both Screws, but
do not tighten them yet.
Remove and discard the two indicated screws
(B) from the left Handrail (79).
12
8
A
84
Wire
Tie
91
8
B
9. Attach the right Handrail (79) to the Right Upright
(85) with two 5/16" x 2 3/4" Screws (12) and two
5/16" Star Washers (8). Start both Screws, but
do not tighten them yet.
Remove and discard the two indicated screws
(B) from the right Handrail (79).
9
85
79
B
12
8
79
