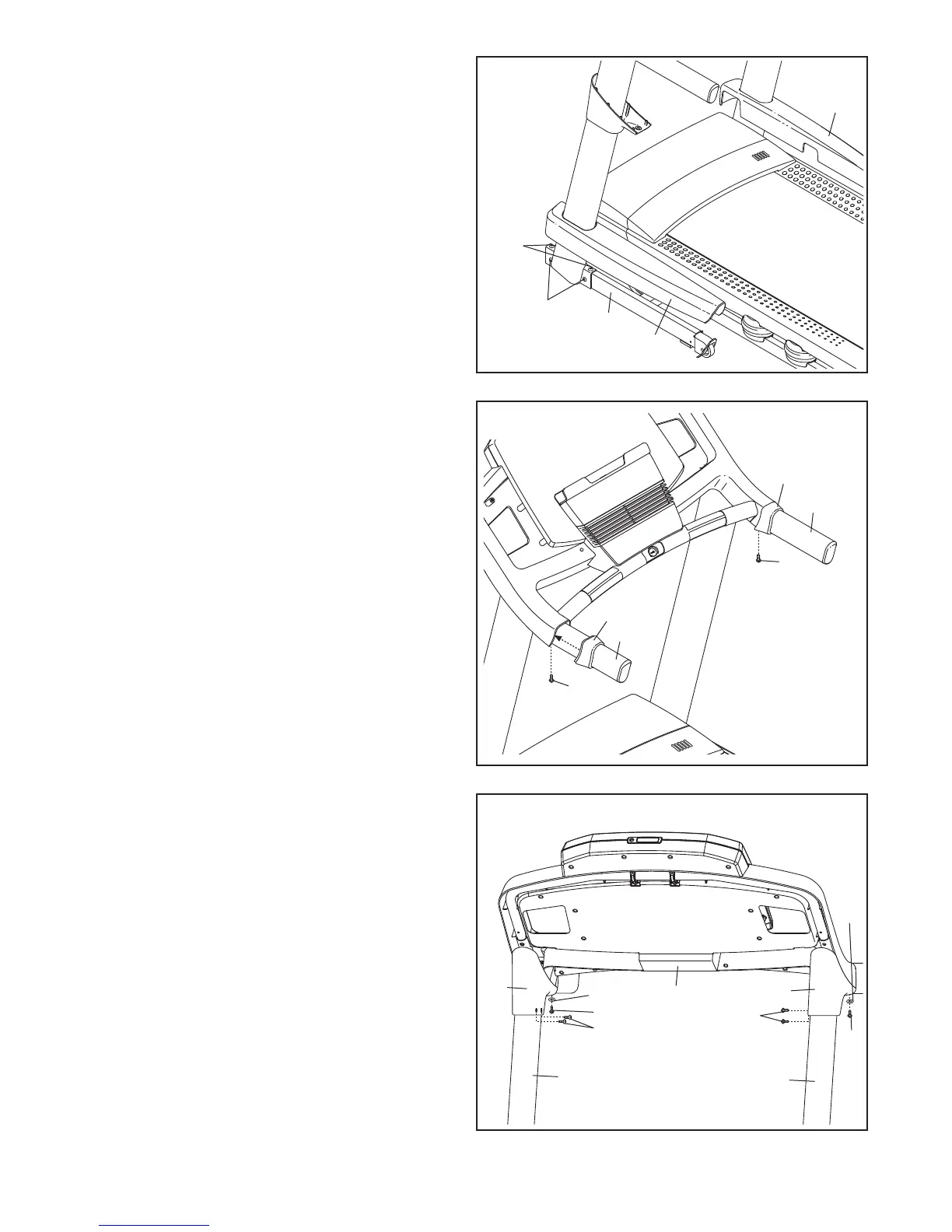

12. Firmly tighten the four 3/8" x 2 3/4" Screws (7)
and the four 3/8" x 1 1/4" Screws (8) (only one
side is shown).
Press the Left and Right Base Covers (82, 83)
onto the Base (94) until they snap into place.
12
83
8
82
94
7
13. Slide the Left Handrail Cover (85) onto the Left
Handrail (88). Slide the Right Handrail Cover
(86) onto the Right Handrail (87). Attach the
Handrail Covers with two #8 x 1/2" Screws (1).
13
85
86
1
1
87
88
14. Hold the Left Upright Cover (79) against the
console assembly. Align the holes in the Left
Upright Cover with the holes in the Left Upright
(89). Attach the Left Upright Cover with two #8
x 1/2" Screws (1), a #8 x 3/4" Screw (2), and a
1/4" Flat Washer (36) as shown.
Attach the Right Upright Cover (80) to the
Right Upright (90) in the same way.
14
89
1
Console
Assembly
79
90
36
36
80
2
1
2
