NordicTrack T 13.0 Treadmill User Manual

13

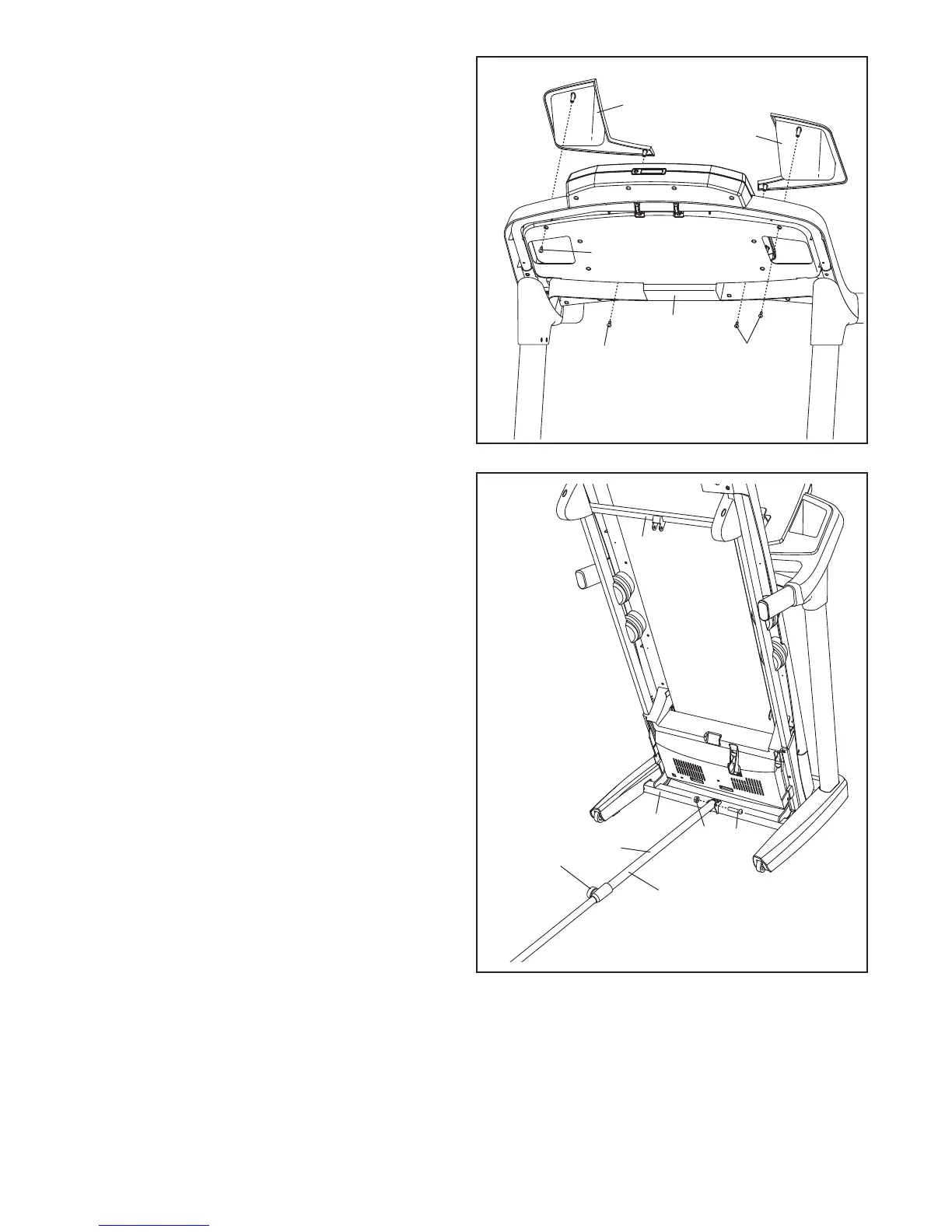

16. Next, raise the Frame (56) to the position shown.
Have a second person hold the Frame until
step 17 is completed.
Orient the Storage Latch (53) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (53) to
the Base (94) with a 3/8" x 2" Bolt (3) and a 3/8"
Nut (12).
16
53
Large
Barrel
56
Latch
Knob
12
3
94
15. Attach the Left and Right Trays (107, 108) to the
console assembly with four #8 x 1/2" Screws (1).
107
108
15
Console
Assembly
1
1
1
