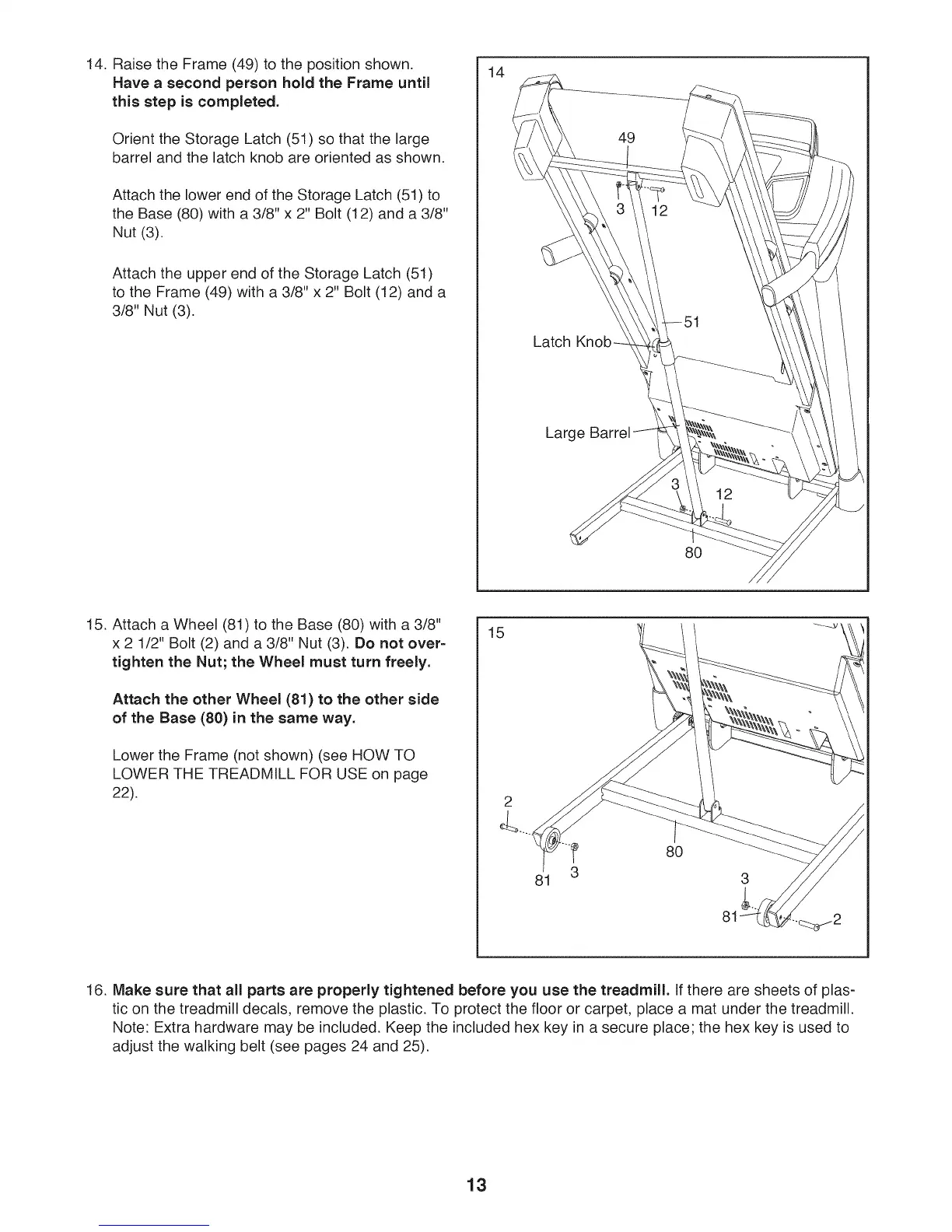

14. Raise the Frame (49) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (51) to
the Base (80) with a 3/8" x 2" Bolt (12) and a 3/8"
Nut (3).
Attach the upper end of the Storage Latch (51)
to the Frame (49) with a 3/8" x 2" Bolt (12) and a
3/8" Nut (3).
14
Latch
Large
80
15. Attach a Wheel (81) to the Base (80) with a 3/8"
x 2 1/2" Bolt (2) and a 3/8" Nut (3). Do not over-
tighten the Nut; the Wheel must turn freely.
Attach the other Wheel (81) to the other side
of the Base (80) in the same way.
Lower the Frame (not shown) (see HOW TO
LOWER THE TREADMILL FOR USE on page
22).
15
2
80
81 3 3
16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plas-
tic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used to
adjust the walking belt (see pages 24 and 25).
