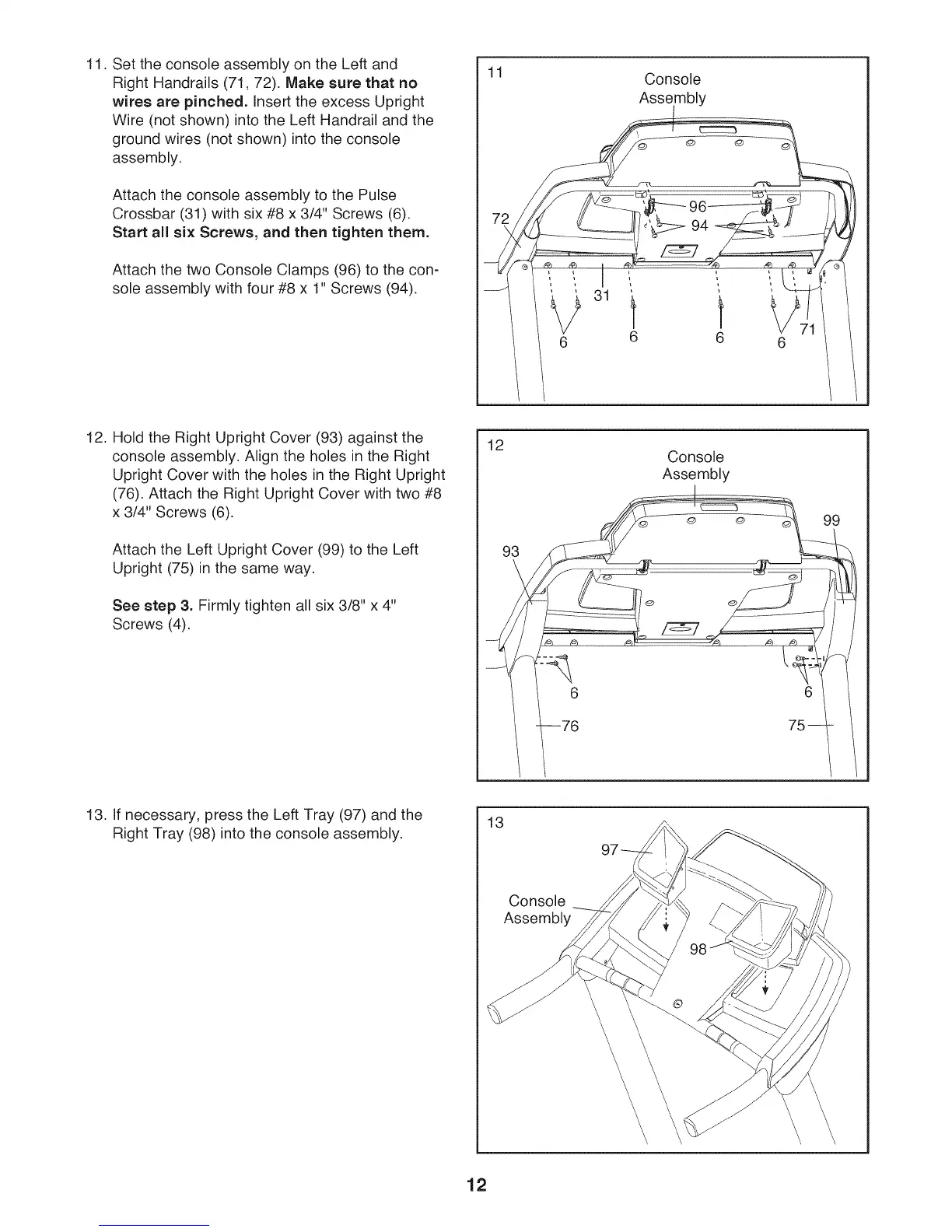

11. Set the console assembly on the Left and
Right Handrails (71, 72). Make sure that no
wires are pinched. Insert the excess Upright
Wire (not shown) into the Left Handrail and the
ground wires (not shown) into the console
assembly.
Attach the console assembly to the Pulse
Crossbar (31) with six #8 x 3/4" Screws (6).
Start all six Screws, and then tighten them.
Attach the two Console Clamps (96) to the con-
sole assembly with four #8 x 1" Screws (94).
11
31
Console
Assembly
6
6
12. Hold the Right Upright Cover (93) against the
console assembly. Align the holes in the Right
Upright Cover with the holes in the Right Upright
(76). Attach the Right Upright Cover with two #8
x 3/4" Screws (6).
Attach the Left Upright Cover (99) to the Left
Upright (75) in the same way.
See step 3. Firmly tighten all six 3/8" x 4"
Screws (4).
12
93
!
6
Console
Assembly
99
13. If necessary, press the Left Tray (97) and the
Right Tray (98) into the console assembly.
13
Console
Assembly
12
To Next Page
