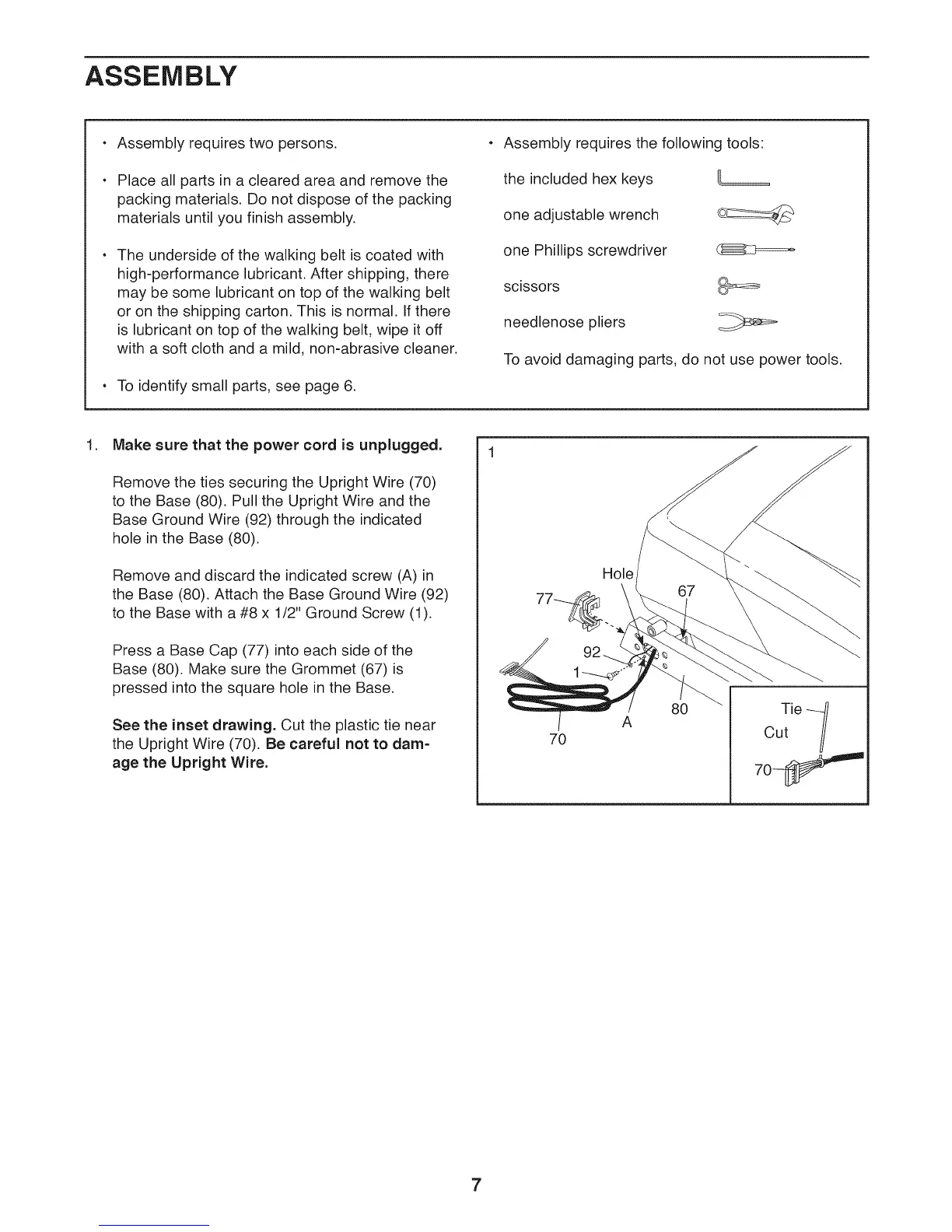

ASSEMBLY
Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish assembly.
The underside of the walking belt is coated with
high-performance lubricant. After shipping, there
may be some lubricant on top of the walking belt
or on the shipping carton. This is normal. If there
is lubricant on top of the walking belt, wipe it off
with a soft cloth and a mild, non-abrasive cleaner.
To identify small parts, see page 6.
Assembly requires the following tools:
the included hex keys
one adjustable wrench
one Phillips screwdriver
scissors
needlenose pliers
To avoid damaging parts, do not use power tools.
1. Make sure that the power cord is unplugged.
Remove the ties securing the Upright Wire (70)
to the Base (80). Pull the Upright Wire and the
Base Ground Wire (92) through the indicated
hole in the Base (80).
Remove and discard the indicated screw (A) in
the Base (80). Attach the Base Ground Wire (92)
to the Base with a #8 x 1/2" Ground Screw (1).
Press a Base Cap (77) into each side of the
Base (80). Make sure the Grommet (67) is
pressed into the square hole in the Base.
See the inset drawing. Cut the plastic tie near
the Upright Wire (70). Be careful not to dam-
age the Upright Wire.
70
Hole
A
80
7
To Next Page
