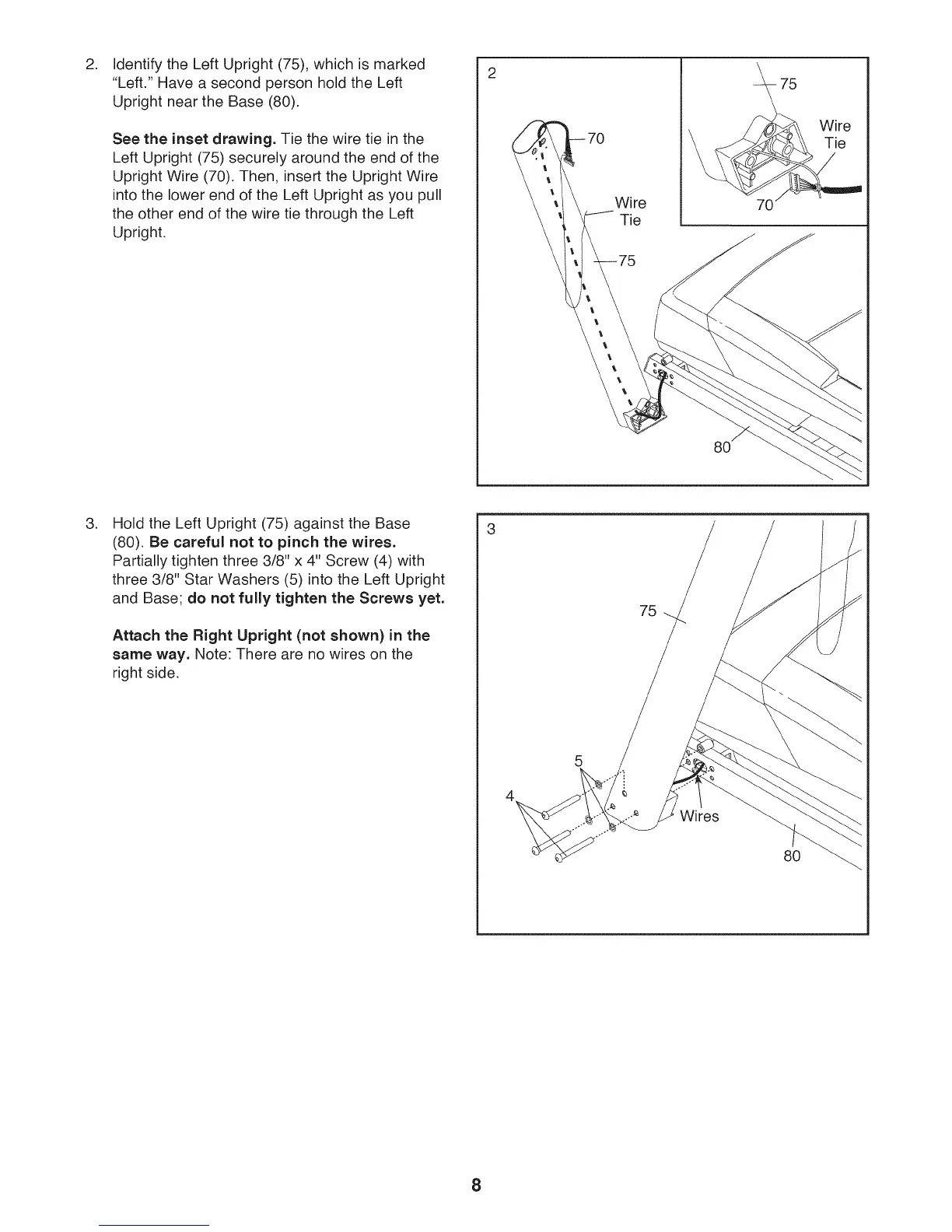

2. 2
Identify the Left Upright (75), which is marked
"Left." Have a second person hold the Left
Upright near the Base (80).
See the inset drawing. Tie the wire tie in the
Left Upright (75) securely around the end of the
Upright Wire (70). Then, insert the Upright Wire
into the lower end of the Left Upright as you pull
the other end of the wire tie through the Left
Upright.
Wire
Tie
75
Wire
.
Hold the Left Upright (75) against the Base
(80). Be careful not to pinch the wires.
Partially tighten three 3/8" x 4" Screw (4) with
three 3/8" Star Washers (5) into the Left Upright
and Base; do not fully tighten the Screws yet.
Attach the Right Upright (not shown) in the
same way. Note: There are no wires on the
right side.
75
Wires
80
8
