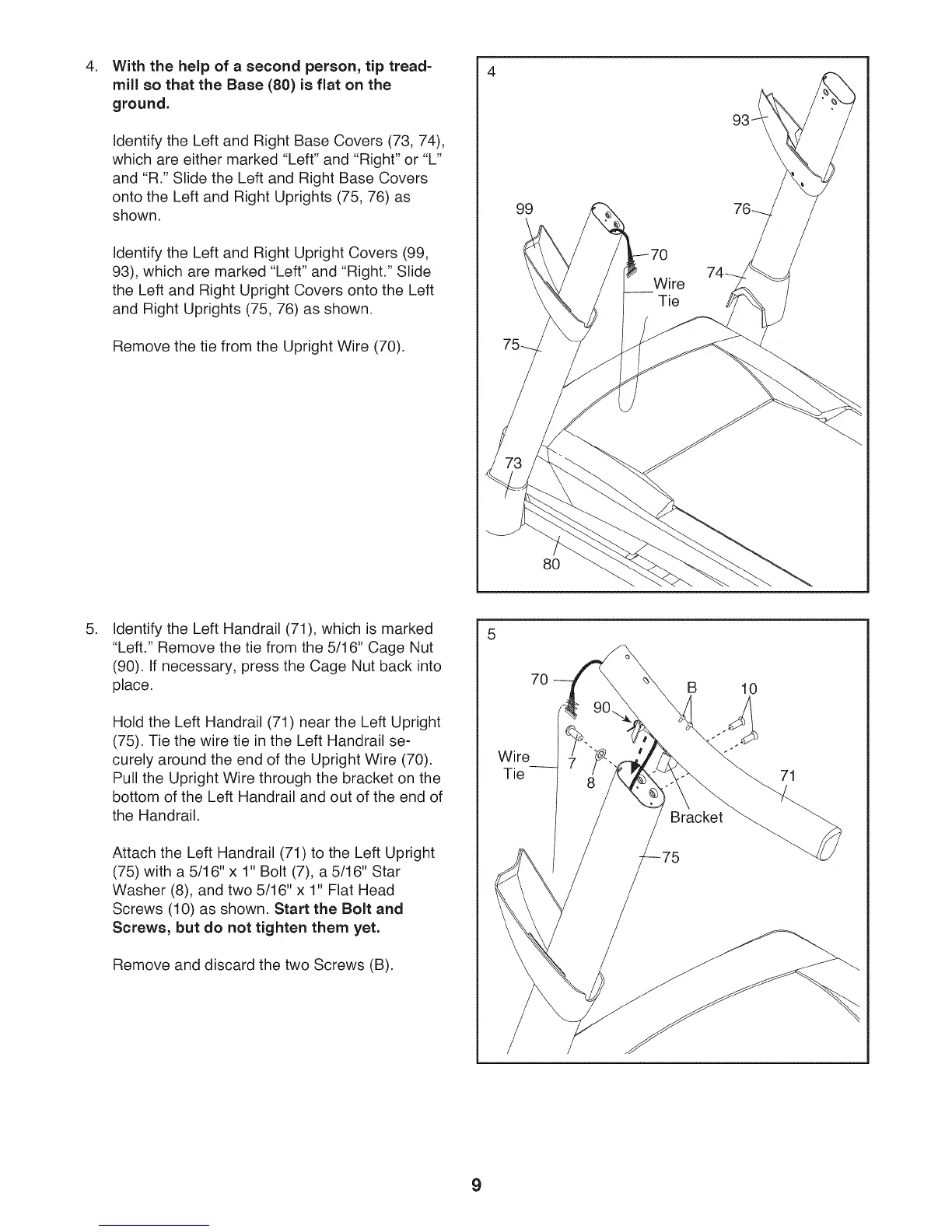

With the help of a second person, tip tread=
mill so that the Base (80) is flat on the
ground.
Identify the Left and Right Base Covers (73, 74),
which are either marked "Left" and "Right" or "L"
and "R." Slide the Left and Right Base Covers
onto the Left and Right Uprights (75, 76) as
shown.
Identify the Left and Right Upright Covers (99,
93), which are marked "Left" and "Right." Slide
the Left and Right Upright Covers onto the Left
and Right Uprights (75, 76) as shown.
Remove the tie from the Upright Wire (70).
99
80
.
Identify the Left Handrail (71), which is marked
"Left." Remove the tie from the 5/16" Cage Nut
(90). If necessary, press the Cage Nut back into
place.
Hold the Left Handrail (71) near the Left Upright
(75). Tie the wire tie in the Left Handrail se-
curely around the end of the Upright Wire (70).
Pull the Upright Wire through the bracket on the
bottom of the Left Handrail and out of the end of
the Handrail.
Attach the Left Handrail (71) to the Left Upright
(75) with a 5/16" x 1" Bolt (7), a 5/16" Star
Washer (8), and two 5/16" x 1" Flat Head
Screws (10) as shown. Start the Bolt and
Screws, but do not tighten them yet.
Remove and discard the two Screws (B).
70
Wire
Tie
B 10
71
9
To Next Page
