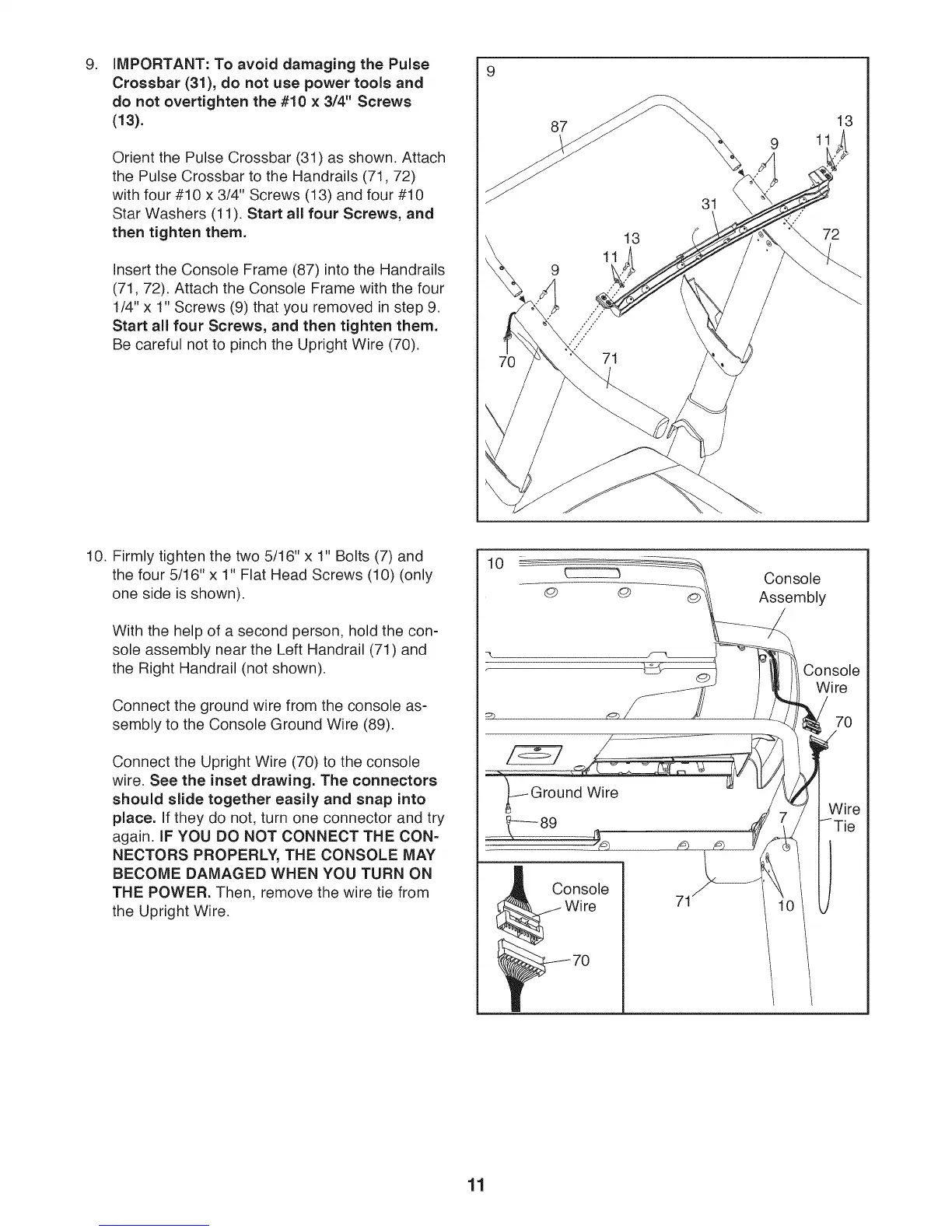

9. 9
IMPORTANT: To avoid damaging the Pulse
Crossbar (31), do not use power tools and
do not overtighten the #10 x 3/4" Screws
(13).
Orient the Pulse Crossbar (31) as shown. Attach
the Pulse Crossbar to the Handrails (71, 72)
with four #10 x 3/4" Screws (13) and four #10
Star Washers (11). Start all four Screws, and
then tighten them.
Insert the Console Frame (87) into the Handrails
(71, 72). Attach the Console Frame with the four
1/4" x 1" Screws (9) that you removed in step 9.
Start all four Screws, and then tighten them.
Be careful not to pinch the Upright Wire (70).
87
9
13
1
10. Firmly tighten the two 5/16" x 1" Bolts (7) and
the four 5/16" x 1" Flat Head Screws (10) (only
one side is shown).
With the help of a second person, hold the con-
sole assembly near the Left Handrail (71) and
the Right Handrail (not shown).
Connect the ground wire from the console as-
sembly to the Console Ground Wire (89).
Connect the Upright Wire (70) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
Console
Assembly
Wire
Console
Wire
71
Console
Wire
70
_/ire
Tie
11
To Next Page
